Section 3: Functions and features Series 2280 Precision DC Power Supply Reference Manual
3-48 077085503 / March 2019
Sweep mode triggering
In sweep mode, the instrument generates a measure complete signal after each list cycle. You can
detect this signal in digital I/O line 2. For details, refer to Digital I/O (on page 3-19).

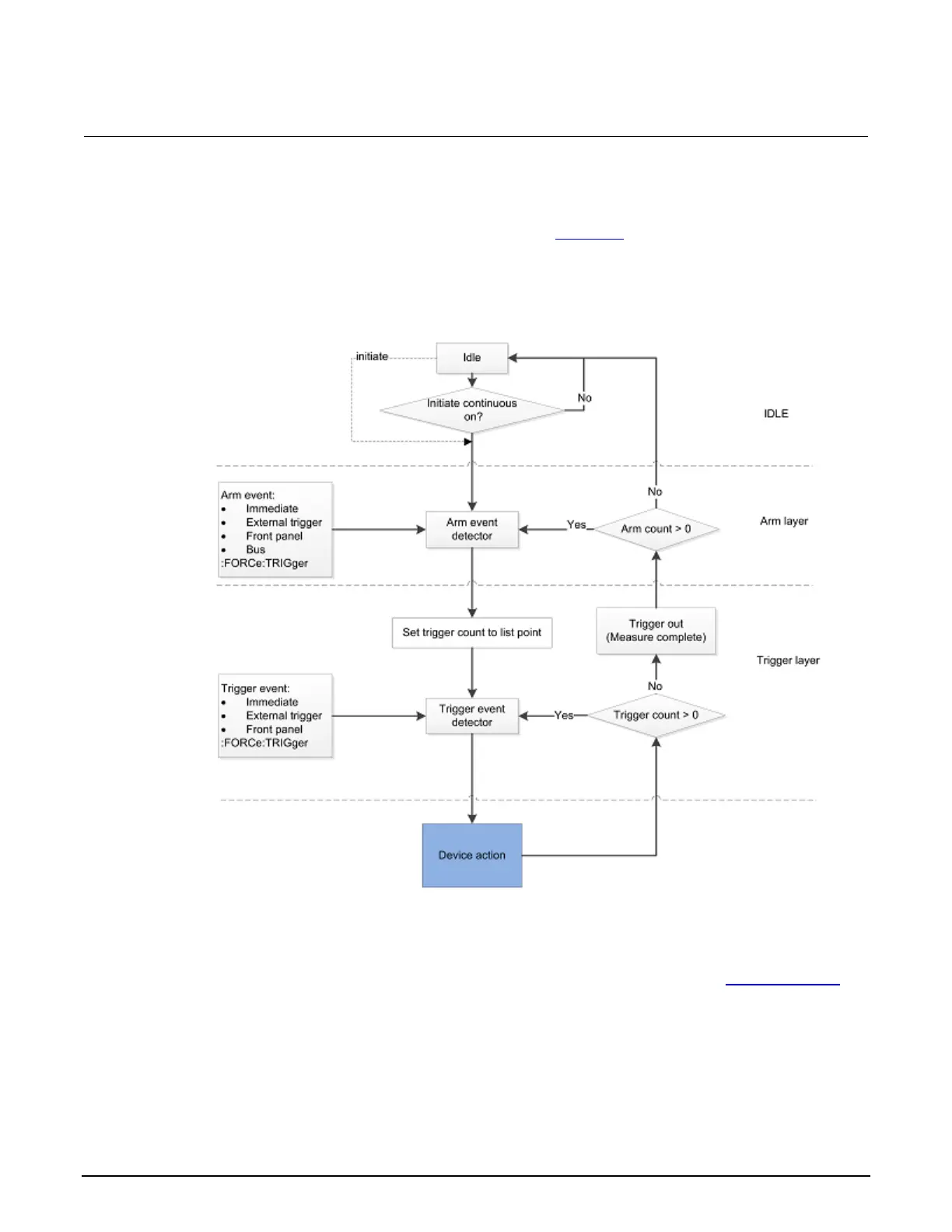

Figure 77: Sweep mode triggering
As shown in the previous figure, the device action can be any mode described in List running time (on
page 3-44). The measurement time is set accordingly.
