Models 2500 and 2502 User’s Manual Remote Operations 13-5
To avoid possible mechanical damage, stack no more than three connectors on any one
unit.
NOTE To minimize interference caused by electromagnetic radiation, use only shielded
IEEE-488 cables. Available shielded cables from Keithley are Models 7007-1
and 7007-2.
To connect the Model 2500 to the IEEE-488 bus, follow these steps:
1. Line up the cable connector with the connector located on the rear panel. The connec-
tor is designed so it will fit only one way. Figure 13-3 shows the location of the IEEE-
488 connector.
2. Tighten the screws securely, making sure not to overtighten them.

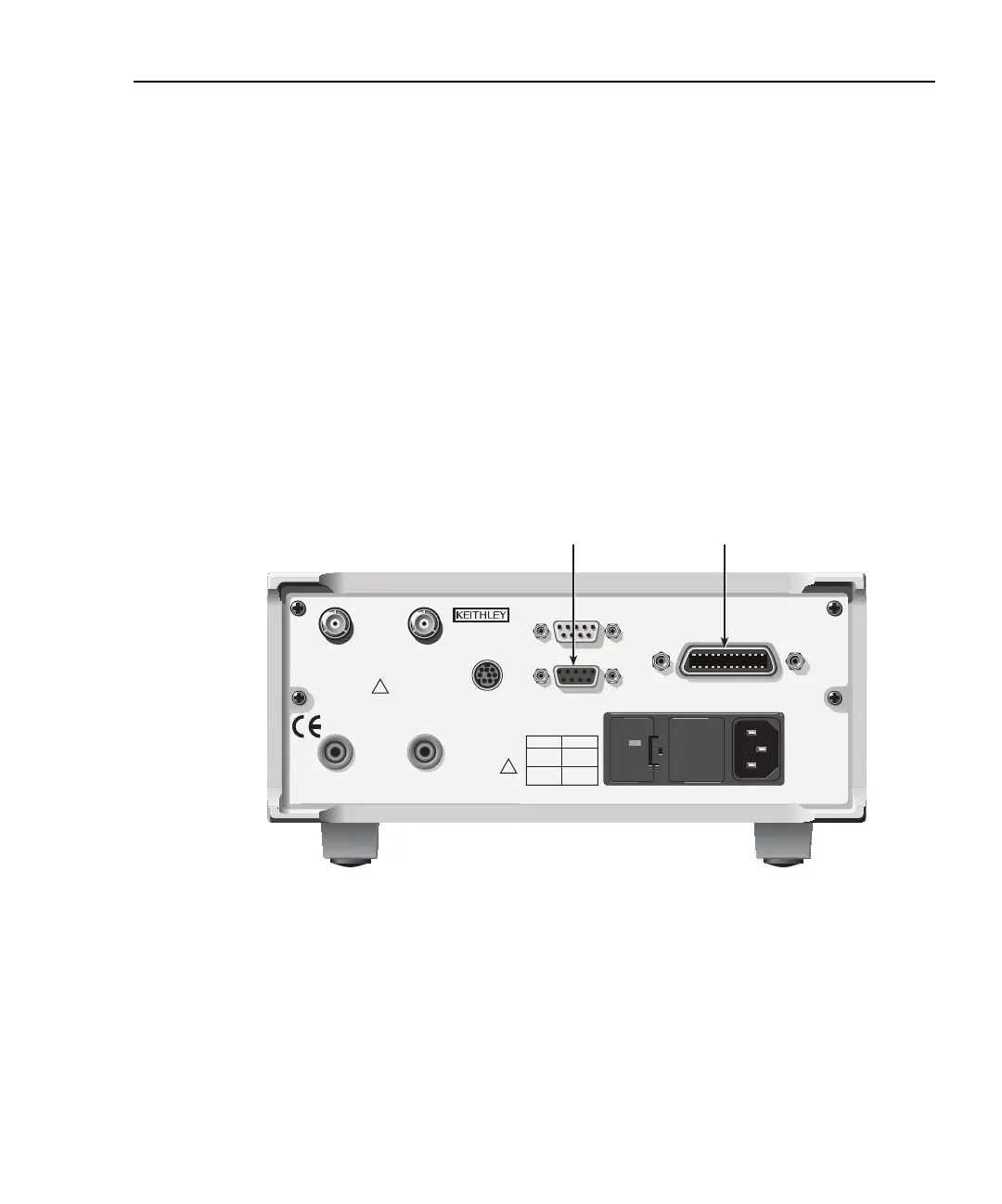

Figure 13-3
IEEE-488 and RS-232 connector location
3. Connect any additional connectors from other instruments as required for your
application.
4. Make sure the other end of the cable is properly connected to the controller. Most con-
trollers are equipped with an IEEE-488 style connector, but a few may require a differ-
ent type of connecting cable. See your controller's instruction manual for information
about properly connecting to the IEEE-488 bus.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS, SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE FUSE WITH SAME TYPE AND RATING.
120
LINE RATING
50, 60Hz
60 VA MAX
FUSE LINE
630 mAT
(SB)
315 mAT
(SB)
100 VAC
120 VAC
220 VAC
240 VAC
CAT I
MADE IN
U.S.A.
DIGITAL I/O
RS-232
TRIGGER LINK
INPUT
CHANNEL 1
INPUT
CHANNEL 2
VOLTAGE SOURCE
OUTPUT CHANNEL 1
VOLTAGE SOURCE
OUTPUT CHANNEL 2
RATINGS MAX
100V @ 20mA
COMMON
MODE
200V
RATINGS MAX
100V @ 20mA
!
!
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
RS-232
Connector
IEEE-488
Connector
Model 2500
