14-16 Status Structure Models 2500 and 2502 User’s Manual
Questionable event register
The used bits of the questionable event register (Figure 14-7) are described as follows:
• Bits B0 through B7 — Not used.
• Bit B8, Calibration Summary (Cal) — Set bit indicates that an invalid calibration
constant was detected during the power-up sequence. This error will clear after suc-
cessful calibration of the instrument.
• Bits B9 through B13 — Not used.
• Bit B14, Command Warning (Warn) — Set bit indicates that a signal oriented mea-
surement command parameter has been ignored.
• Bit B15 — Not used.

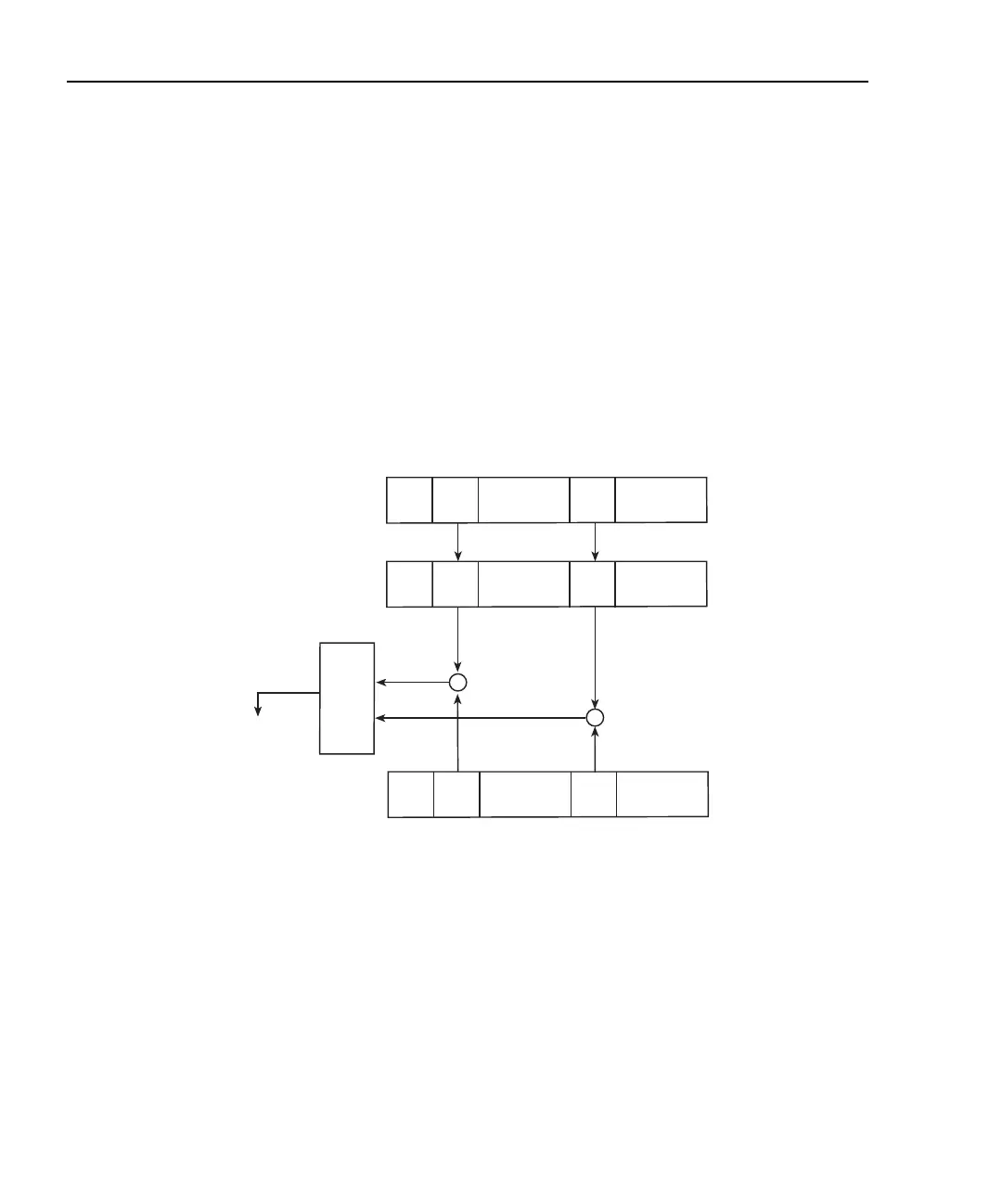

Figure 14-7
Questionable event status
Questionable Event
Enable Register
&
&
OR
To QSB of Status
Byte Register
(Figure 14-3)
Warn = Command Warning
Cal = Calibration Summary
&= Logical AND
OR = Logical OR
—
(B7 - B0)
CAL
(B8)
—
(B13 - B9)
—
(B15)
Warn
(B14)
Questionable
Condition Register
Questionable
Event Register
—
(B7 - B0)
CAL
(B8)
—
(B13 - B9)
—
(B15)
Warn
(B14)
—
(B7 - B0)
CAL
(B8)
—
(B13 - B9)
—
(B15)
Warn
(B14)
stat:ques:cond?
stat:ques?
stat:ques:enab <NRf>
stat:ques:enab?
