1-6 Getting Started Model 2500 and 2502 User’s Manual
Front and rear panel familiarization
Front panel summary

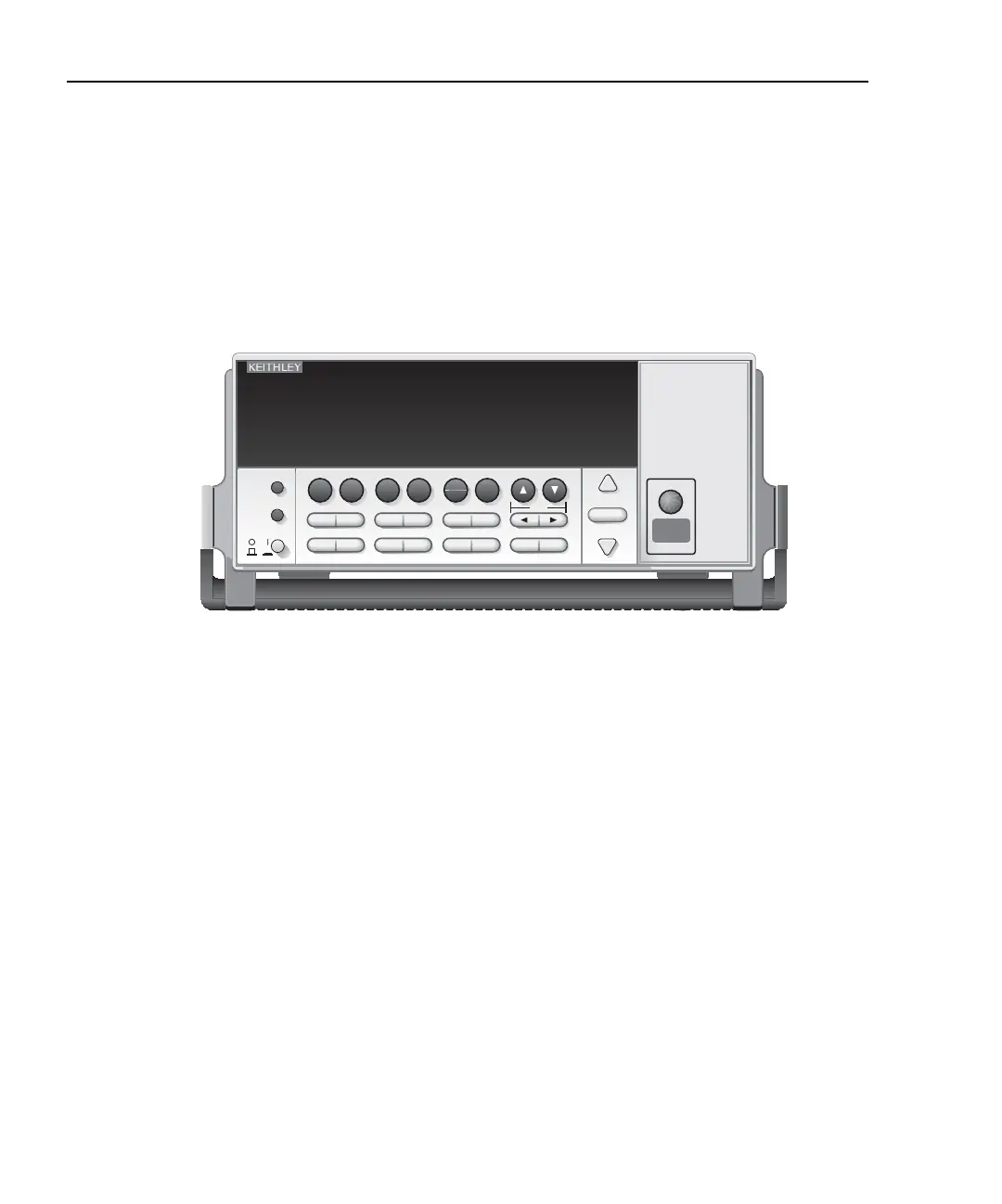

The front panel of the Model 2500 is shown in Figure 1-1.
Figure 1-1
Front panel
Measurement function keys:
MSR1 Measure channel 1.
MSR2 Measure channel 2.
DELTA Difference function.
RATIO Ratio function.
Voltage bias source function keys:
SRC1 Channel 1 voltage bias source.
SRC2 Channel 2 voltage bias source.
Range keys:
AUTO Enable/disable auto-range.
 Increase manual range.
 Decrease manual range.
EDIT keys:
 Increase value.
 Decrease value.
 Move cursor left.
 Move cursor right.
Model 2500
2500 DUAL PHOTODIODE METER
OUTPUT
TOGGLE
POWER
DISPLAY
ON/OFF
CHANNEL
SELECT
RANGE
AUTO
RANGE
FILTER
LIMIT
RATIO SRC1 SRC2
STORE RECALL
DELTA
LOCAL
REL
MSR1
DIGITS SPEED
MSR2
EDIT
EXIT ENTER
CONFIG
MENU
TRIG
SWEEP
0
1
67
23
8
9
45
+/- 0000
