1-8 Getting Started Model 2500 and 2502 User’s Manual
Rear panel summary
The rear panel of the Model 2500 is shown in Figure 1-2 and the rear panel of the
Model 2502 is shown in Figure 1-3.

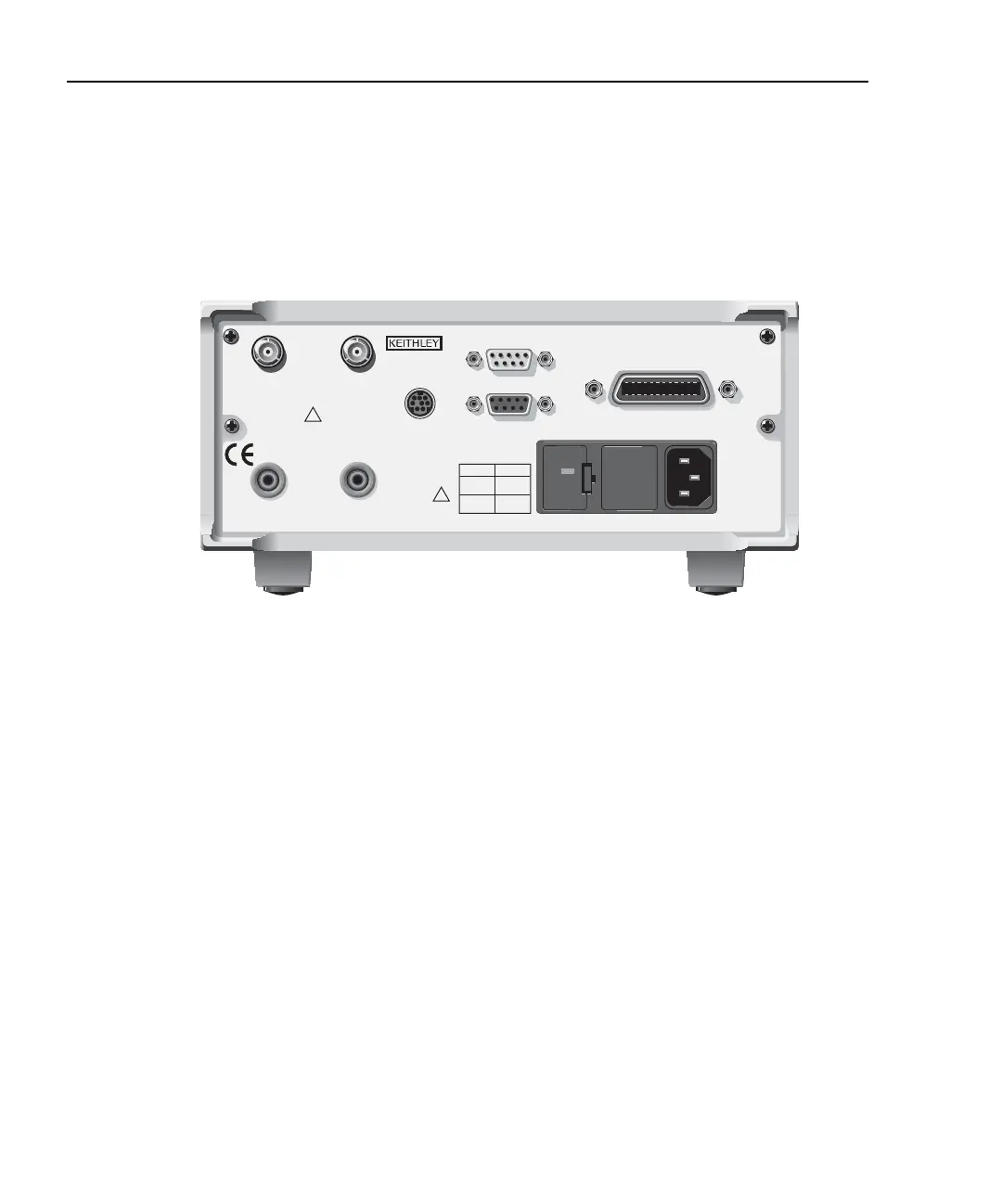

Figure 1-2
Model 2500 rear panel
INPUT connectors:
INPUT CHANNEL 1 Use to measure on channel 1.
INPUT CHANNEL 2 Use to measure on channel 2.
Triax connector terminals: Center conductor – Input HI.
Inner shell – Floating input/output common.
Outer shell – Chassis ground.
VOLTAGE SOURCE connectors:
OUTPUT CHANNEL 1 Use to output voltage bias on channel 1.
OUTPUT CHANNEL 2 Use to output voltage bias on channel 2.
WARNING Maximum common-mode voltage (voltage between INPUT common
and chassis ground) is 200V. Exceeding this value may result in a shock
hazard.
CAUTION Maximum INPUT and OUTPUT connector rating is 100V @ 20mA.
Exceeding these values may result in instrument damage.
Digital input/output port:
DIGITAL I/O Male DB-9 connector for digital output lines, output enable line, and
component handler signals.
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS, SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE FUSE WITH SAME TYPE AND RATING.
120
LINE RATING
50, 60Hz
60 VA MAX
FUSE LINE
630 mAT
(SB)
315 mAT
(SB)
100 VAC
120 VAC
220 VAC
240 VAC
CAT I
MADE IN
U.S.A.
DIGITAL I/O
RS-232
TRIGGER LINK
INPUT
CHANNEL 1
INPUT
CHANNEL 2
VOLTAGE SOURCE
OUTPUT CHANNEL 1
VOLTAGE SOURCE
OUTPUT CHANNEL 2
RATINGS MAX
100V @ 20mA
COMMON
MODE
200V
RATINGS MAX
100V @ 20mA
!
!
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
Model 2500
