2-2 Connections Model 2500 and 2502 User’s Manual
Connection precautions
WARNING Maximum common-mode voltage (voltage between INPUT analog
common and chassis ground) is 200V. Exceeding this value may result
in a shock hazard.
When making connections, do not leave any exposed connections. Be
sure that all external circuits are properly insulated.
CAUTION Maximum INPUT and OUTPUT connector rating is 100V @ 20mA.
Exceeding these values may result in instrument damage.
INPUT and OUTPUT connectors
Figure 2-1 shows the location of the INPUT and OUTPUT connectors on the rear panel.
Each of these connectors has the following function:
• INPUT CHANNEL 1: A 3-lug triax connector for direct current input from the photo-
diode or other DUT to channel 1.
• INPUT CHANNEL 2: A 3-lug triax connector for direct current input from the photo-
diode or other DUT to channel 2.
•VOLTAGE SOURCE CHANNEL 1 OUTPUT: A safety banana jack used to apply the
channel 1 HI voltage bias source signal to the photodiode or other DUT.
•VOLTAGE SOURCE CHANNEL 2 OUTPUT: A safety banana jack used to apply the
channel 2 HI voltage bias source signal to the photodiode or other DUT.

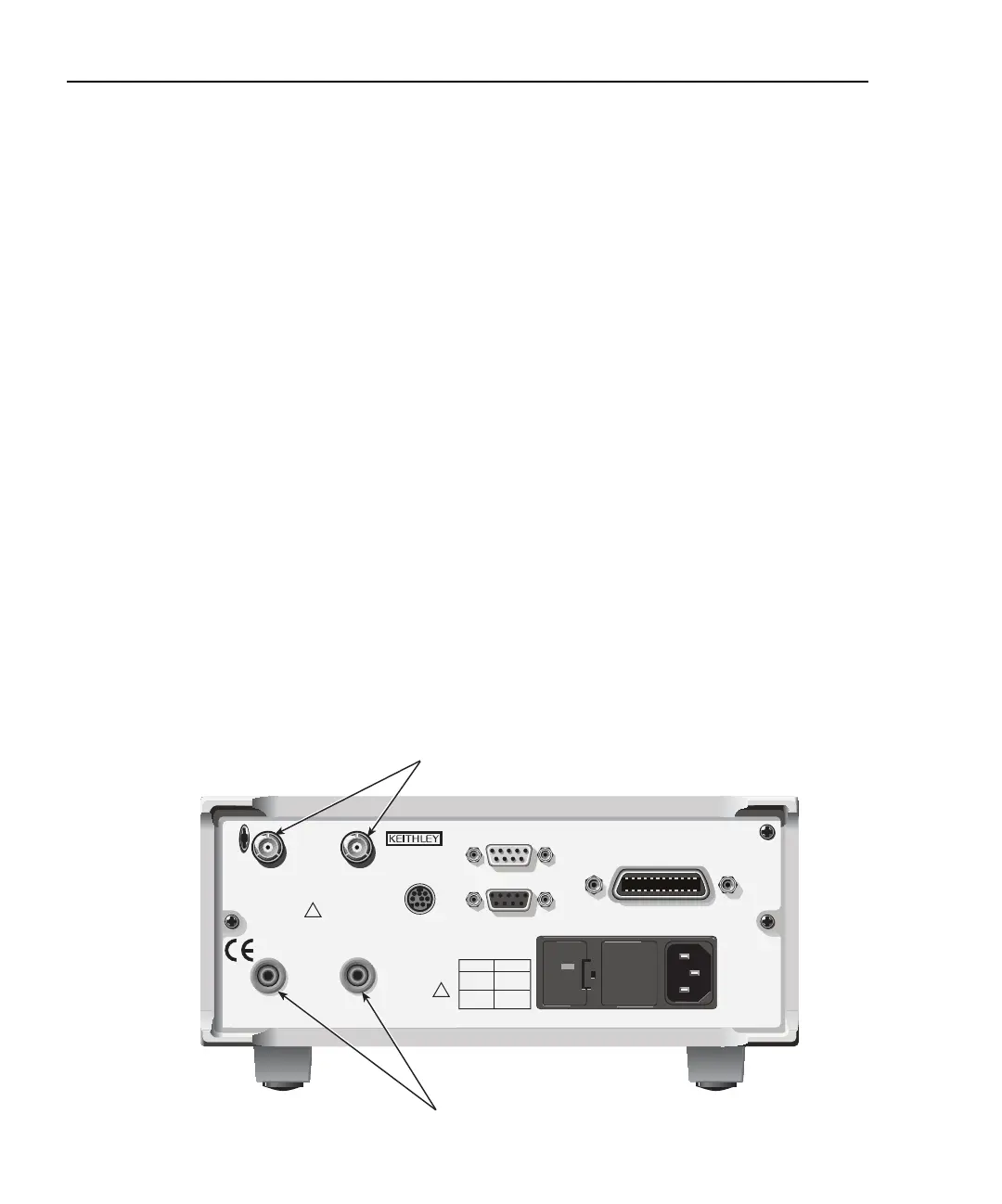

Figure 2-1
Model 2500 rear panel showing INPUT and OUTPUT connectors
WARNING: NO INTERNAL OPERATOR SERVICABLE PARTS, SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE FUSE WITH SAME TYPE AND RATING.
120
LINE RATING
50, 60Hz
60 VA MAX
FUSE LINE
630 mAT
(SB)
315 mAT
(SB)
100 VAC
120 VAC
220 VAC
240 VAC
CAT I
MADE IN
U.S.A.
DIGITAL I/O
RS-232
TRIGGER LINK
INPUT
CHANNEL 1
INPUT
CHANNEL 2
VOLTAGE SOURCE
OUTPUT CHANNEL 1
VOLTAGE SOURCE
OUTPUT CHANNEL 2
RATINGS MAX
100V @ 20mA
COMMON
MODE
200V
RATINGS MAX
100V @ 20mA
!
!
IEEE-488
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
Model 2500
INPUT Connectors
OUTPUT Connectors
