Questionable event register
The used bits of the Questionable Event Register (Figure 7-7) are described as follows:
• Bits B0 through B7 — Not used.
• Bit B8, Calibration Summary (Cal) — Set bit indicates that an invalid calibration
constant was detected during the power-up sequence. This error will clear after
successful calibration of the instrument.
• Bits B9 through B13 — Not used.
• Bit B14, Command Warning (Warn) — Set bit indicates that a Signal Oriented
Measurement Command parameter has been ignored.
• Bit B15 — Always zero.

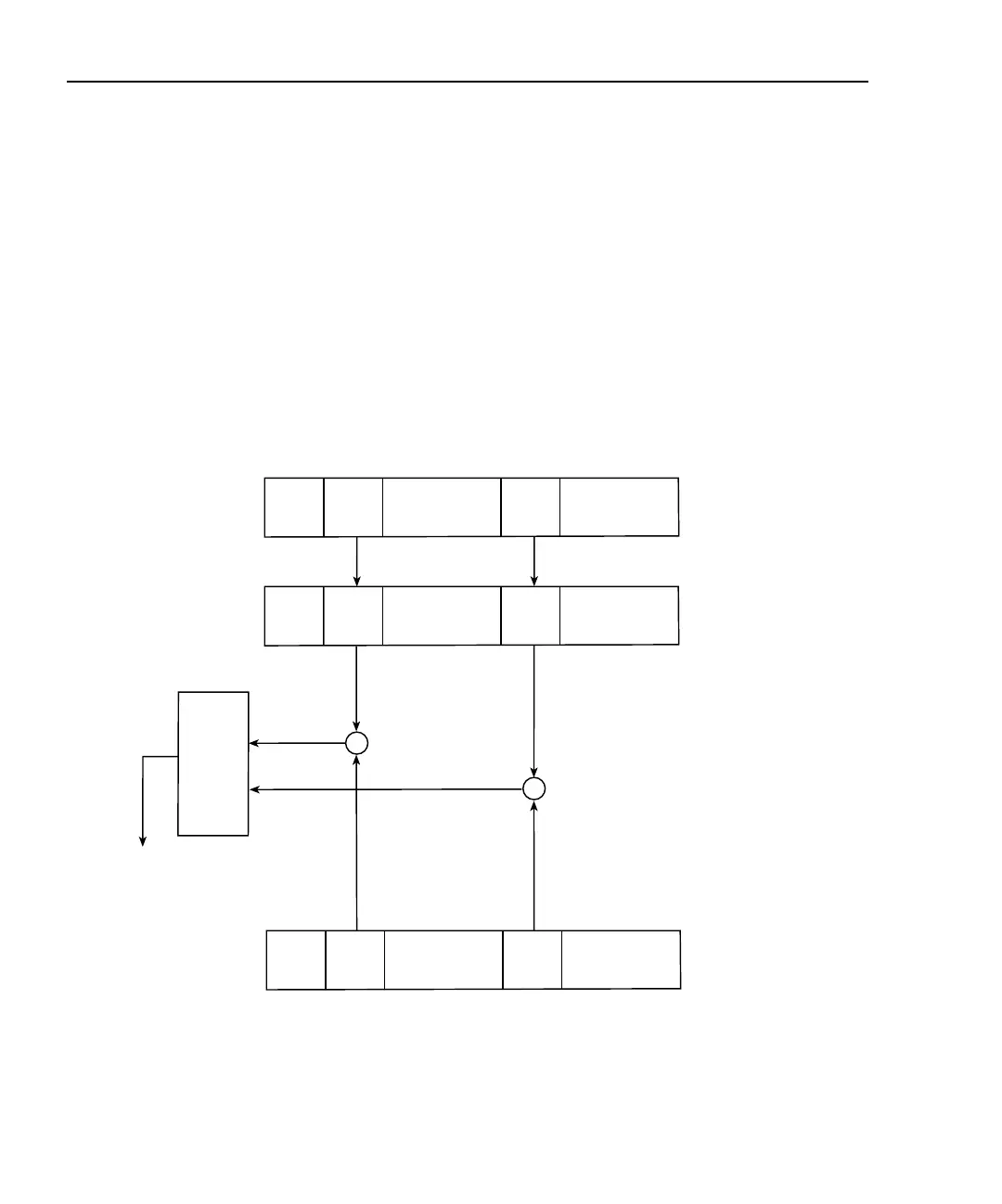

Figure 7-7
Questionable event status
Questionable Event
Enable Register
&
&
OR
To QSB of Status Byte
Register.
(See Figure 7-1.)
Warn = Command Warning
Cal = Calibration Summary
& = Logical AND
OR = Logical OR
—
(B7 - B0)
CAL
(B8)
—
(B13 - B9)
—
(B15)
Warn
(B14)
Questionable Condition
Register
Questionable
Event Register
—
(B7 - B0)
CAL
(B8)
—
(B13 - B9)
—
(B15)
Warn
(B14)
—
(B7 - B0)
CAL
(B8)
—
(B13 - B9)
—
(B15)
Warn
(B14)
:stat:ques:cond?
:stat:ques?
:
stat:ques:enab<NRf>
stat:ques:enab?
