Models 2510 and 2510-AT User’s Manual Getting Started 1-5

Front and rear panel familiarization

Front panel summary

The front panel of the Model 2510 is shown in Figure 1-1. The following abbreviated

information should be reviewed before operating the instrument. See Section 3 for more

detailed information.

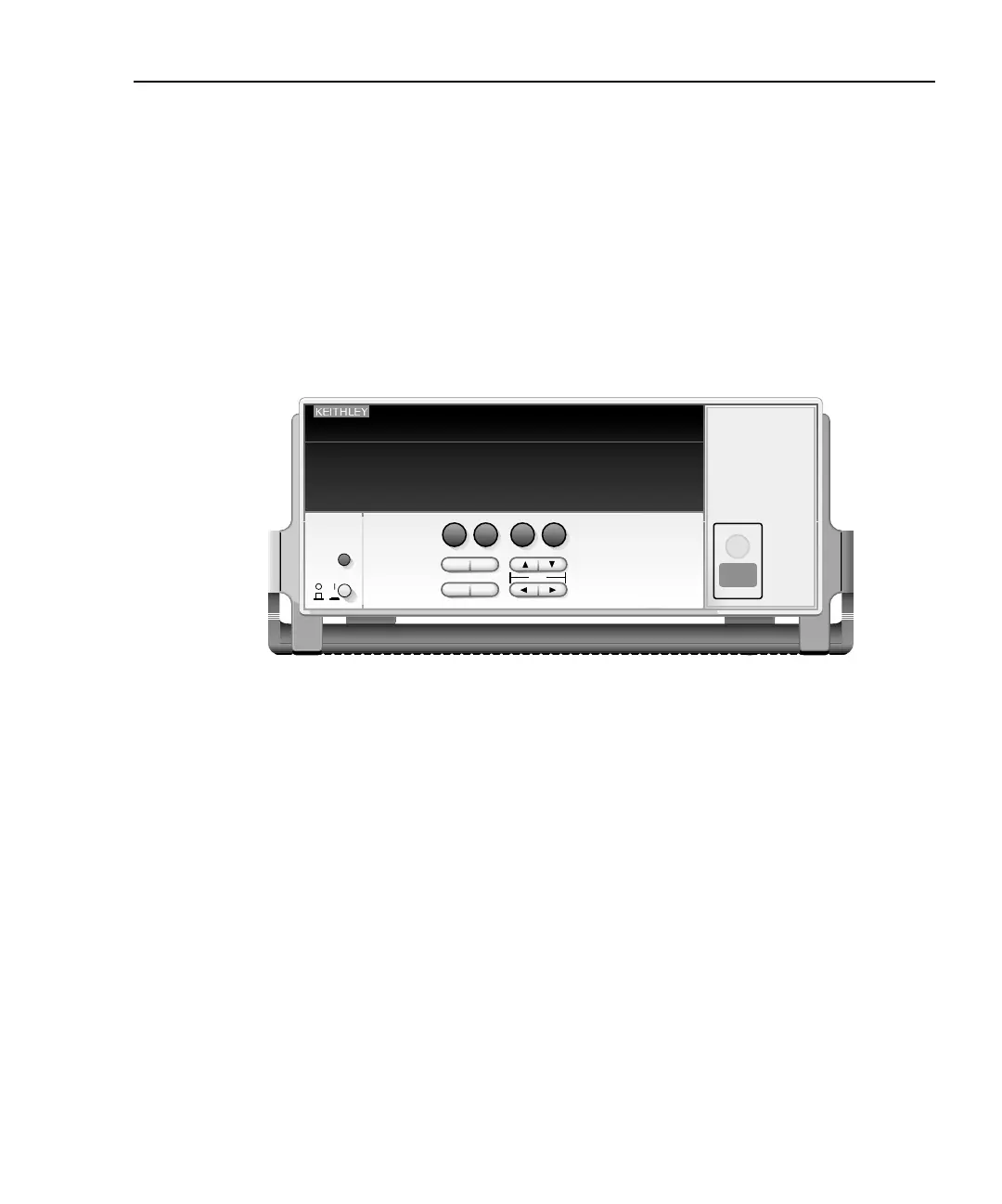

Figure 1-1

Model 2510 front panel

Function keys:

T Temperature function.

V Voltage function.

Current function.

R Resistance function.

EDIT keys:



and



Increase/decrease displayed value, scroll through menu.



and



Move display cursor left or right.

Operation keys:

DISPLAY TOGGLE/LOCAL Toggle displayed values, cancel remote operation, restore front panel

controls.

CONFIG Press CONFIG and then T, V, I, R, EDIT or OUTPUT key to conﬁgure

function.

MENU Access and conﬁgure Main Menu selections.

EXIT Cancel selection or back out of menu structures.

ENTER Accept selection or value.

2510 TEC SourceMeter

OUTPUT

TOGGLE/

LOCAL

POWER

DISPLAY

ON/OFF

CONFIG

EXIT ENTER

EDIT
