The following figure shows the trigger setup for this example.

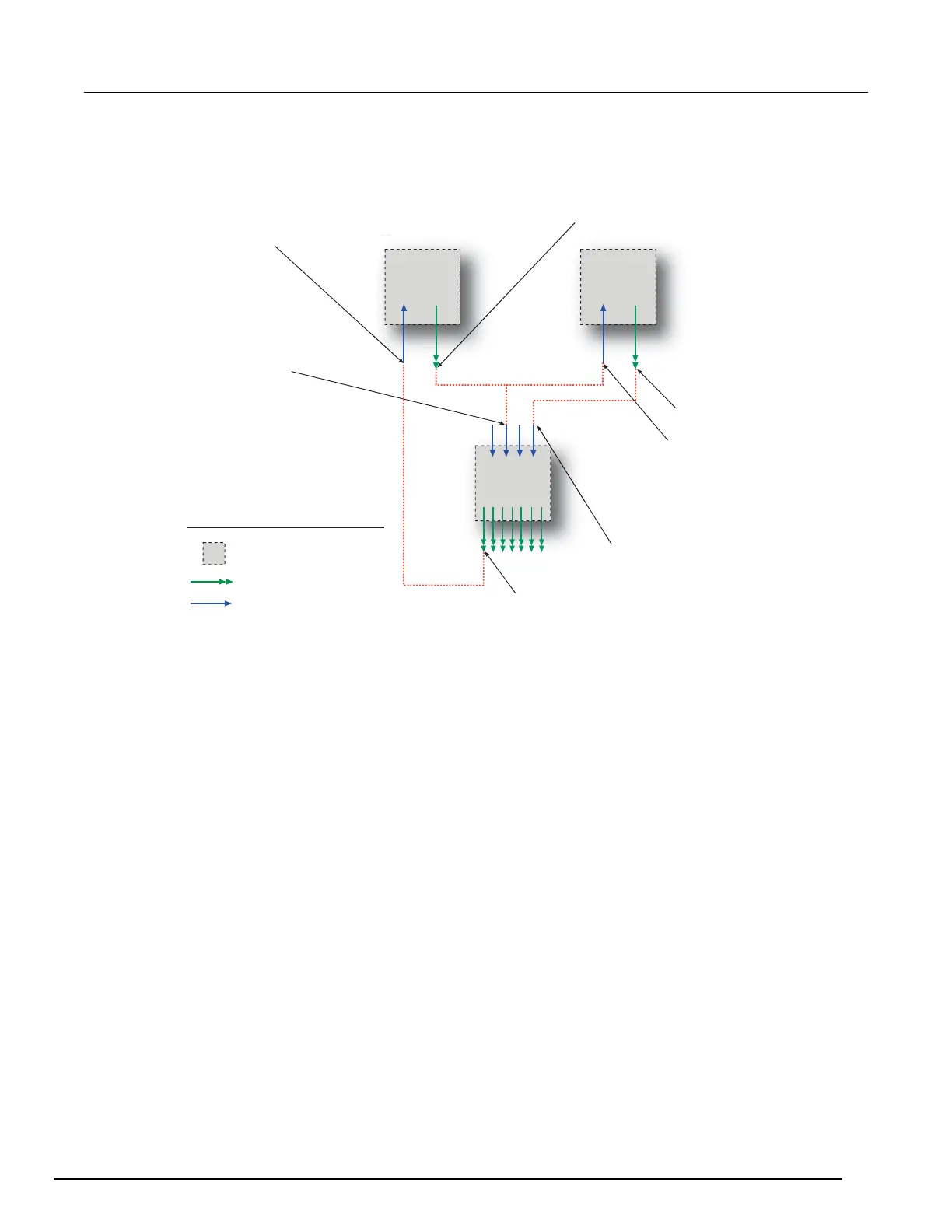

Figure 49: Pulse train triggering
Stimulus input:
trigger.timer[1].stimulus
Stimulus input:
trigger.timer[2].stimulus
SMU A
Timer #2
(pulse width)
Trigger event:
trigger.timer[1].EVENT_ID
Stimulus input:
smua.trigger.source.stimulus
Stimulus input:
smua.trigger.endpulse.stimulus
Trigger event:
trigger.timer[2].EVENT_ID
Trigger event:
smua.trigger.ARMED_EVENT_ID
Legend:
= Trigger object
= Trigger events
= Stimulus input
ulus
Timer #1
(pulse period)
