Section 7: TSP command reference Model 2657A High Power System SourceMeter® Instrument Reference Manual

7-152 2657A-901-01 Rev. B/December 2012

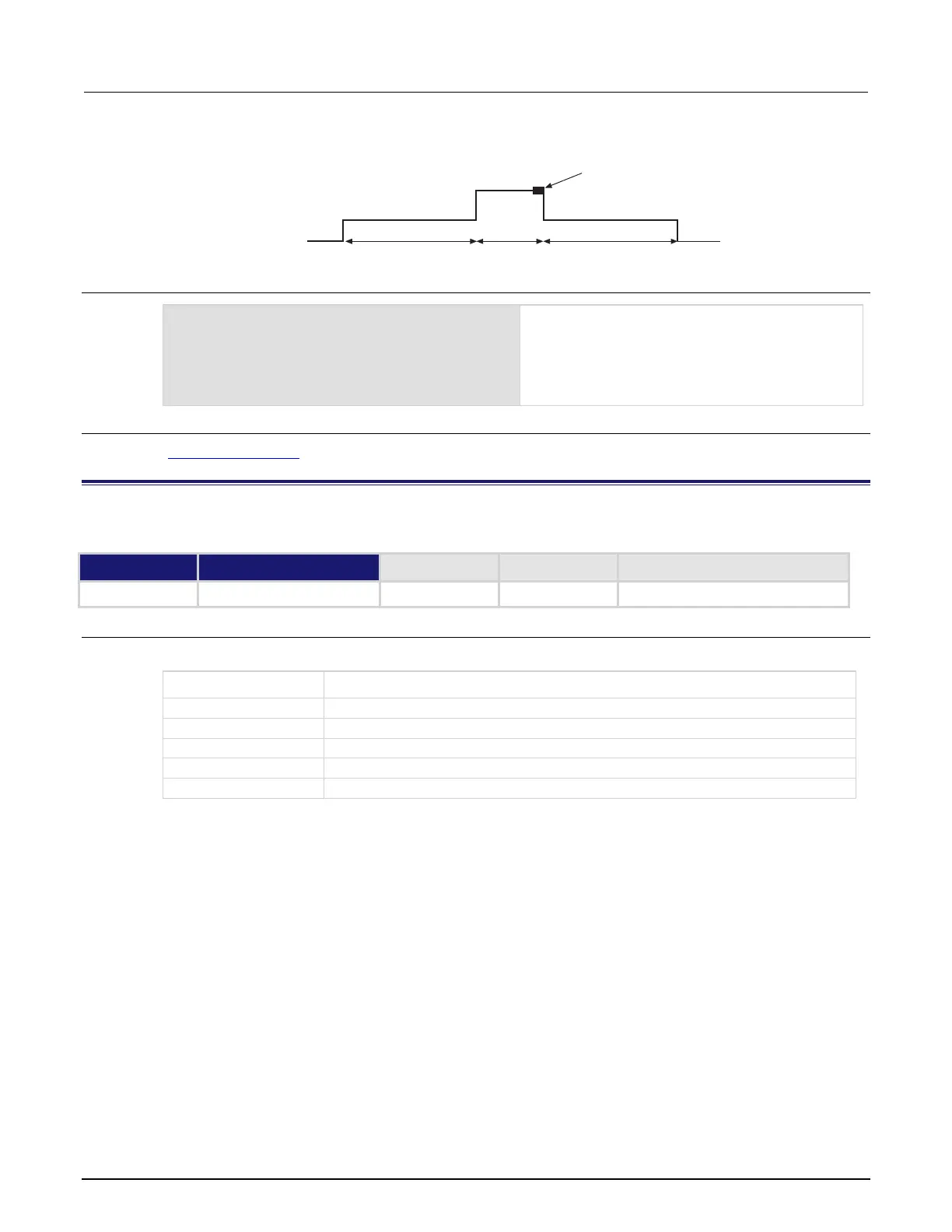

Figure 115: PulseIMeasureV

Example

PulseIMeasureV(smua, 0.001, 0.01,

20e-3, 40e-3, 10)

SMU A outputs 1 mA and dwells for 40 ms, outputs

10 mA and dwells for 20 ms. The voltage

measurements occur during each 20 ms dwell period.

After the measurement, the output returns to 1 mA

and dwells for 40 ms. This pulse-measure process

repeats nine more times.

Also see

KIPulse factory script (on page 5-20)

PulseVMeasureI()

This KIPulse factory script function performs a specified number of pulse V, measure I cycles.

Type TSP-Link accessible

Affected by Where saved Default value

Function No

Usage

PulseVMeasureI(smu, bias, level, ton, toff, points)

smu

System SourceMeter

instrument channel (set to smua)

bias

Bias level in volts

level

Pulse level in volts

ton

Pulse on time in seconds

toff

Pulse off time in seconds

points

Number of pulse-measure cycles

level

bias

ton

bias

tofftoff

Voltage measurement
