Model 2657A High Power System SourceMeter® Instrument Reference Manual Section 3: Functions and features
2657A-901-01 Rev. B/December 2012 3-67
2. To run the i_leakage_measure() function in the KIHighC factory script, send:
-- Charges the capacitor.
smua.source.levelv = 100
smua.source.output = smua.OUTPUT_ON
delay(1)
imeas = i_leakage_measure(smua, 0, 100e-3, 300e-3, 10e-6, 100e-3)
-- The parameters in the i_leakage_measure() function represent
-- the following:
-- smu = smua
-- levelv = 0 V
-- limiti = 100 mA
-- sourcedelay = 300 ms
-- measurei = 10 uA range
-- measuredelay = 100 ms
Adjust the voltage level and source delays based on the value and type of capacitor along with the
magnitude of the voltage step and the current measure range.

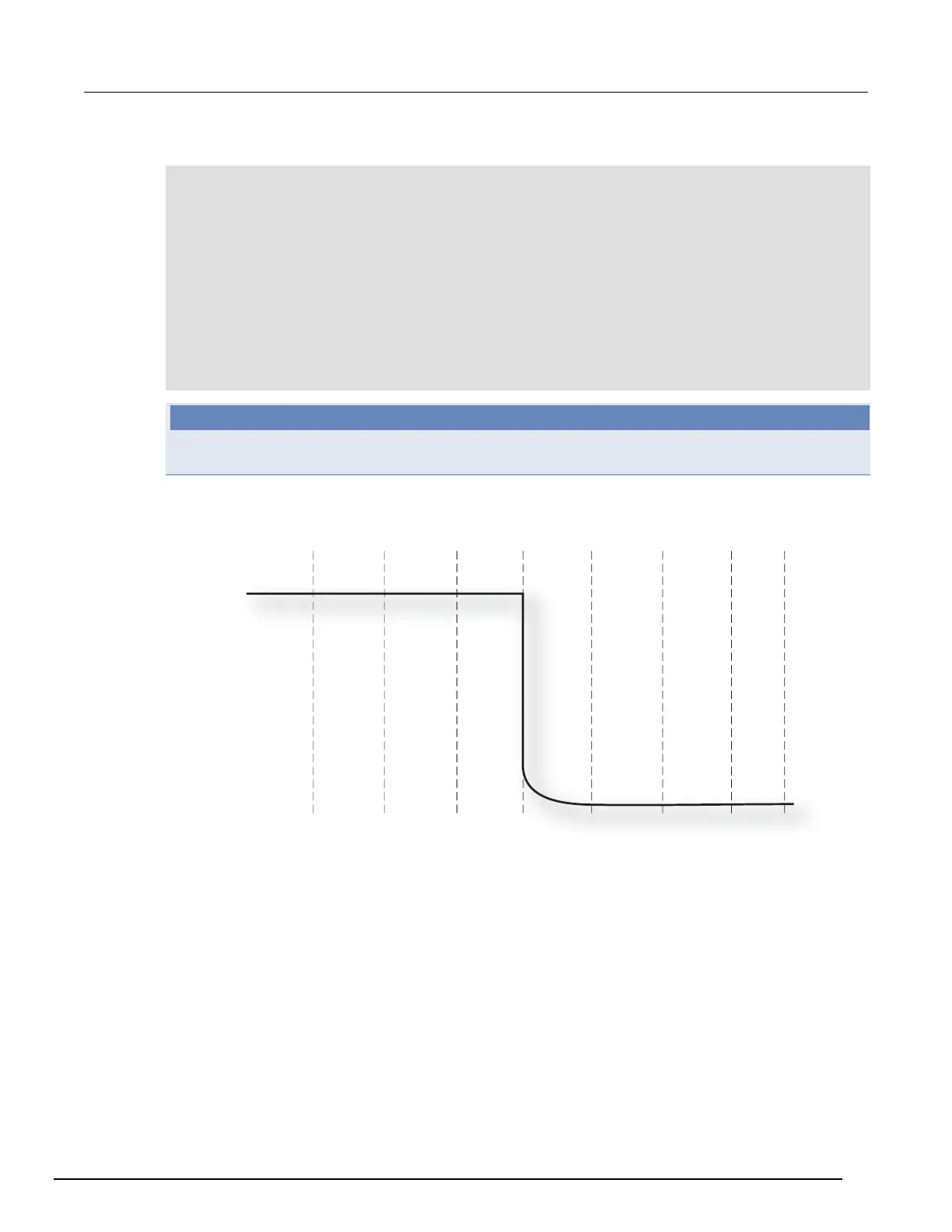

Figure 63: Enabling high-capacitance mode for the Model 2657A
NOTE
100 V
0 V
Lower limit to 10 μA
Source delay
Measure delay
Measurement
levelv
(100 V)
limit
(100 mA)
levelv
(0 V)
To Next Page
