Section 4: Theory of operation Model 2657A High Power System SourceMeter® Instrument Reference Manual
4-22 2657A-901-01 Rev. B/December 2012

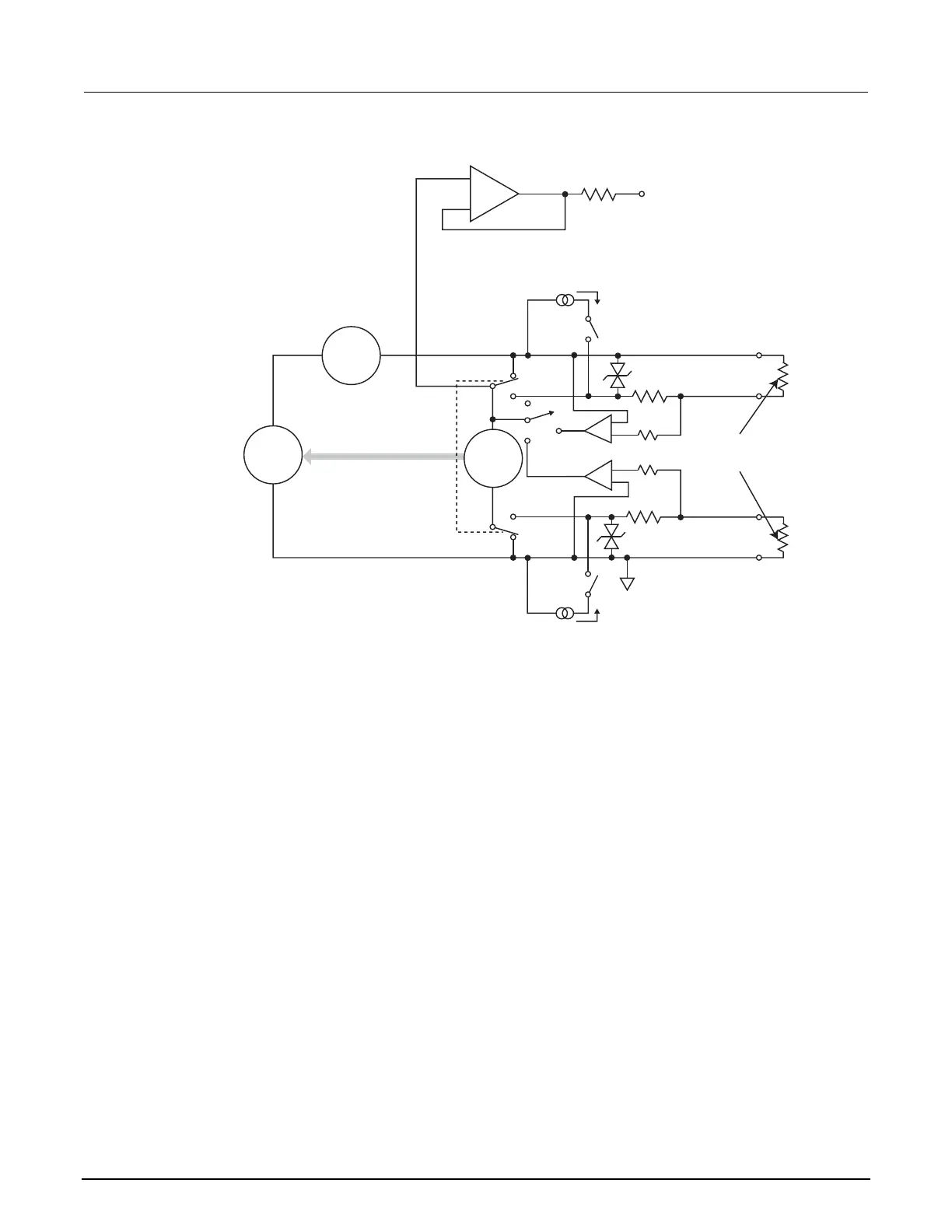

Figure 88: Contact check circuit configuration
Remote
SENSE HI
HI
Remote
LO
SENSE LO
Local
Local
x1
GUARD
CCHK SW
CCHK SW
+
–
1
2
2
4
4
1
2
3
3
Aggregate
contact
resistances
Feedback
V-source
+
-
50 μA
current source
I-meter
A
V
V-meter
50 μA
current source
NOTES: 1. This represents a protection circuit. Do not apply more than 3030 V
between HI and SENSE HI. To maintain specified operation and obtain
accurate measurements, the maximum voltage between HI and
SENSE HI should be no more than 3 V. This limit also applies to
the maximum voltage between LO and SENSE LO.
2. Approximately 80 kΩ.
3. High impedance differential amplifier.
4. Approximately 10 MΩ.
