Keithley 2657A User Manual

Section 6: Instrument programming Model 2657A High Power System SourceMeter® Instrument Reference Manual
6-56 2657A-901-01 Rev. B/December 2012
Another method you can use to run simultaneous test scripts is to use groups with a single TSP-Link
network. Each group on the TSP-Link network can run a test while other groups are running different
tests.
A group consists of one or more nodes with the same group number. The following figure displays a
single TSP-Link network with groups. This method requires one TSP-Link network and a single GPIB
connection to the computer.

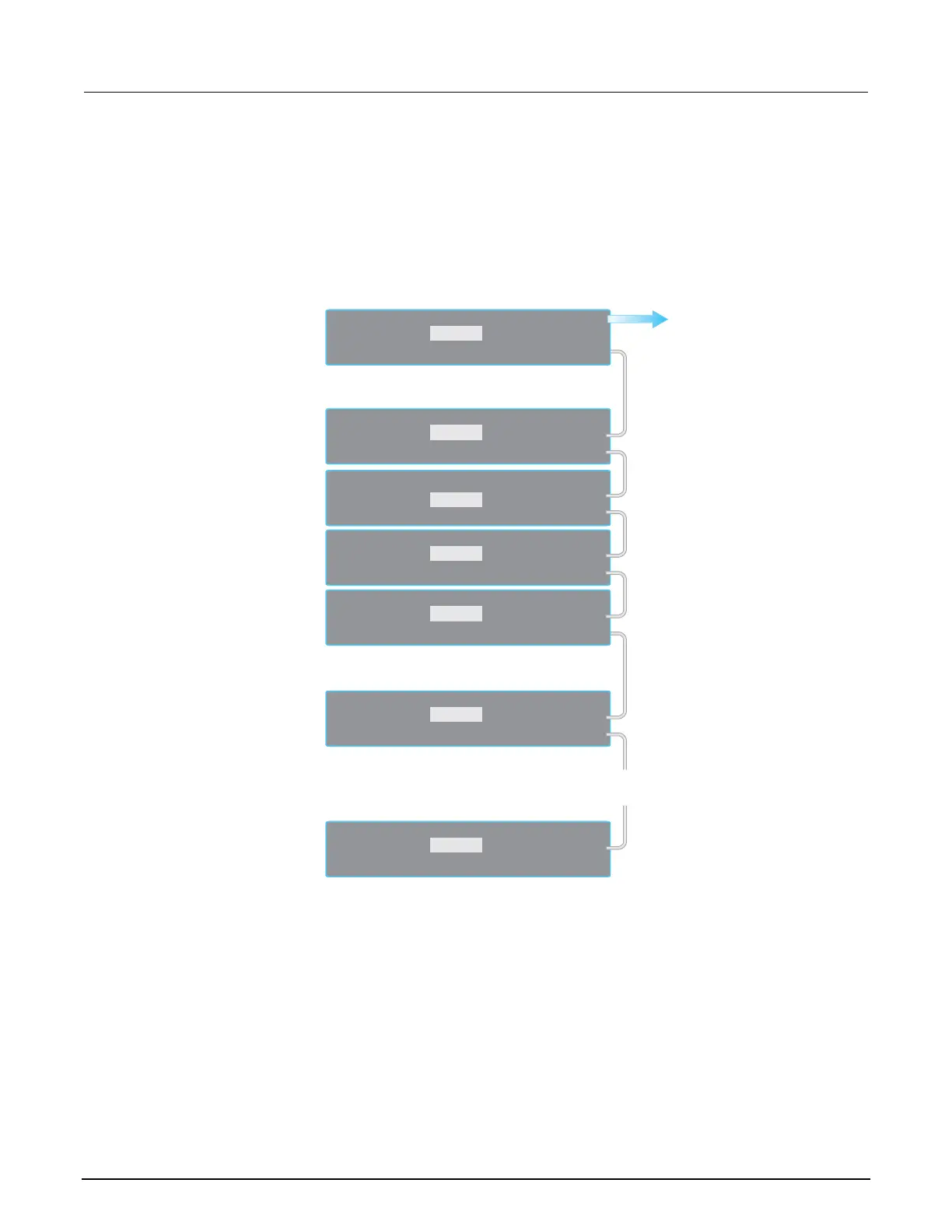

Figure 102: Model 2657A TSP-Link network with groups
GPIB
TSP-Link In
TSP-Link Out
GPIB
TSP-Link In
TSP-Link Out
GPIB
TSP-Link In
TSP-Link Out
•
•
•
GPIB
TSP-Link In
TSP-Link Out
GPIB
TSP-Link In
TSP-Link Out
GPIB
TSP-Link In
TSP-Link Out
SMU 2
GPIB
TSP-Link In
TSP-Link Out
SMU 1
GPIB
TSP-Link In
TSP-Link Out
SMU 3
GPIB
TSP-Link In
TSP-Link Out
SMU 1
GPIB
TSP-Link In
TSP-Link Out
SMU n
SMU n = last SMU in system.
Node n = last node in system.
GPIB
TSP-Link In
TSP-Link Out
SMU 4
GPIB
Master
Node 3
Node 4
Node 5
Node n
Node 2
Group leader
Node 6
Group leader
TSP-Link In
TSP-Link Out
SMU 1
To
PC
Group 1
Group 2
Group 0
