DIAGNOSTICS Checkout Procedures
10DEC05
DG4825-1
Page
133 of 180
7 At the “Service System Diagnostic” screen, touch [Individual Component Control].
8 Check the status of the INTERLOCK SWITCH S8 displayed on the screen:
9 Does the status of the INTERLOCK SWITCH S8 match the screen?
FRONT DOOR INTERLOCK SWITCH S8
Open Not actuated
Closed Actuated
Yes No
Continue with Step 10. 1. Check:
a. HARNESS
b. CONNECTOR P5
2. If necessary, install new parts.
3. Continue with Step 10.

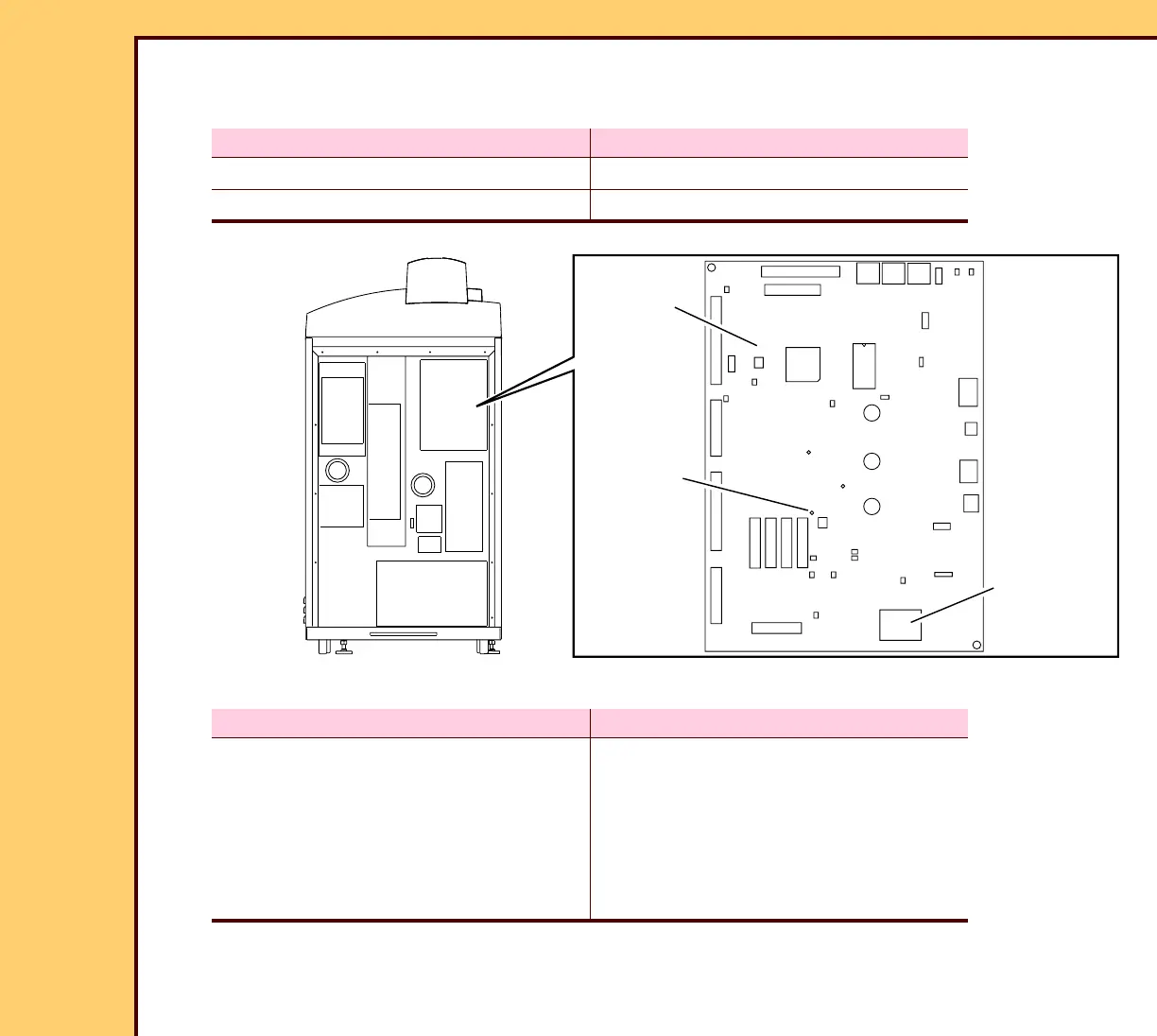

H194_0033BC
HARNESS
H194_0033BCC
BOARD A1
CONTROL
SYSTEM
MOTION
P5 and
CONNECTOR
LED DS25
To Next Page
