DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

55 of 180

Displaying the Software Versions

Important

The graphic is an example. Your display might not be the same.

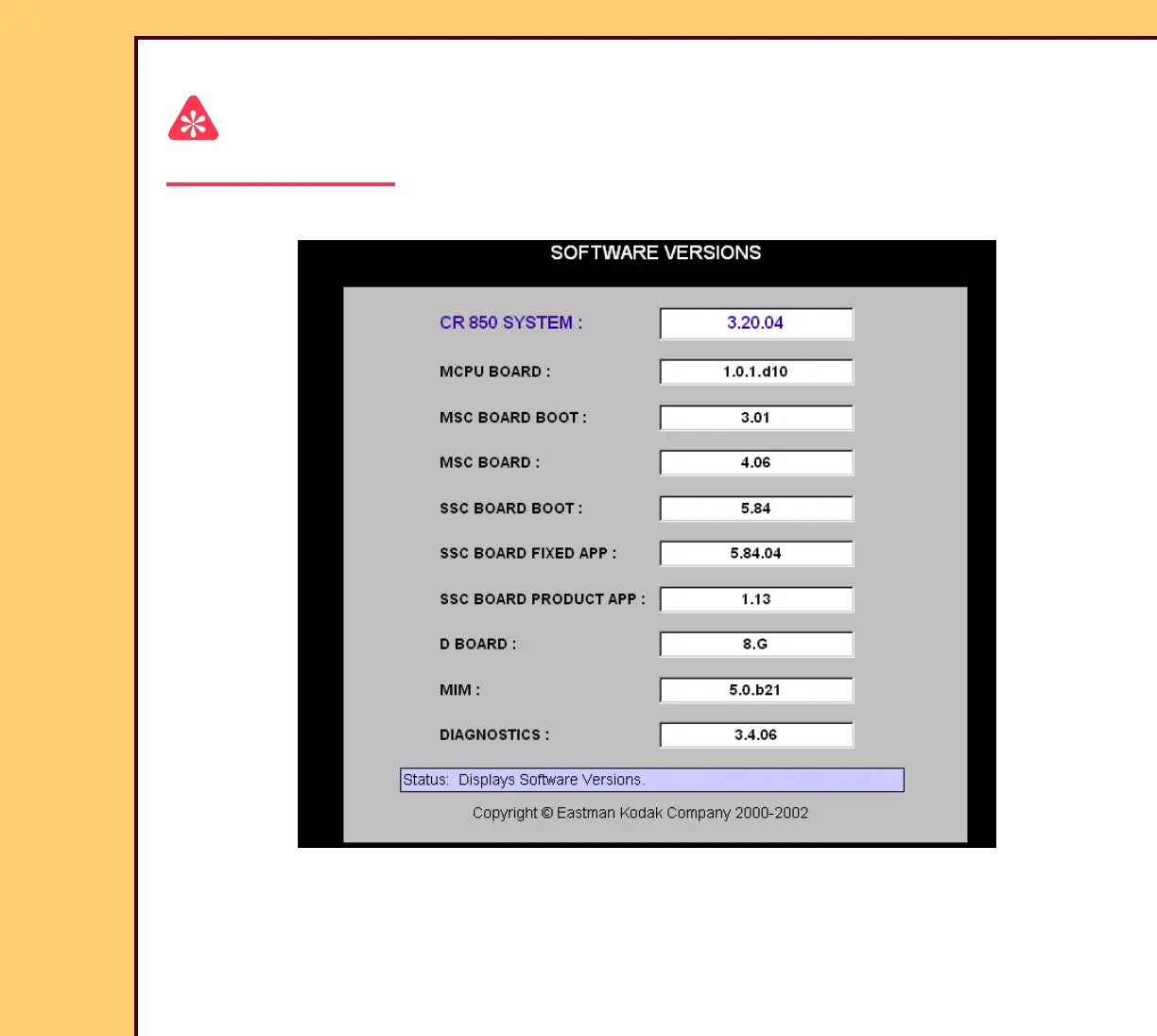

1 On the “System Service Diagnostic” screen, touch [Display Software Versions].
