DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

28 of 180

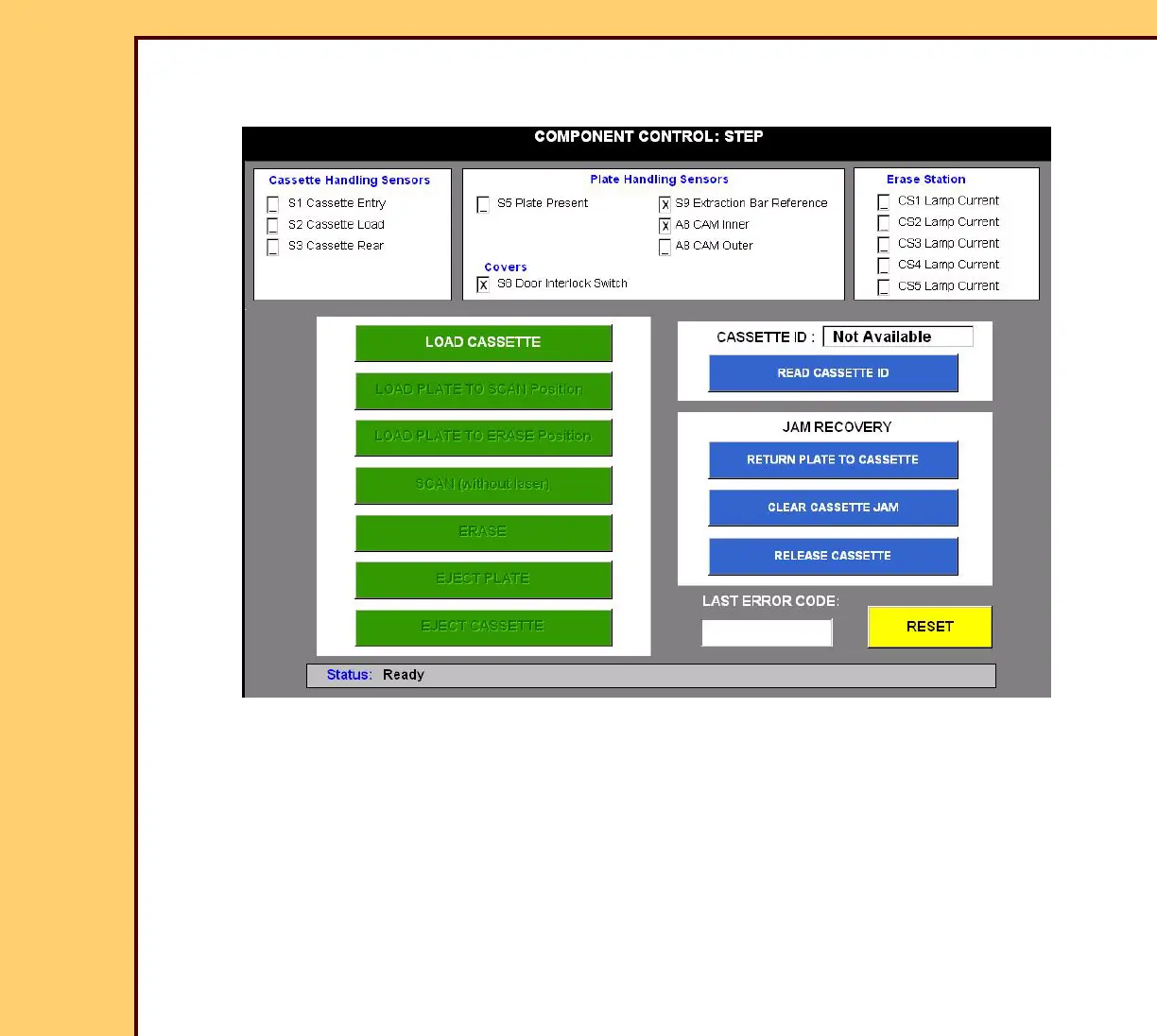

Component Control: Step

1 On the “System Service Diagnostic” screen, touch [Component Control: Step].

2 Insert the CASSETTE into the CR 825/850 SYSTEM.

3 Wait for the beep.

4 Touch [LOAD CASSETTE].
