DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

36 of 180

3 Check:

• “Laser Power” is 28 - 32 mW

• “Percent of original power” is ≥ 90%

4 Are the values correct?

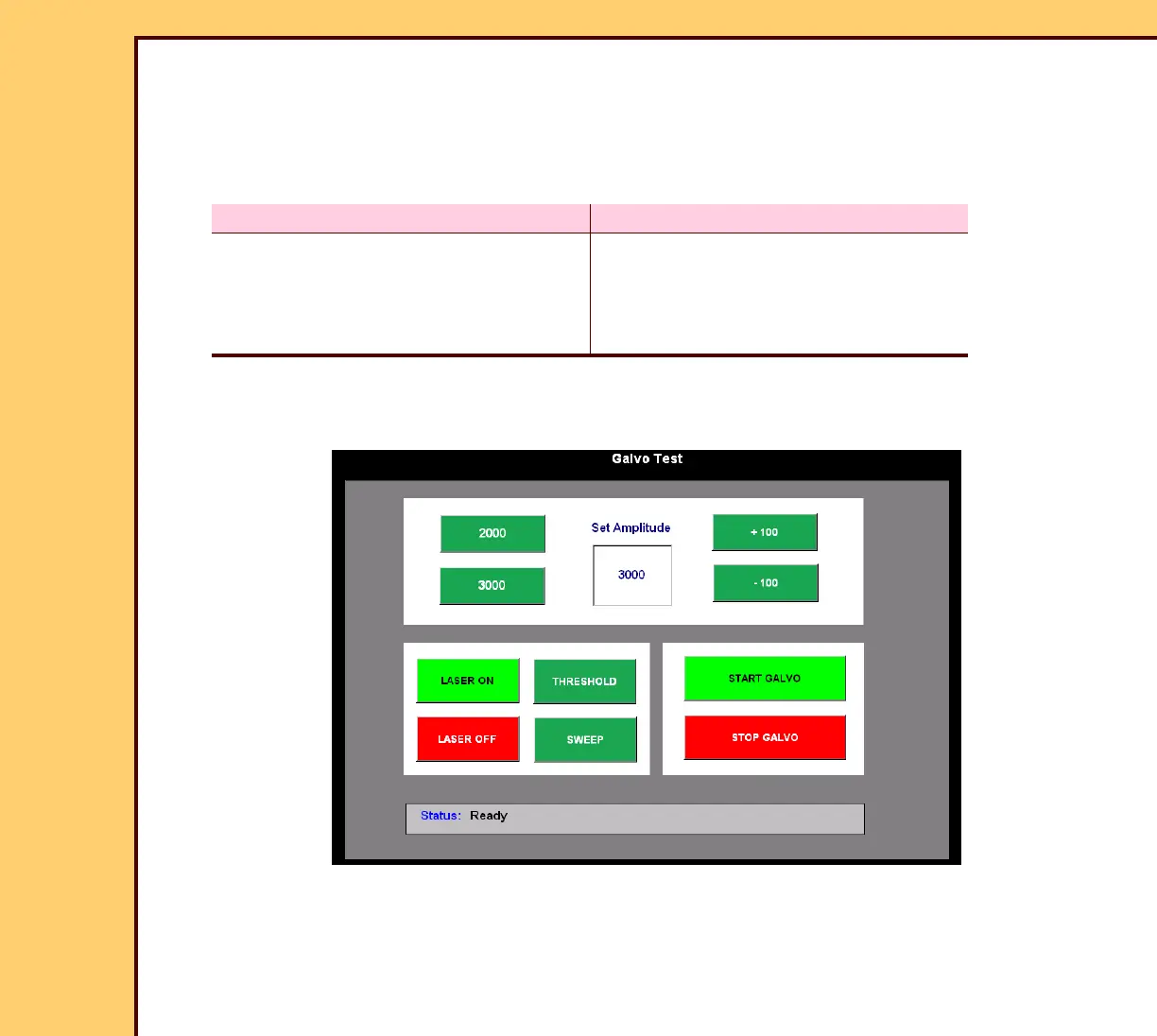

Galvo Test

1 On the “System Service Diagnostic” screen, touch [Galvo Test].

2 Touch:

• [START GALVO]

• [LASER ON]

Yes No

Continue with the next test. 1. Check the connections to the

LASER DIODE BOARD.

2. Install a new OPTICS

MODULE.
