DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

54 of 180

Installing Files from a Disk

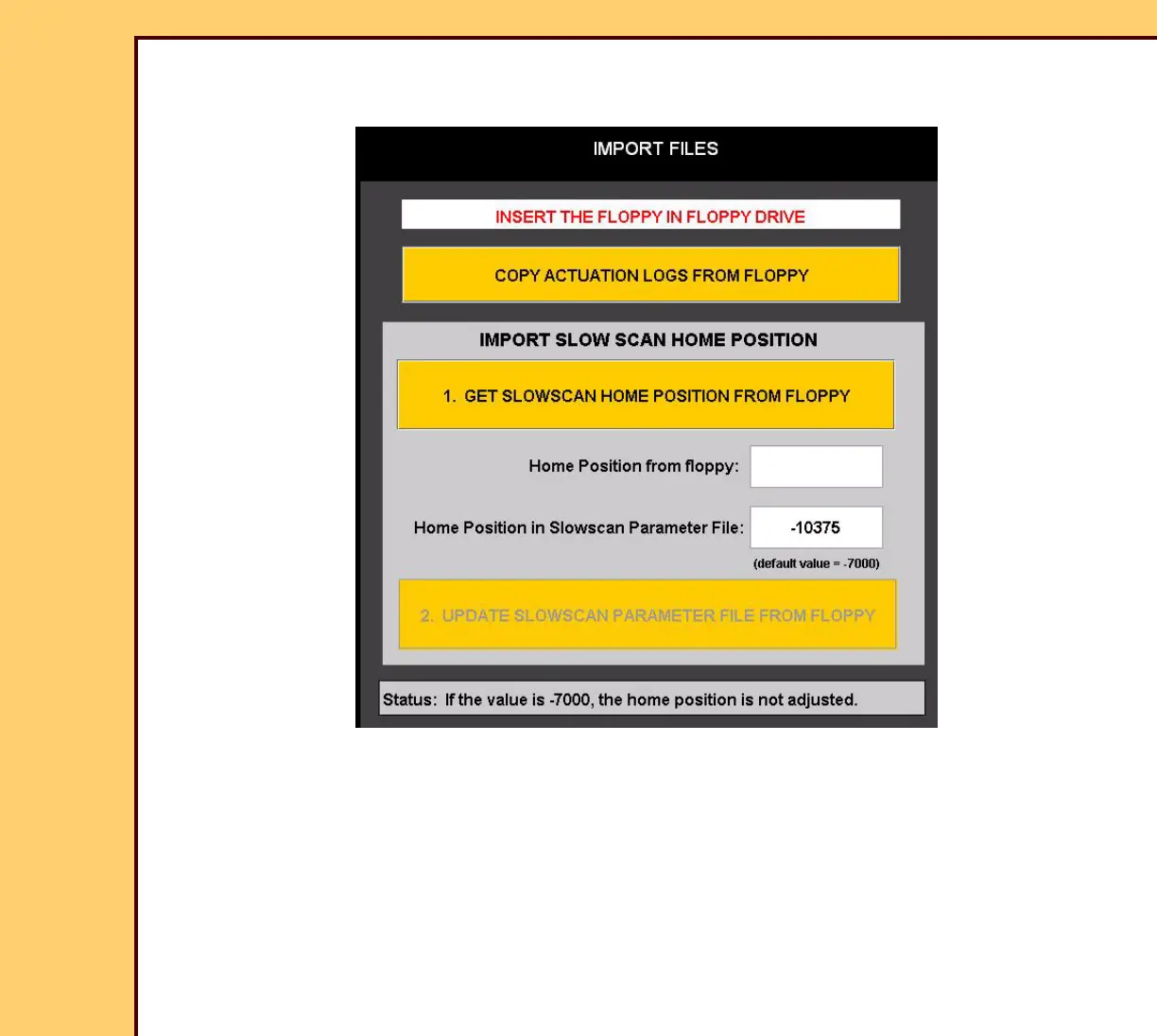

1 On the “System Service Diagnostic” screen, touch [Import Files].

2 Insert the disk into the DRIVE.

3 To install the ACTUATION LOGS to the CR 825/850 SYSTEM, touch [COPY ACTUATION

LOGS FROM FLOPPY].

4 To install the parameters of the SLOW SCAN, touch:

• [GET SLOWSCAN HOME POSITION FROM FLOPPY]

• [UPDATE SLOWSCAN PARAMETER FILE FROM FLOPPY]

Default Chapter2
