DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

51 of 180

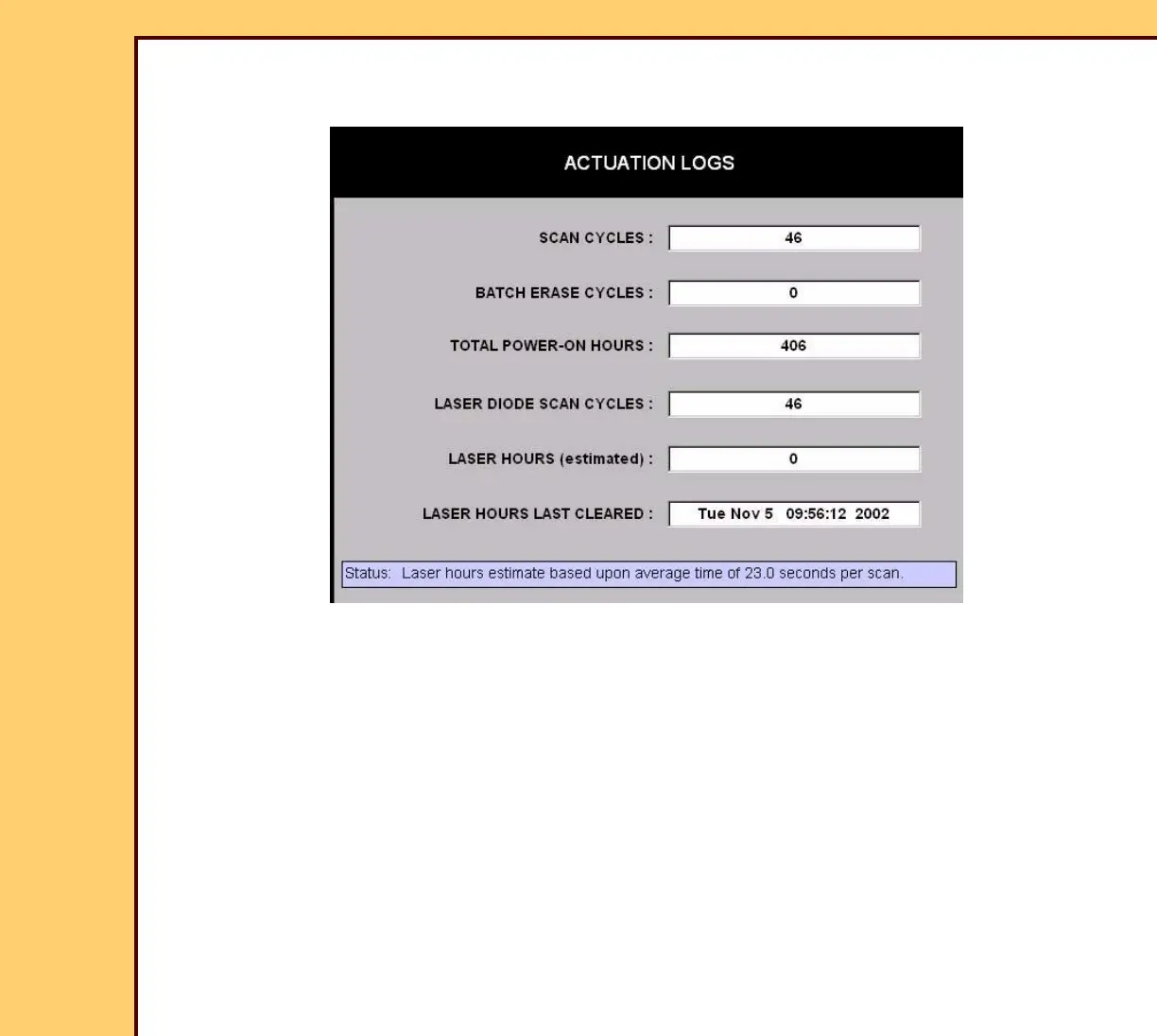

Checking the Actuation Logs

1 On the “System Service Diagnostic” screen, touch [Actuation Log].
