DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

49 of 180

Diagnostic Procedures

Checking the Error Logs

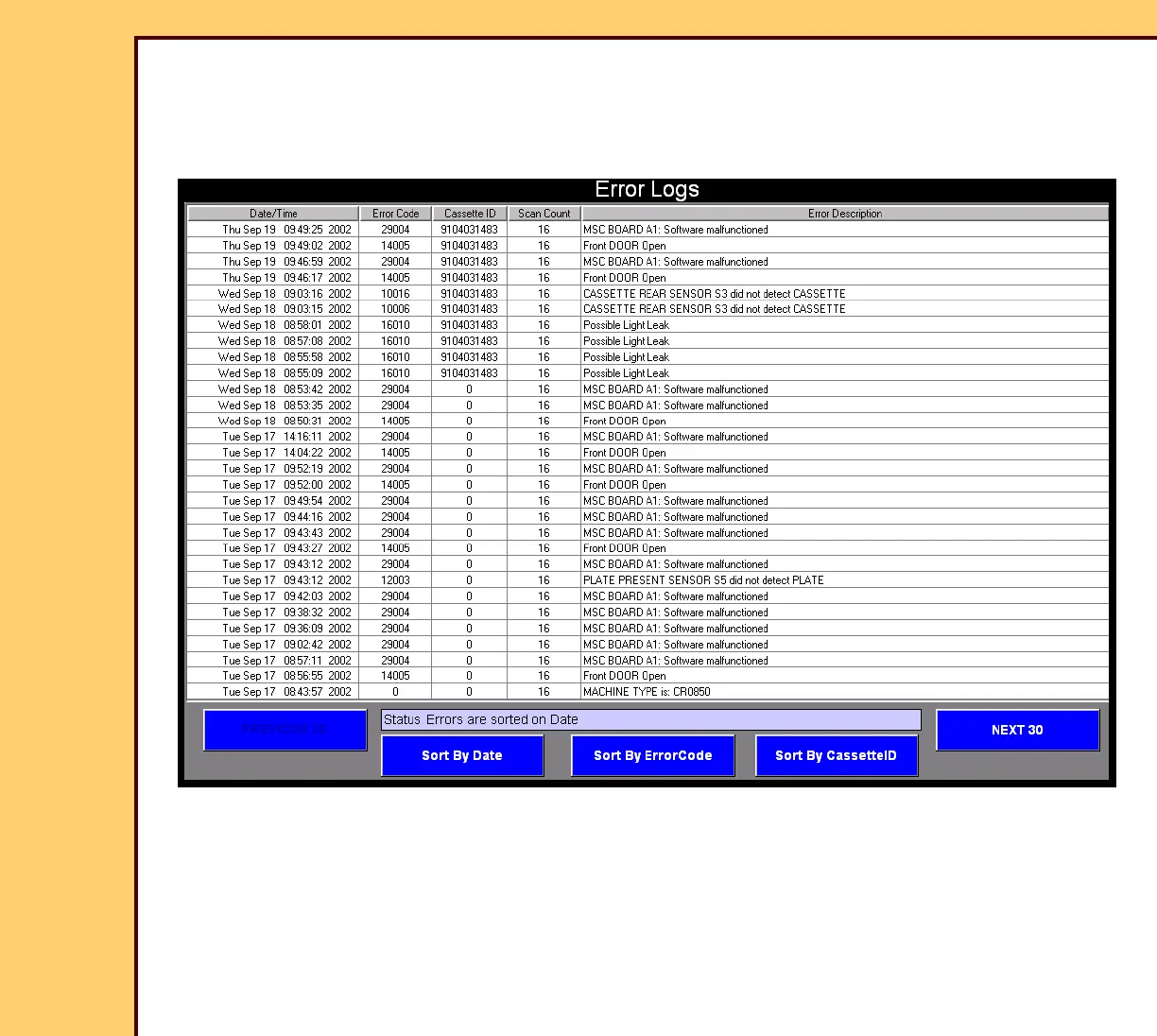

1 On the “System Service Diagnostic” screen, touch [Error Log].

2 Touch either:

• [Sort By Date],

• [Sort By Error Code], or

• [Sort By Cassette ID]
