DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

45 of 180

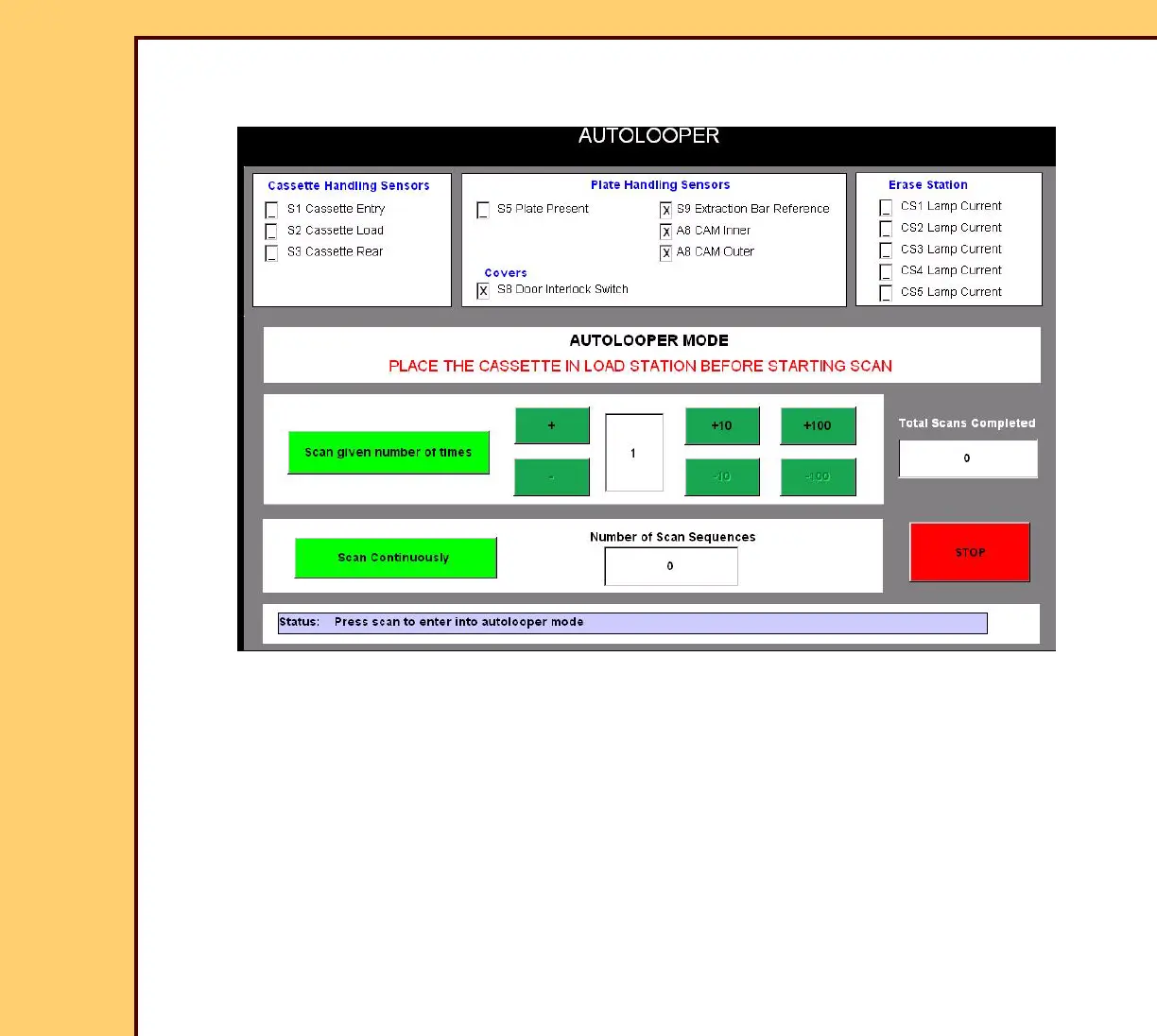

AUTOLOOPER

1 On the “System Service Diagnostic” screen, touch [AutoLooper].

2 Insert a CASSETTE into the CR 825/850 SYSTEM.

3 Touch either:

• [Scan given number of times], or

• [Scan Continuously]

4 For the “Number of Cycles”, type: 10
