DIAGNOSTICS Checkout Procedures

10DEC05

DG4825-1

Page

145 of 180

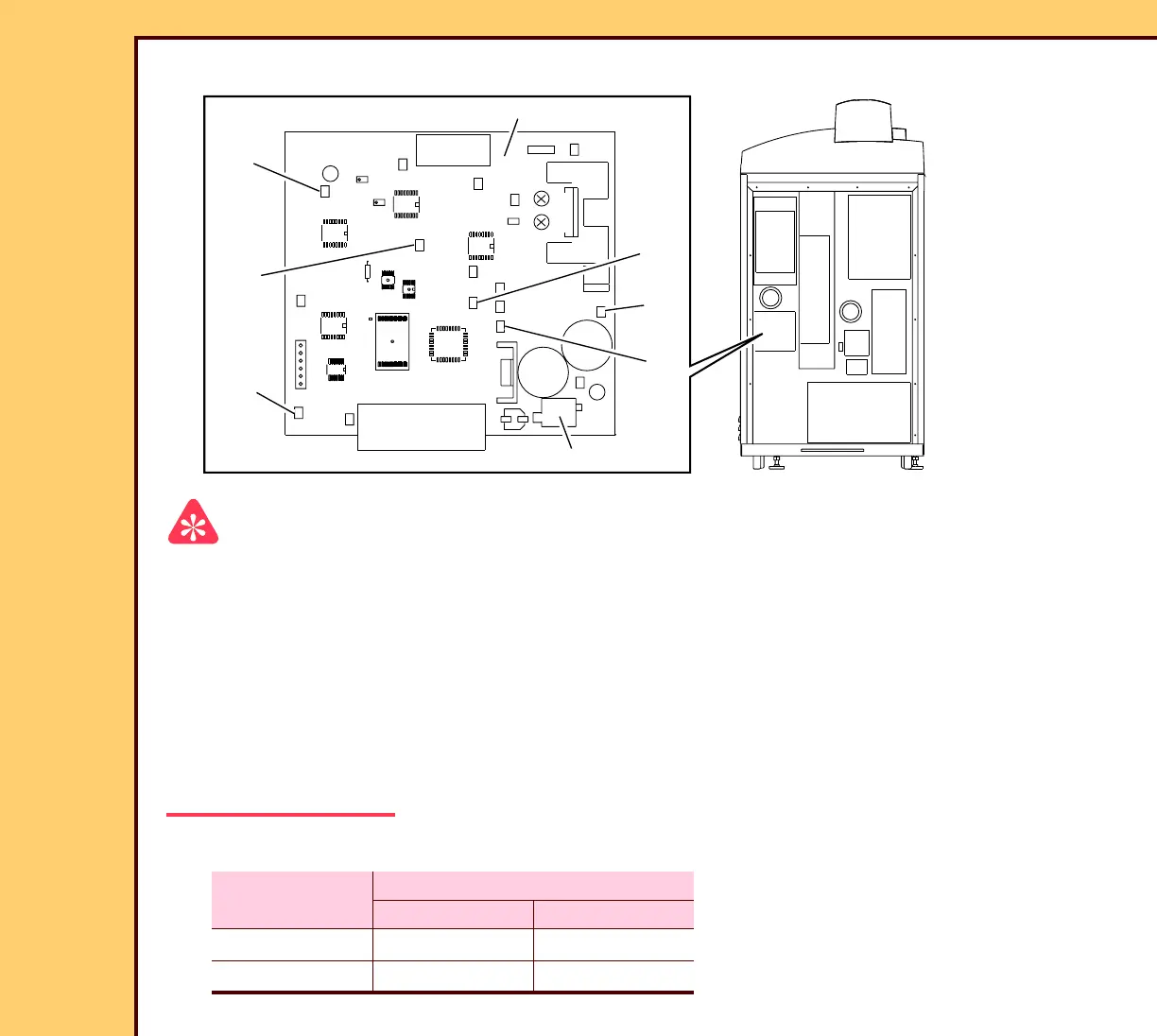

GALVO BOARD A4

Important

The GALVO BOARD A4:

• sends signals to control the GALVO MOTOR

• changes the 24 V DC to:

– +15 V DC

– +10 V DC

– +5 V DC

• changes –24 to –15 V DC

1 Check for correct voltages on CONNECTOR P2:

Voltage

MULTIMETER

Ground Positive

+24 V DC P2-2 P2-1

–24 V DC P2-2 P2-5

H194_0036BC

TP15

TP13

TP6

TP5

TP16

TP1

CONNECTOR P2

GALVO BOARD A4

H194_0036BCA
