DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

32 of 180

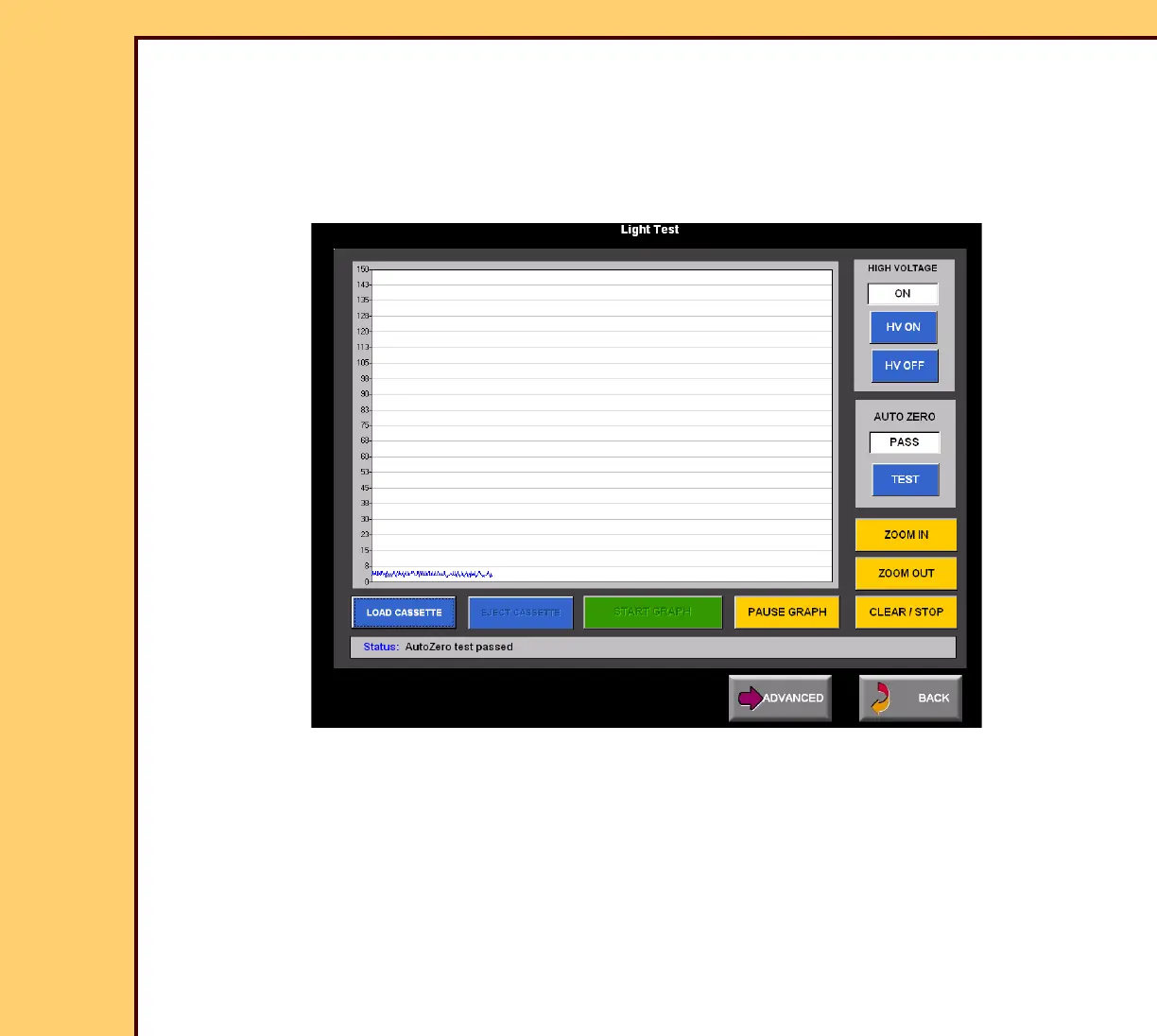

2 Touch [TEST].

3 Wait for the test to complete.

4 Check that “PASS” displays in “AUTO-ZERO”.

5 Touch [START GRAPH].

6 Check that the value is approximately 4 - 5. Use:

• [ZOOM IN]

• [ZOOM OUT]

7 Touch [HV ON].

8 Check that the value increases.
