DIAGNOSTICS Using the Diagnostics

10DEC05

DG4825-1

Page

42 of 180

4 Check the values:

5 Are the values correct?

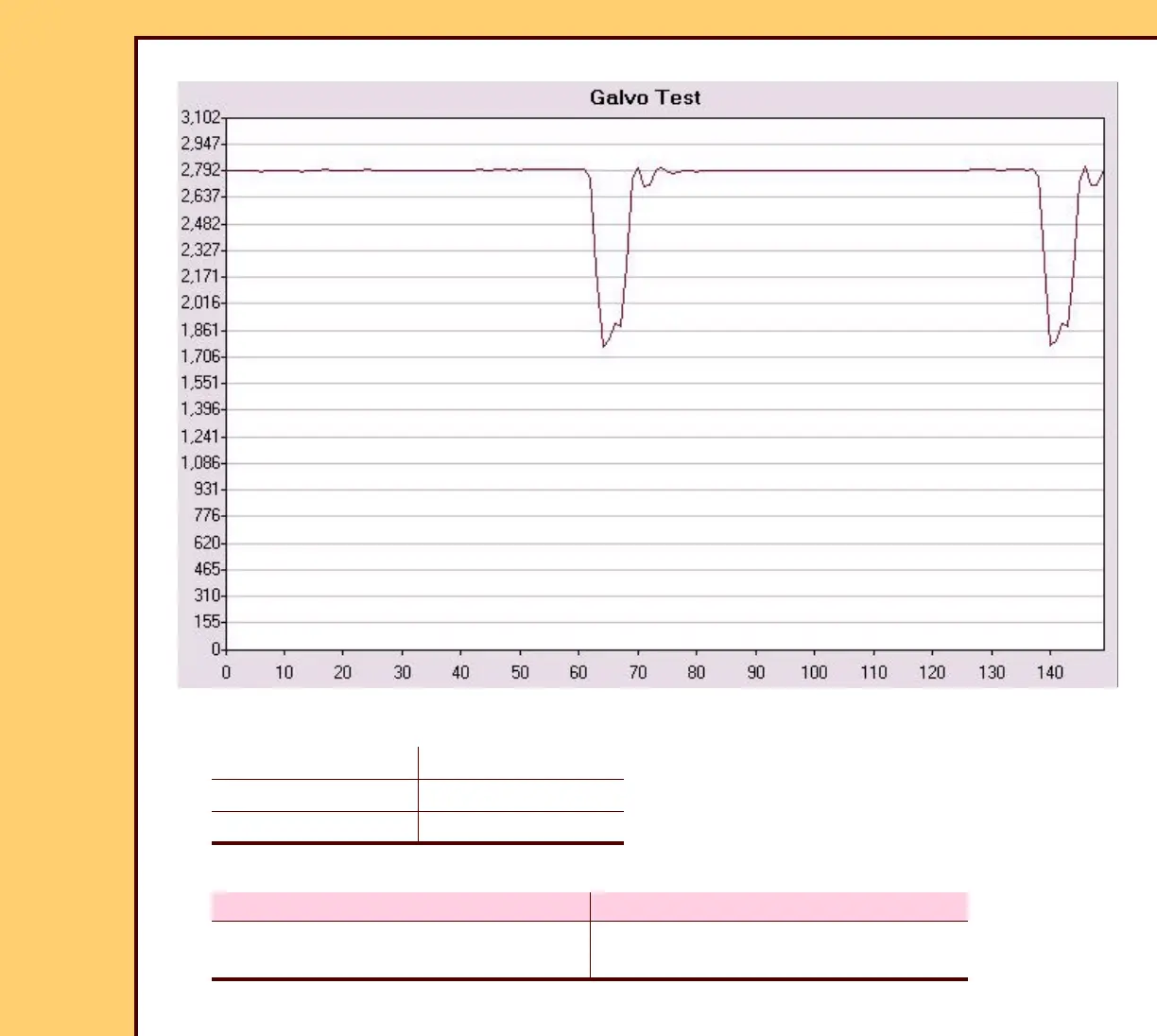

GALVO PLOT normal

AGC 10.0 V ± 0.1

2.5 vRef 2.5 ± 0.1

Yes No

Continue with the next test. Adjust the GALVO BOARD until the

GALVO PLOT is normal.

Normal GALVO PLOT

GALVO PLOT with low HOOK

GALVO PLOT with excessive HOOK
