3-4 Machine Information
Machine Information
Internal Machine
Machine Configuration (continued)

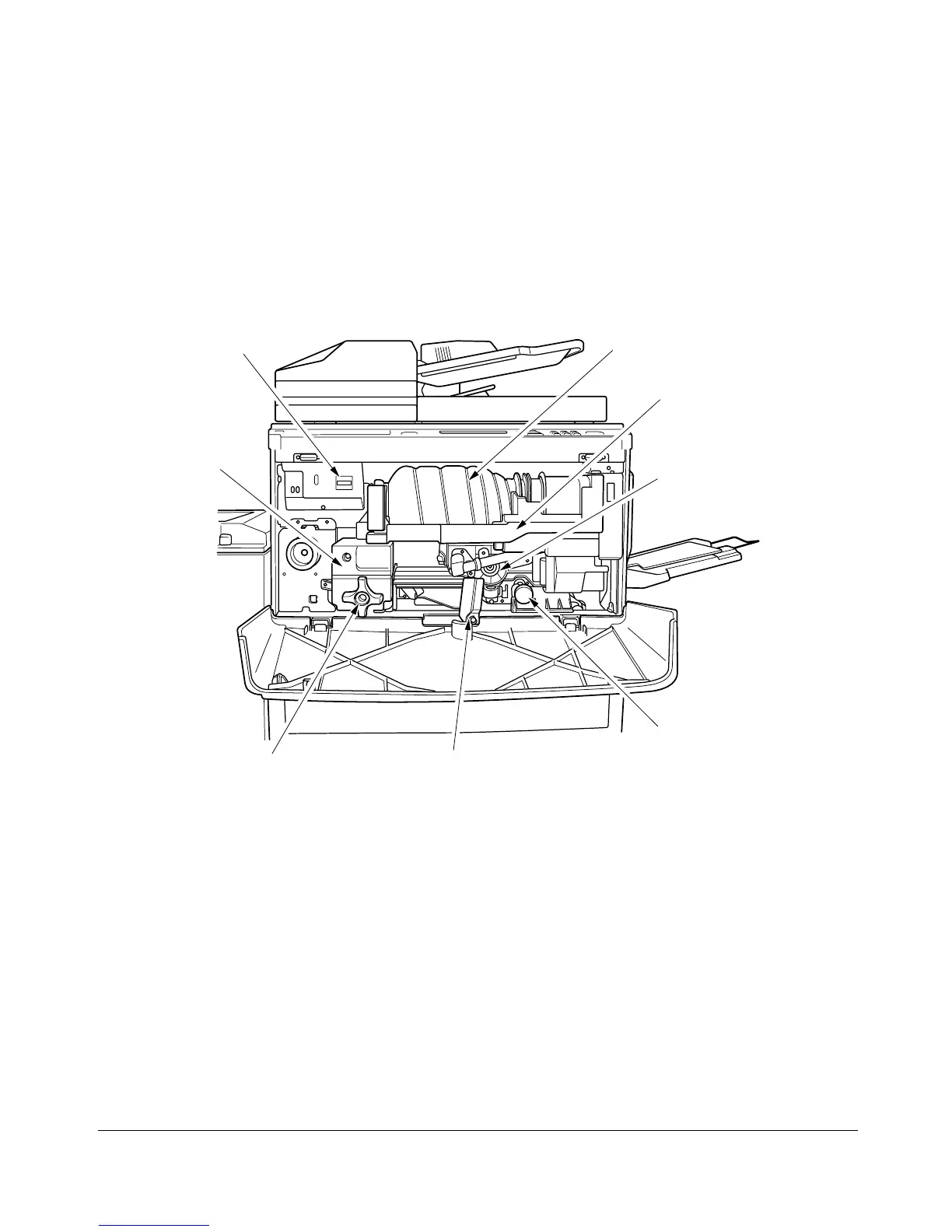

Internal Machine Call-outs
1 Toner Cartridge holds toner and is to be replaced when supplying toner.
2 Toner unit holds the toner supply.
3 Drum unit forms the copy image.
4 Knob 3 can be turned to ease removal of mishandled paper.
5 Lever 1 can be moved to ease removal of mishandled paper.
6 Knob 2 can be turned to ease removal of mishandled paper from the fixing unit.
7 Fixing unit fuses the toner onto the copy paper.
8 Total counter indicates the total number of copies made.
q Toner cartridge
w Toner unit
e Drum unit
r Knob 3
y Knob 2
u Fixing unit
i Total counter
t Lever 1
