Konica Minolta 7045 - Control Panel Layout

Machine Information 3-7
Machine Information

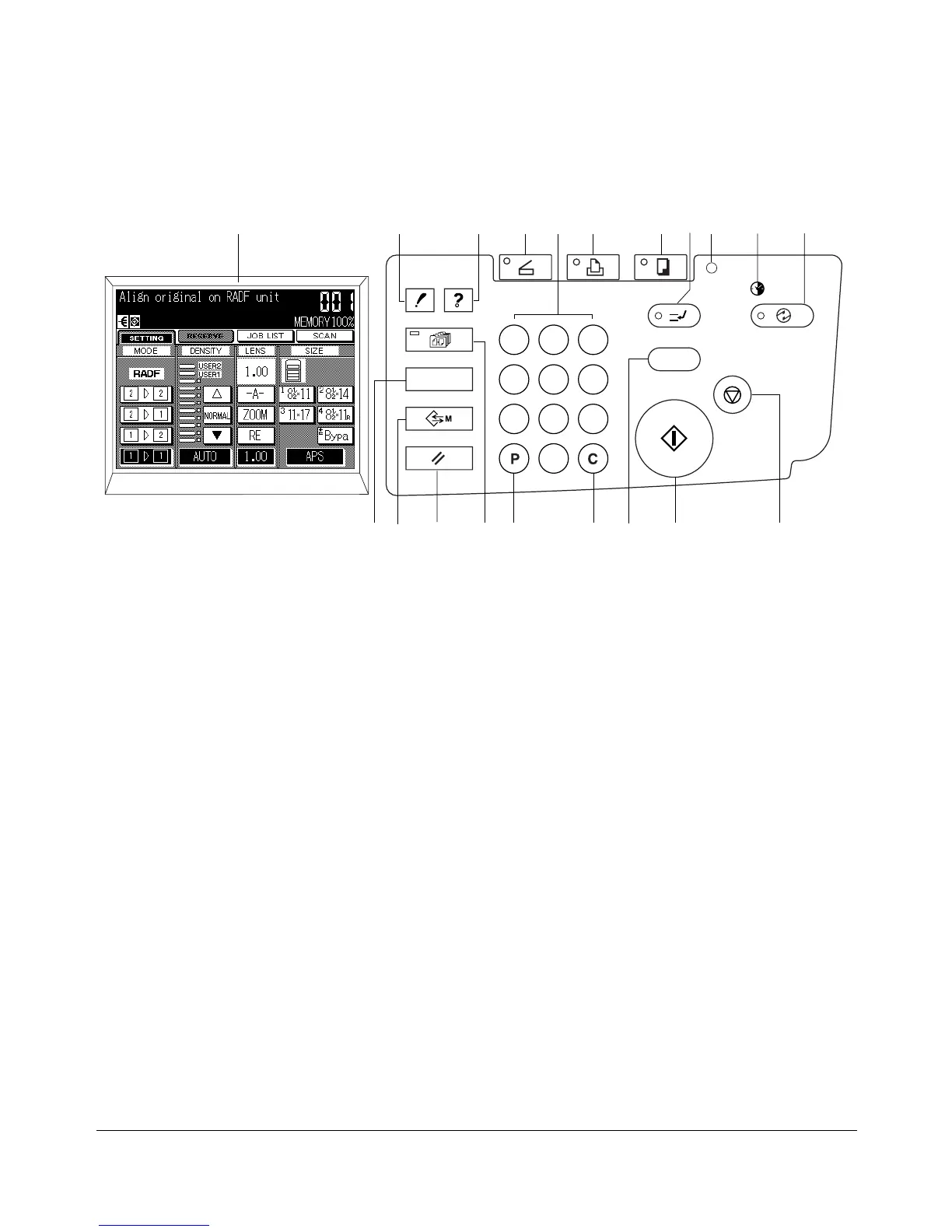

Control Panel Layout
1 LCD SCREEN displays machine and copying status; help information; interactive screens; and
touch keys for selecting all functions.
2 CHECK displays a screen showing all settings that are selected for the current job.
3 HELP displays a screen with help for the currently selected function or to access the Key
Operator Mode Screen.
4 SCAN switches the machine operation mode to scanner.
5 KEYPAD enters numeric values.
6 PRINT accesses printing mode for network.
7 COPY switches the machine operation mode to copy.
8 INTERRUPT stops copying/printing/scanning in progress to allow copying.
9 DATA blinks while receiving print data in printer mode, then lights after completing it.
10 TIMER lights when the timer function is set.
11 POWER SAVER ON/OFF activates power-saving mode for times when the copier is inactive,
or activates timer interrupt mode when weekly timer function is active.
12 STOP/CLEAR stops the copying sequence; deletes the stored memory.
13 START activates copying or scanning.
14 PROOF COPY outputs a single set of copies to confirm whether the current settings are
selected properly.
15 CLEAR QTY. allows resetting of print quantity.
16 [P] displays the Counter Screen or accesses programming modes for setting special functions.
17 APPLICATION displays a menu for selecting special application functions.
18 AUTO RESET restores copier to automatic mode settings or to key operator settings.
19 JOB MEMORY displays screens for selecting job store/job recall functions.
20 OUTPUT displays a screen for selecting an output condition.
