Konica Minolta 7045 - Standard and Optional Equipment Layout

Machine Information 3-5
Machine Information
Machine Configuration (continued)

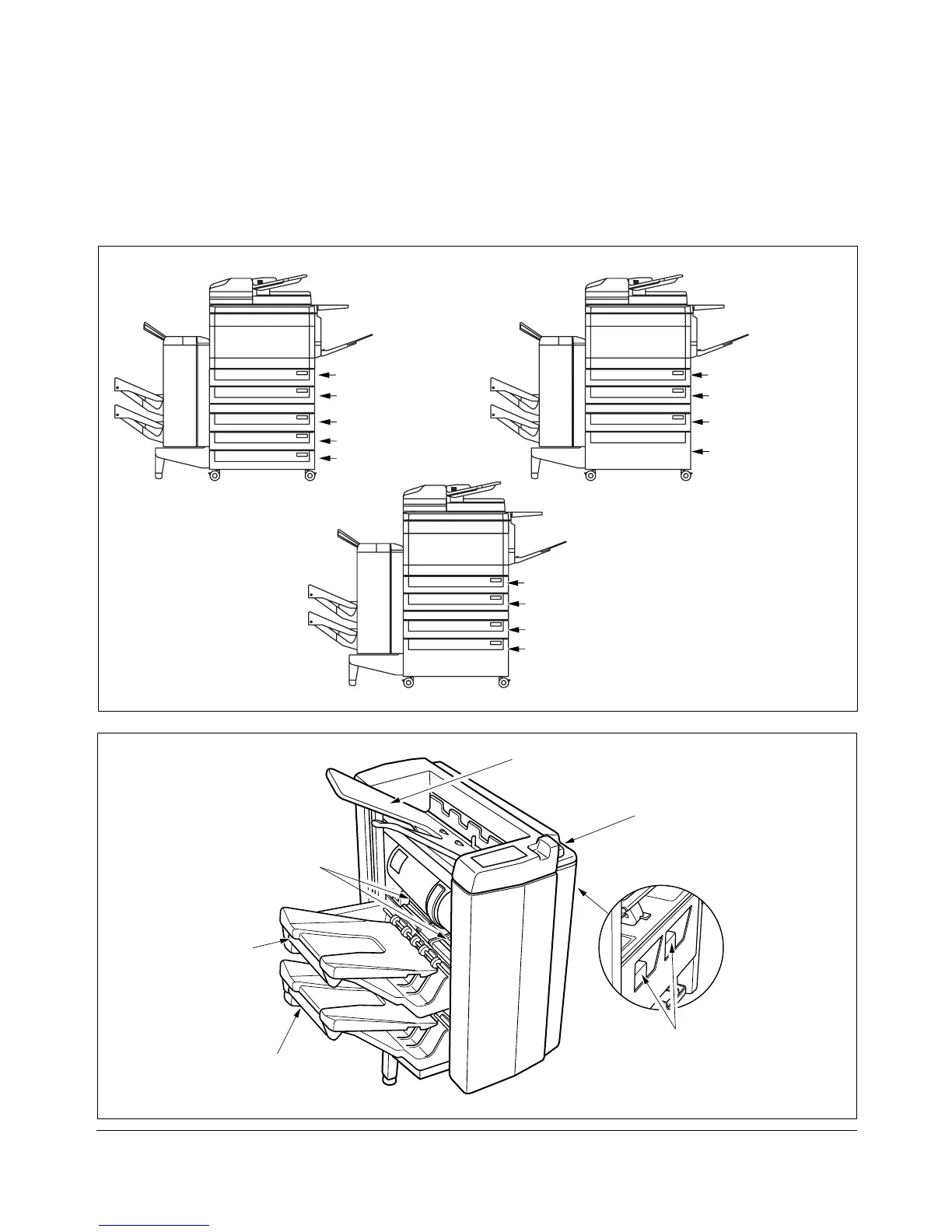

Standard and Optional Equipment Layout
Main Body + DB-208 Main Body + DB-208A
Main Body + DB-608
FS-109
Finisher
(see details
below)
Reversing Automatic Document Feeder - RADF
Work table
Multi-Sheet
Bypass Tray
(100 sheets)
Automatic Duplex
Unit (ADU)
Tray 1 (500 sheets)
Tray 2 (500 sheets)
Tray 3 (500 sheets)
Tray 4 (500 sheets)
Tray 3: Large Capacity Tray
(1,500 sheets)
Automatic Duplex
Unit (ADU)
Tray 1 (500 sheets)
Tray 2 (500 sheets)
Automatic Duplex
Unit (ADU)
Tray 1 (500 sheets)
Tray 2 (500 sheets)
Storage
t Release lever: Releases
the finisher from the main
body when clearing misfed
paper or supplying staples.
w Staple drive portions:
Staples the exit set in
Staple-sort mode.
e Finisher middle
tray: Ejects copy
paper in Non-sort,
Sort, Group, or
Staple-sort mode.
r Finisher lower tray:
Ejects copy paper in Non-
sort, Sort, Group, or
Staple-sort mode.
y Cartridge holders: Holds staple
cartridges to be replaced when
supplying staples.
q Finisher upper tray: Ejects copy paper
in Non-sort mode.
