Basic Operations 6-13
Basic Operations
Lens Mode (continued)
Vertical/Horizontal Zoom
Use the Vertical/Horizontal zoom mode to reduce or
enlarge vertical and horizontal dimensions, independently.
❒ Vertical/Horizontal zoom range: 0.25~4.00
❒ Incompatible Basic Copying Conditions: APS, AMS
❒ Incompatible Applications: Reduce & Shift in Image Shift

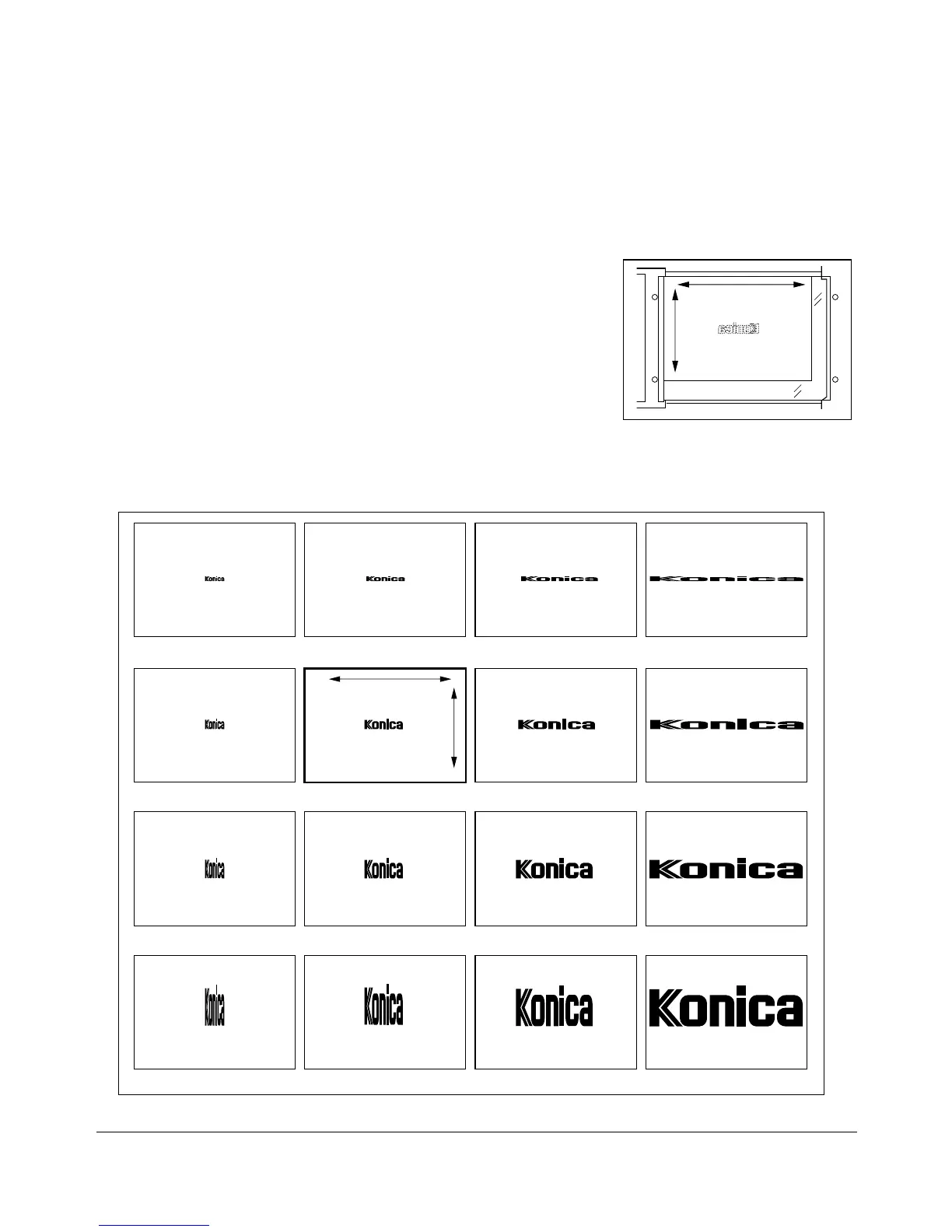

The figure shown below is the sample image using the Vertical/Horizontal zoom mode.
Length
Width
Length: 0.50, Width: 0.50
Length: 1.00, Width: 0.50
Length: 2.00, Width: 0.50
Length: 4.00, Width: 0.50 Length: 4.00, Width: 1.00 Length: 4.00, Width: 2.00 Length: 4.00, Width: 4.00
Length:2.00, Width: 1.00 Length:2.00, Width: 2.00 Length: 2.00, Width: 4.00
Length: 1.00, Width: 1.00 Length: 1.00, Width: 2.00 Length: 1.00, Width: 4.00
Length: 0.50, Width: 1.00 Length: 0.50, Width: 2.00 Length: 0.50, Width: 4.00
Width
Length
