10 Fuel extractor, type S

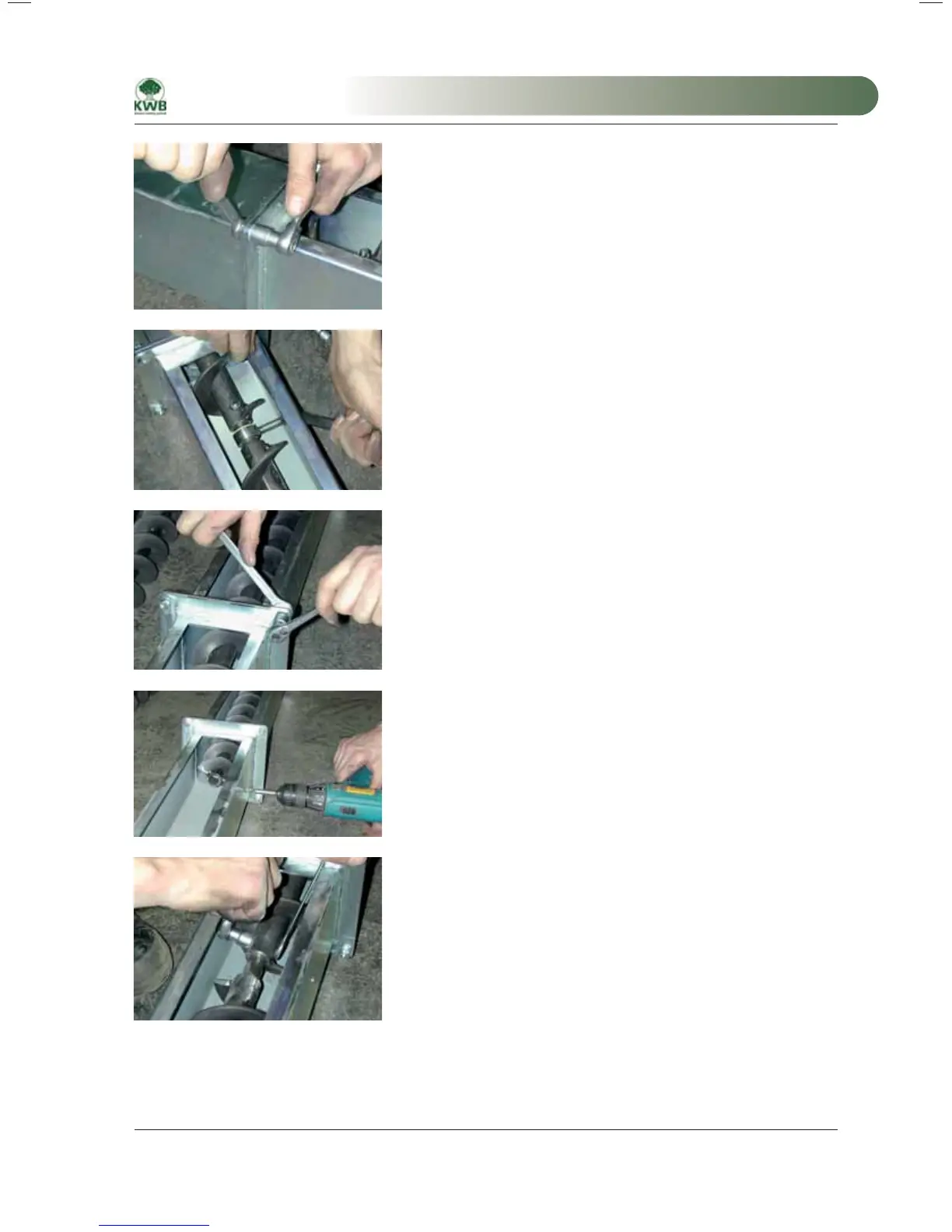

8.) Install the intermediate bearing
Guide the extension trough over the worm and bolt the two flanges
together
Connect the flanges
Guide the fastening bolts of the intermediate bearing through the
prepared bore of the side wall of the trough. Tighten the connection
and ensure that the bearing bush is in the aligned position. To do
this maintain the intermediate bearing at the appropriate position.
At this point a support is no longer necessary for the worm, as the
ends of the long worm elements are already permanently supported.
Repeat the procedure steps from step 6 for additional extensions.
If there are no extensions continue with step 11.
Fasten the intermediate bearing
9.) Extension trough without intermediate bearing
Guide the extension trough over the projecting worm and bolt the
flanges together.
Channel extension without intermediate bearing
The prepared bore for the intermediate bearing is not required and it
must be sealed with the provided bolt.
Seal the bearing bore
10.) Mount the conveyor worm extension
Guide the extension worm through the extension trough into the
hollow shaft. Twist the winding ends so that they are positioned
approximately 180° to each other and so that the cross hole is flush.
Insert the connecting bolt and bolt the connection together.
If additional extensions are necessary repeat the process from step 6
(with intermediate bearing) or step 9 (without intermediate bearing).
Otherwise continue with step 11.
If additional extensions are necessary repeat the process from step 6
(with intermediate bearing) or step 9 (without intermediate bearing).
Otherwise continue with step 11.
Worm extension without intermediate bearing
