KWB Easyfire Installation And Maintenance Manual

© KWB – Kraft und Wärme aus Biomasse GmbH IM Easyfire 10/2008 Page 137
17 Pellet stirrer
17 Pellet stirrer
17 FUEL EXTRACTOR SYSTEM, TYPE R pellet stirrer
Pellet storage room
17.1 Requirements, pellet storage room (for type R)
Comply with the instructions in points 1.3 to 1.3.2 in the introduction!
Boiler room and storage room construction
KWB Easyfire
Fuel extractor with stirrer
Fire extinguisher
Boiler room door
T30 100/120
Boiler room
Pellet storage
Rock wool
Incline
max. 30°
Storage room door
T30 80/120
Ricochet protection mat
Cleaning door, top
Sweep door, bottom
Energy-saving damper
Detonation damper
Fill nozzle and suction nozzle
Vent opening
STOP
SWITCH
Wood planks
to slide in
(Distance 50 – 100 cm
20 cm to the ceiling

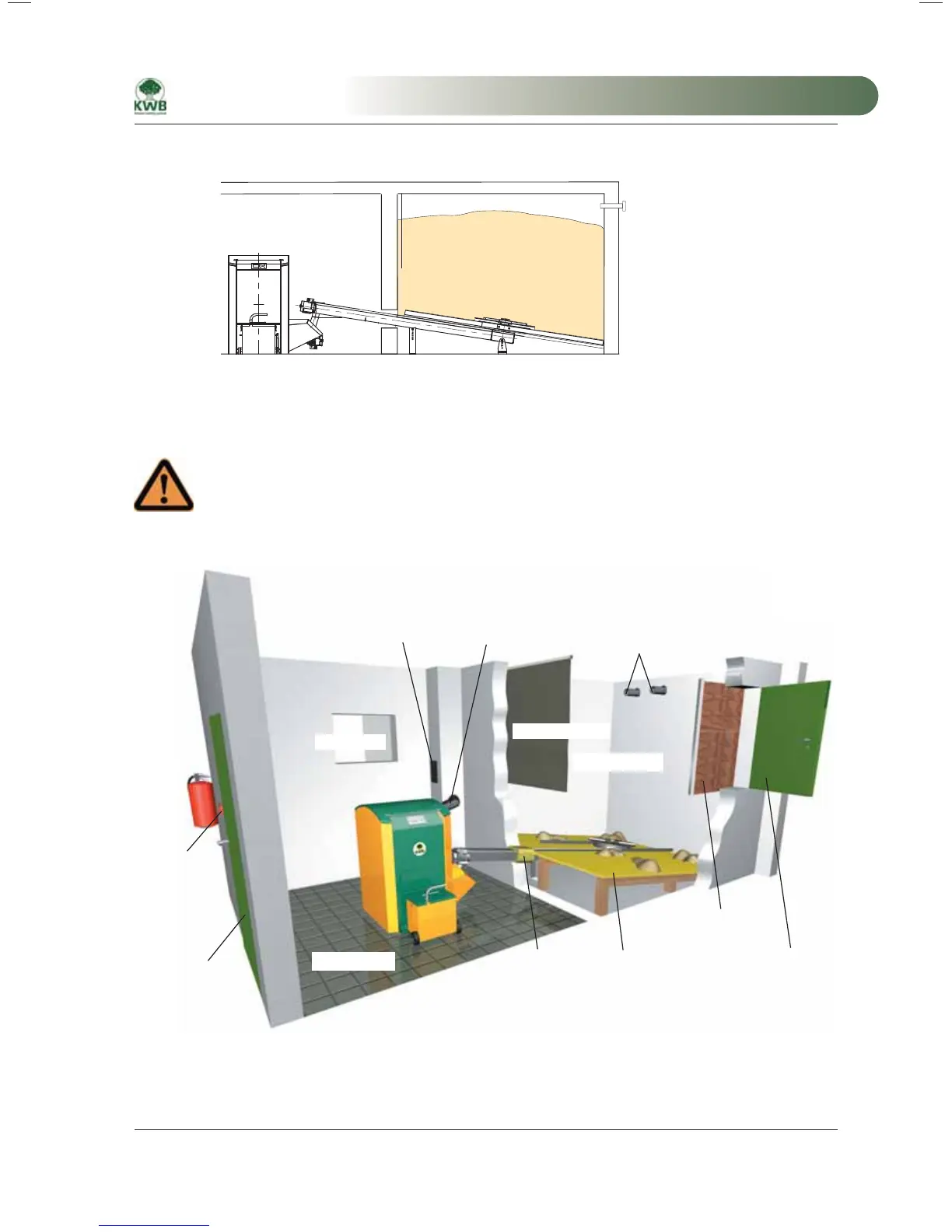

Boiler room and storage room execution KWB Easyfire R
MA-Easyfire 10.2008_EN.indd 137MA-Easyfire 10.2008_EN.indd 137 30.03.2009 13:31:34 Uhr30.03.2009 13:31:34 Uhr

KWB Easyfire Specifications

General

Fuel Type	Wood pellets
Cleaning System	Automatic heat exchanger cleaning
Emission Class	5
Nominal Heat Output	10 kW
Type	Pellet heating system
Ash Removal	Automatic
Heating capacity	10 kW
Hopper capacity	15 kg
Flue diameter	130 mm
