KWB Easyfire Installation And Maintenance Manual

Page 160 IM Easyfire 10/2008 © KWB – Kraft und Wärme aus Biomasse GmbH
18.1 Dimension sheets
18.1 Dimension sheets

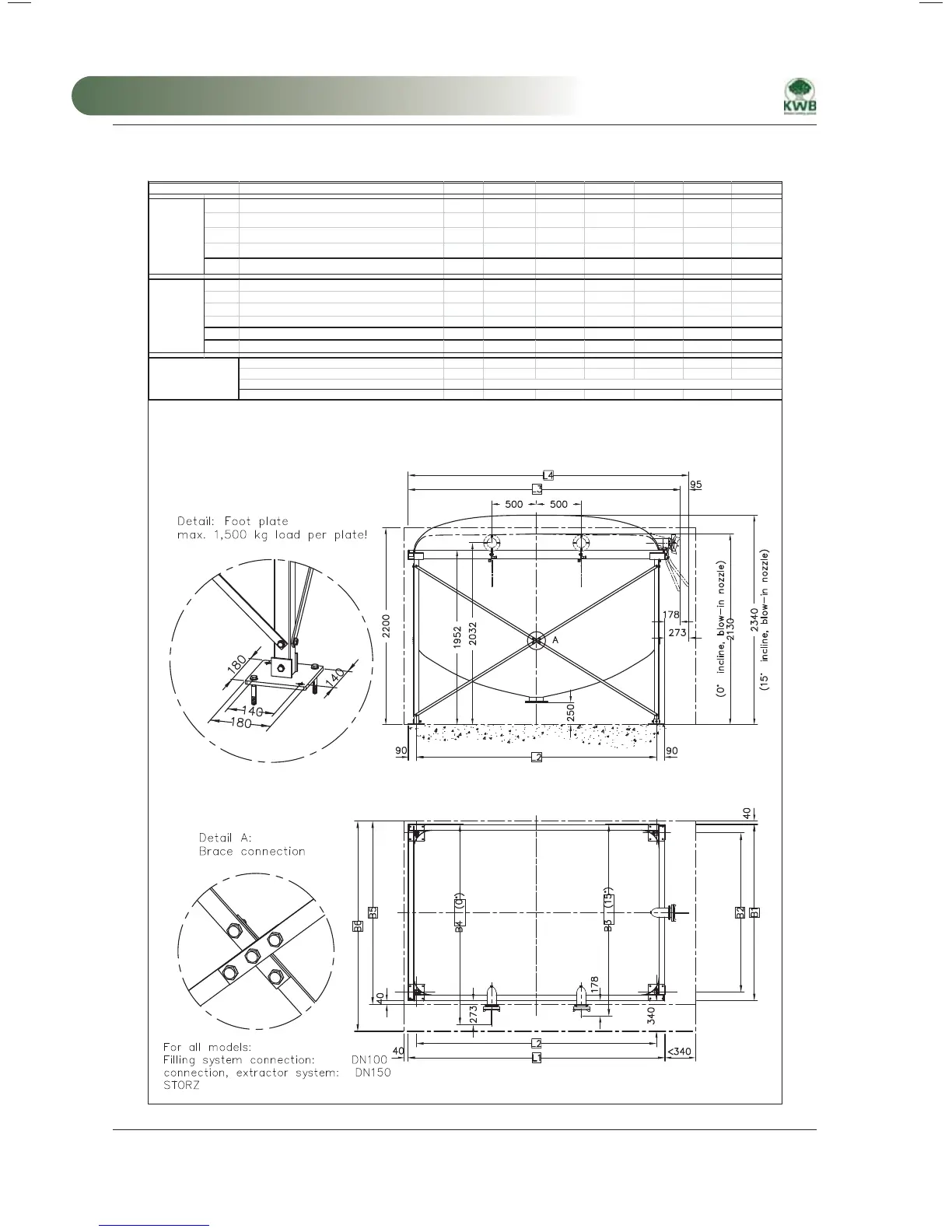

Pellet fabric tank, dimension sheet for all sizes TDB-MBL-USP-MBDK0007_d
Dimension description Unit ZG3000 ZG3400 ZG3500 ZG4000 ZG4800 ZG5000
L1
Frame exterior dimensions (length) [m m ] 1970 2270 2270 2870 2870 2870
L2
Axial dimension, floor plate (length) [m m ] 1780 2080 2080 2680 2680 2680
L3
M ax . length for injec tion noz z le 15° [m m ] 2138 2438 2438 3038 3038 3038
L4
Max. length for injection nozzle 0° [mm] 2233 2533 2533 3133 3133 3133
L5 Min. room length
[mm]
2350 2650 2650 3250 3250 3250
B1
Frame exterior dimensions (width) [mm] 1970 1970 2270 1970 2270 2870
B2
Axial dim ension floor plate (width) [mm] 1780 1780 2080 1780 2080 2680
B3
Max. width for nozzle 15° long side [mm ] 2138 2138 2438 2138 2438 3038
B4
Max. width for nozzle 0° long side [mm ] 2233 2233 2533 2233 2533 3133
B5 Min. room width without nozzle long side
[mm]
2050 2050 2350 2050 2350 2950
B6 Min. room width with nozzle long side
[mm]
2350 2350 2650 2350 2650 3250
Num ber of fill nozzles Pc. 1 1 - 2 1 1 - 3 1 - 3 1 - 2
Longest individual part [mm] 1920 2175 2175 2775 2775 2775
W eight without filling and without nozzle [kg]
Fill qua ntity [t] 2,8 - 3,2 3,0 - 3,4 3,1 - 3,7 3,5 - 4,0 4,2 - 4,8 4,6 - 5,4
Dimension no.
~ ( 1 9 5 - 2 6 0 )
General
Length dimensionsWidth dimensions
MA-Easyfire 10.2008_EN.indd 160MA-Easyfire 10.2008_EN.indd 160 30.03.2009 13:32:04 Uhr30.03.2009 13:32:04 Uhr

KWB Easyfire Specifications

General

Fuel Type	Wood pellets
Cleaning System	Automatic heat exchanger cleaning
Emission Class	5
Nominal Heat Output	10 kW
Type	Pellet heating system
Ash Removal	Automatic
Heating capacity	10 kW
Hopper capacity	15 kg
Flue diameter	130 mm
