© KWB – Kraft und Wärme aus Biomasse GmbH IM Easyfire 10/2008 Page 161
18.1 Dimension sheets
18.1 Dimension sheets

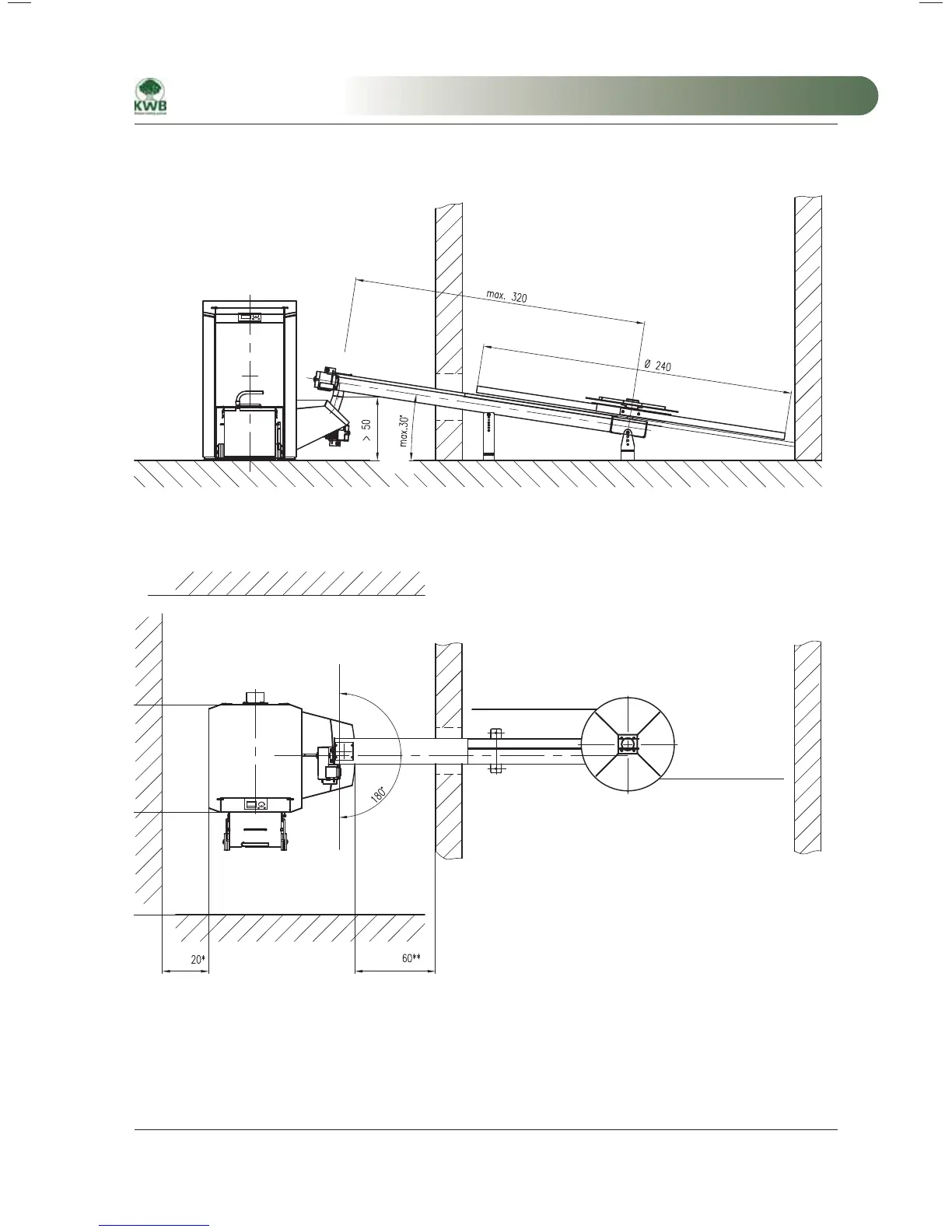

Fitting dimensions, KWB Easyfire R stirrer TDB-MBL-USP-Einbaumaße_d sheet 2
Outline
Ground plan
* The rear of the boiler must be accessible! (On one side at least 60 cm – on the other side at least 20 cm)
** At least 30 cm must remain free on the fill side of the fabric tank!
The fire door control system (F90 wall) is only necessary in Austria!
Germany: Minimum distance 100 cm between fabric tank and boilers to 50 KW!
Chimney/ smoke pipe connection from the floor: 10 - 20 KW at least 70 cm, 25 - 30 kW at least 85 cm, at least 20 cm to the ceiling
min.
min.
at least 50 cm to the edge of the drop shaft
Dimensions in cm
MA-Easyfire 10.2008_EN.indd 161MA-Easyfire 10.2008_EN.indd 161 30.03.2009 13:32:05 Uhr30.03.2009 13:32:05 Uhr

KWB Easyfire Specifications

General

Fuel Type	Wood pellets
Cleaning System	Automatic heat exchanger cleaning
Emission Class	5
Nominal Heat Output	10 kW
Type	Pellet heating system
Ash Removal	Automatic
Heating capacity	10 kW
Hopper capacity	15 kg
Flue diameter	130 mm
