11 Fuel extractor, type S with fabric tank

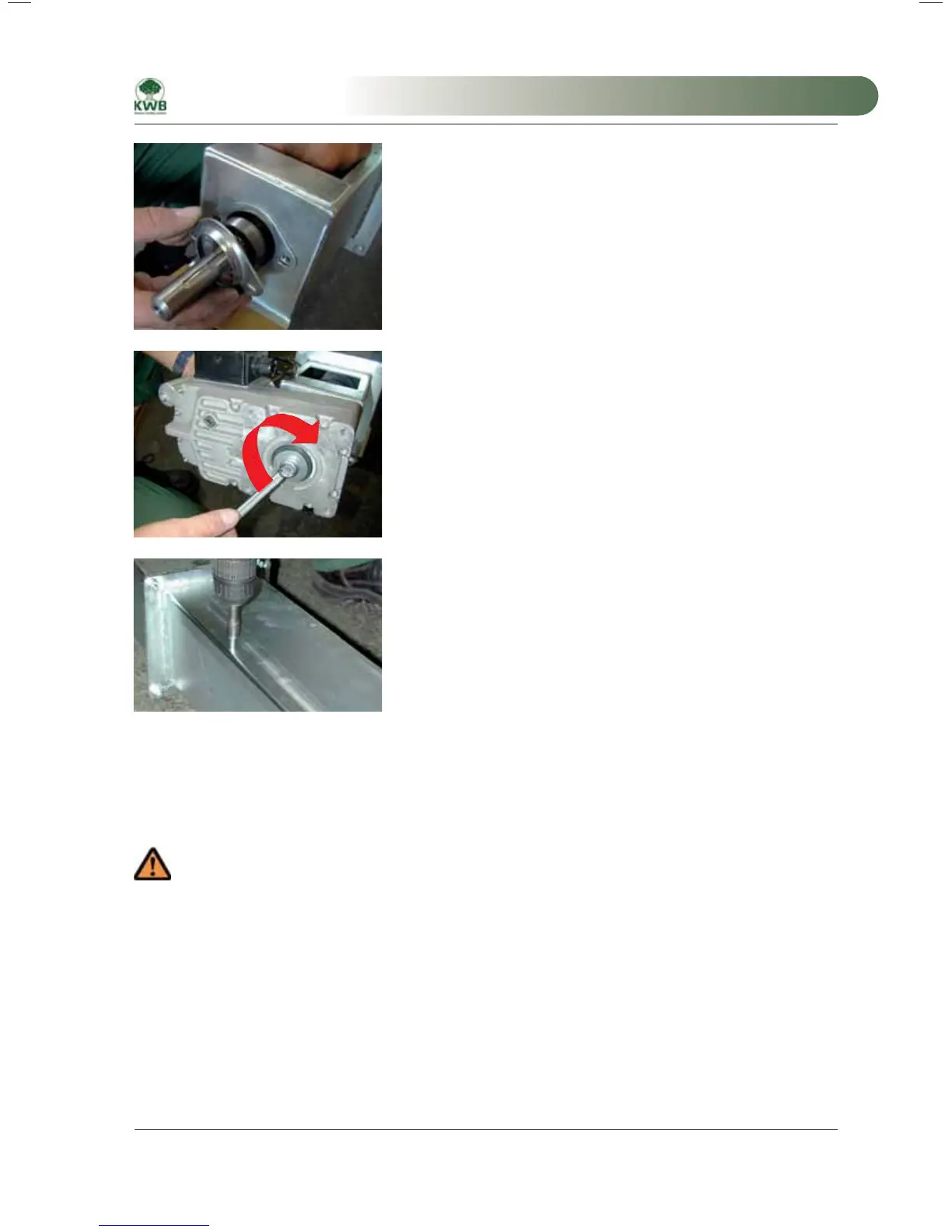

11.) Install the flange bearing
Mount the bearing on the motor shaft.
In this process first remove the feather key from the motor shaft, if you
have not removed the feather key the bearing cannot be pushed on.
Manually lift the motor shaft so that you can align the bearing.
Bolt the bearing housing tightly with the two bolts and re-insert the
feather key. To do this use a rubber mallet to avoid damage.
Install the flange bearing
12.) Install the drive motor
Slide the drive motor onto the motor shaft . Bolt the end of the motor
shaft with the large shim and tighten the bolt.
The direction of motor rotation is right-hand rotation, i.e. clockwise
rotation (see photo).
Set up the drive motor
13.) Seal the troughs
Ensure that there are no foreign objects (tools, shim material, etc.) that
have been forgotten in the fuel extractor.
Seal all opened covers with the bore bolts 5.5 x 16
Close the troughs
11.2.1 FE connection on the burner see point 10.7
11.3 Final inspection
Ensure that ALL components and connections are correctly installed!
To conclude, ensure that the conveyor system is free of foreign objects!
