11 Fuel extractor, type S with fabric tank

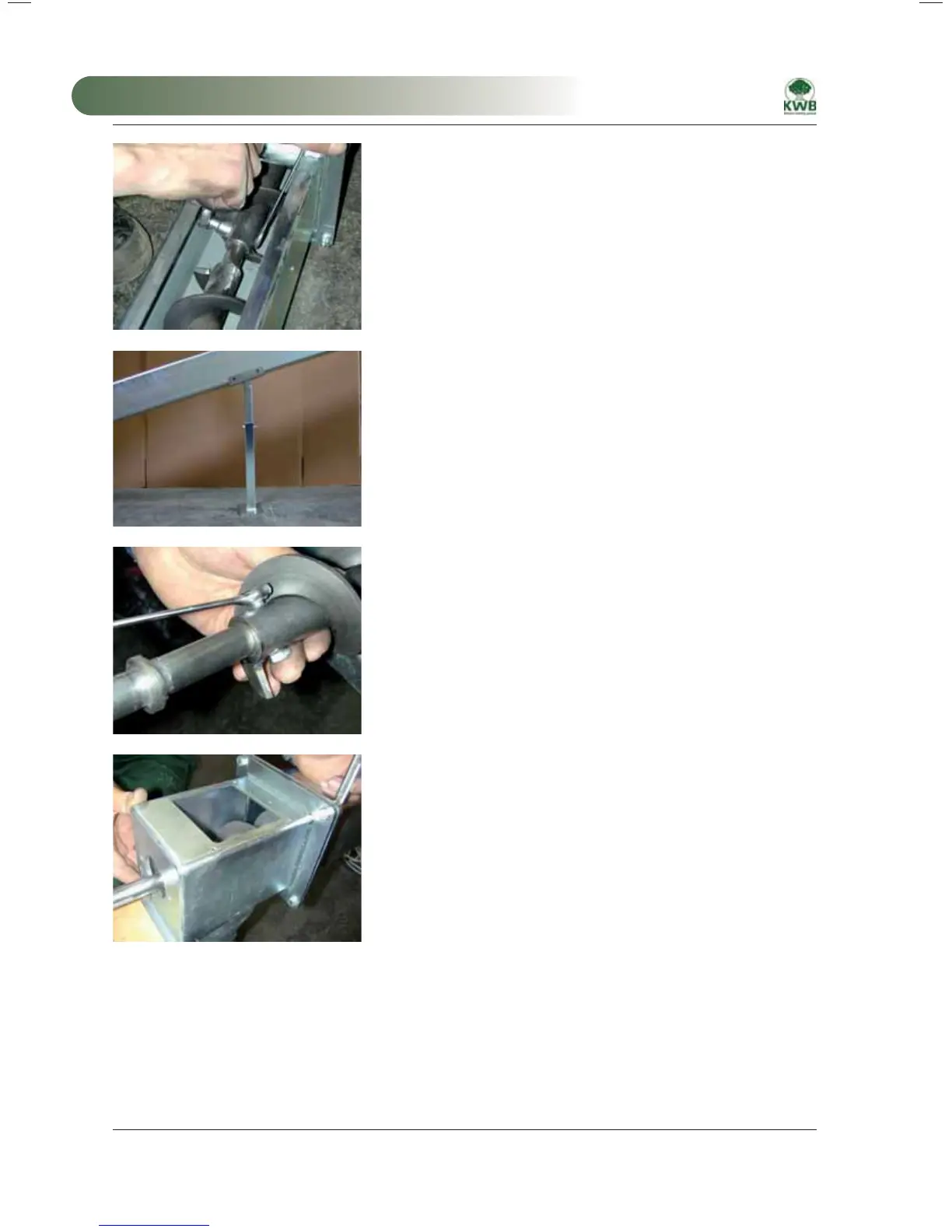

7.) Install the conveyor worm extension
Guide the extension worm through the extension trough into the hollow
shaft. Twist the winding ends so that they are approximately 180°
relative to each other and so that the cross hole is flush. Insert the
connecting bolt and bolt the connection together.
If additional extensions are necessary repeat the process from step 6
(with intermediate bearing ) or step 6 (without intermediate bearing).
Otherwise continue with step 8.
Worm extension without intermediate bearing
8.) Install the trough support
Adjust the height of the trough support as needed.
Mount the trough support as close as possible to the boiler. Bolt the
saddle on the trough.
Anchor the trough support on the solid floor and tighten all bolts.
Install the trough support
9.) Install the motor shaft
Connect the motor shaft to the conveyor worm using connecting bolts.
Tighten the connection.
Install the motor shaft
10.) Fit the drop shaft
Dismount the drop shaft cover. Now fit on the drop shaft by sliding the
motor shaft through the round opening on the facing side.
Bolt the drop shaft onto the worm trough and tighten the connection.
Fit the drop shaft
