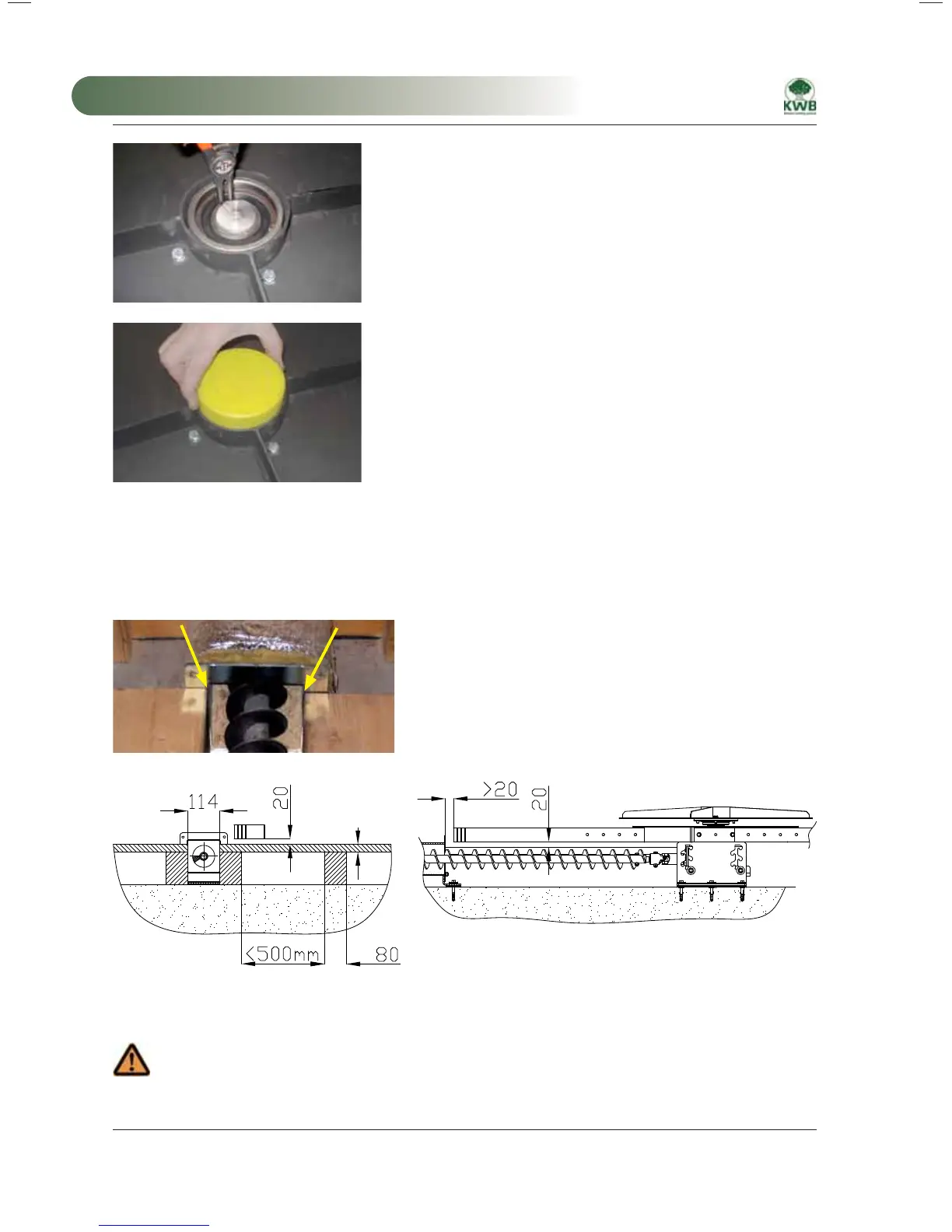

12 Pellet Stirrer Plus
20.) Secure the stirrer plate
Secure the stirrer plate axially with the lock ring.
21.) Install the protective cap
Install protective cap
Floor cladding in the storage room
If you have a solid, smooth, dry floor you can dispense with cladding. The low residual quantity of pellets can be
used as an “iron reserve”.
If you clad the floor in the storage room follow the instructions below:
• Lay out the cladding to the inner edges of the conveyor trough
(maximum).
• The cladding must be at least 20 mm lower than the two
spring blades (see the diagram below).
Strictly ensure that you maintain the minimum distances!
[mm]
> 27
12.9 Final inspection
Ensure that ALL components and connections are correctly installed!
To conclude, ensure that the conveyor system is free of foreign objects!
