KWB Easyfire Installation And Maintenance Manual

© KWB – Kraft und Wärme aus Biomasse GmbH IM Easyfire 10/2008 Page 123

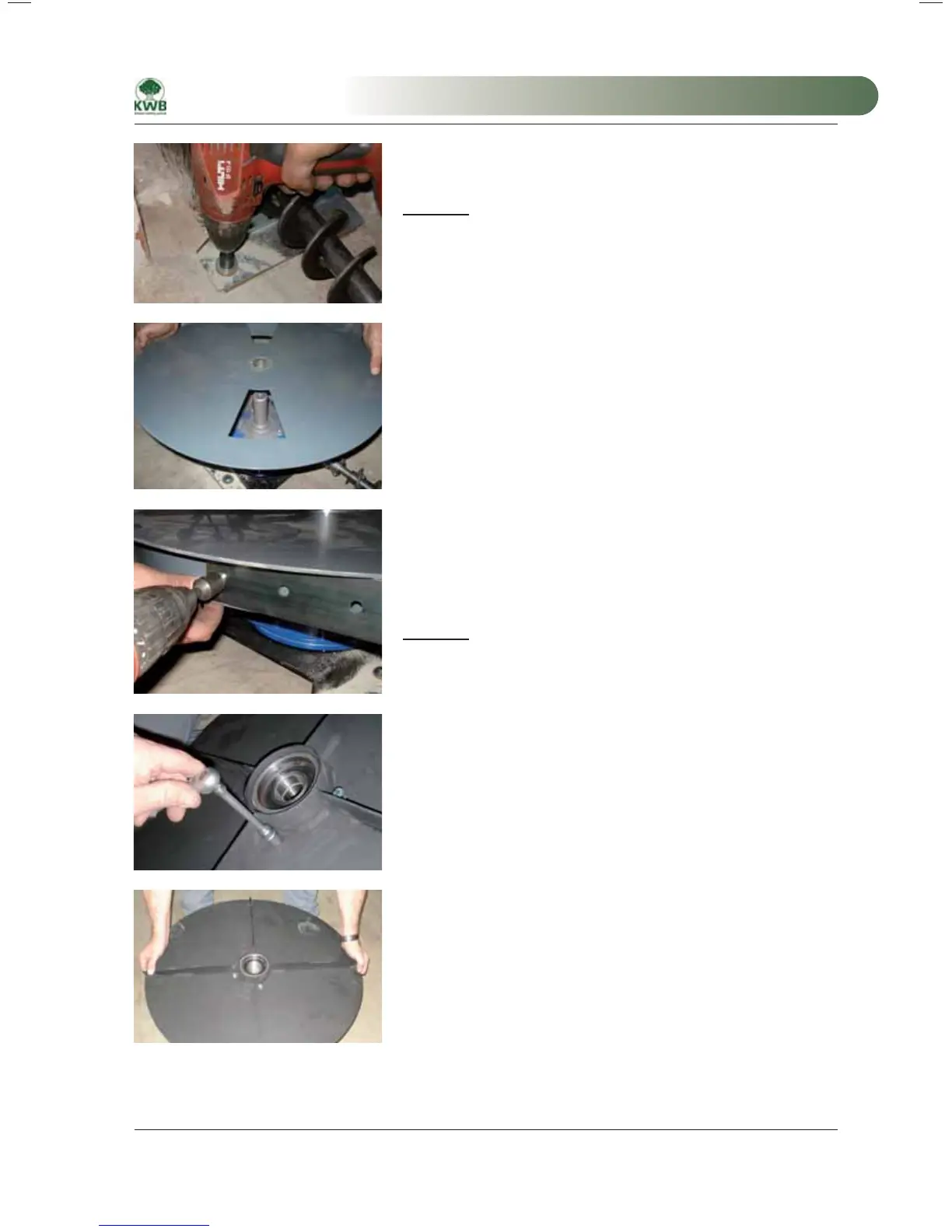

12 Pellet Stirrer Plus
12 Pellet Stirrer Plus
15.) Bolt on the fuel extractor
Anchor the complete fuel extractor to the floor with the floor plugs.
Attention!
The fuel extractor, in particular, must be aligned in such a manner
that the conveyor worm can be easily turned (by hand) and is not
under tension. If this is not the case, loosen the floor plugs or re-
adjust the support brackets.
16.) Place the stirrer disk
Ensure the correct seat of the feather key of the vertical gear unit
shaft.
Grease the gear unit shaft and place the stirrer disk on the gear unit
17.) Mount the spring arms
Mount the spring arms
If the spring arms are too long for the storage room, select the
appropriate bores.
Attention!
If the spring arms project opposite of the direction of rotation then
you must shorten the spring arms after the bores.
18.) Install the bearing housing
Install the bearing housing
19.) Install the stirrer plate
Install stirrer plate
MA-Easyfire 10.2008_EN.indd 123MA-Easyfire 10.2008_EN.indd 123 30.03.2009 13:31:10 Uhr30.03.2009 13:31:10 Uhr

KWB Easyfire Specifications

General

Fuel Type	Wood pellets
Cleaning System	Automatic heat exchanger cleaning
Emission Class	5
Nominal Heat Output	10 kW
Type	Pellet heating system
Ash Removal	Automatic
Heating capacity	10 kW
Hopper capacity	15 kg
Flue diameter	130 mm
