© KWB – Kraft und Wärme aus Biomasse GmbH IM Easyfire 10/2008 Page 23
2 System installation
2 System installation

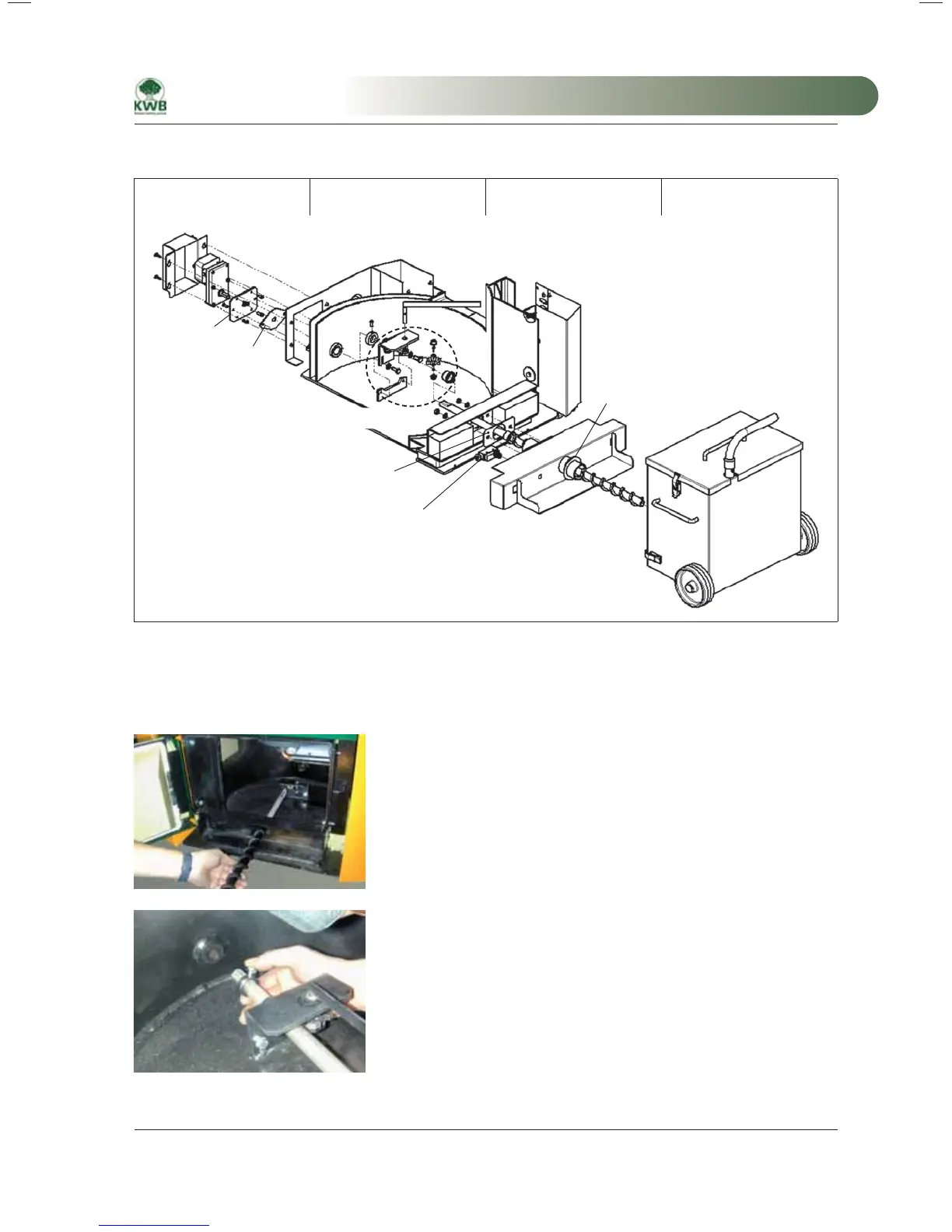

2.1.5 Automatic ash removal (AR)
External drive Stirrer Ash worm External ash container
Drive
Installation plate
Sealing plate
Cover, drive
Front cover
Limit switch
(Safety STOP switch)
Ash worm
Ash container
Sealing ring
Insulation plate
Parts of the auto. ash removal system
Please note:
In the front cover there is a limit switch ( safety STOP switch). The system is switched off when the ash container
is removed.
1.) Introduce the ash worm
Open the boiler door.
Guide the ash worm through the round opening below the door frame,
from the front.
Push it further through the middle bearing in the ash chamber.
Introduce the ash worm
2.) Thread the adjusting ring onto the ash worm
Thread the adjusting ring onto the ash worm.
Turn the ash worm so that it can be guided past the wiper wheel.
Adjusting ring
Stirrer
MA-Easyfire 10.2008_EN.indd 23MA-Easyfire 10.2008_EN.indd 23 30.03.2009 13:29:55 Uhr30.03.2009 13:29:55 Uhr

KWB Easyfire Specifications

General

Fuel Type	Wood pellets
Cleaning System	Automatic heat exchanger cleaning
Emission Class	5
Nominal Heat Output	10 kW
Type	Pellet heating system
Ash Removal	Automatic
Heating capacity	10 kW
Hopper capacity	15 kg
Flue diameter	130 mm
