KWB Easyfire Installation And Maintenance Manual

© KWB – Kraft und Wärme aus Biomasse GmbH IM Easyfire 10/2008 Page 159

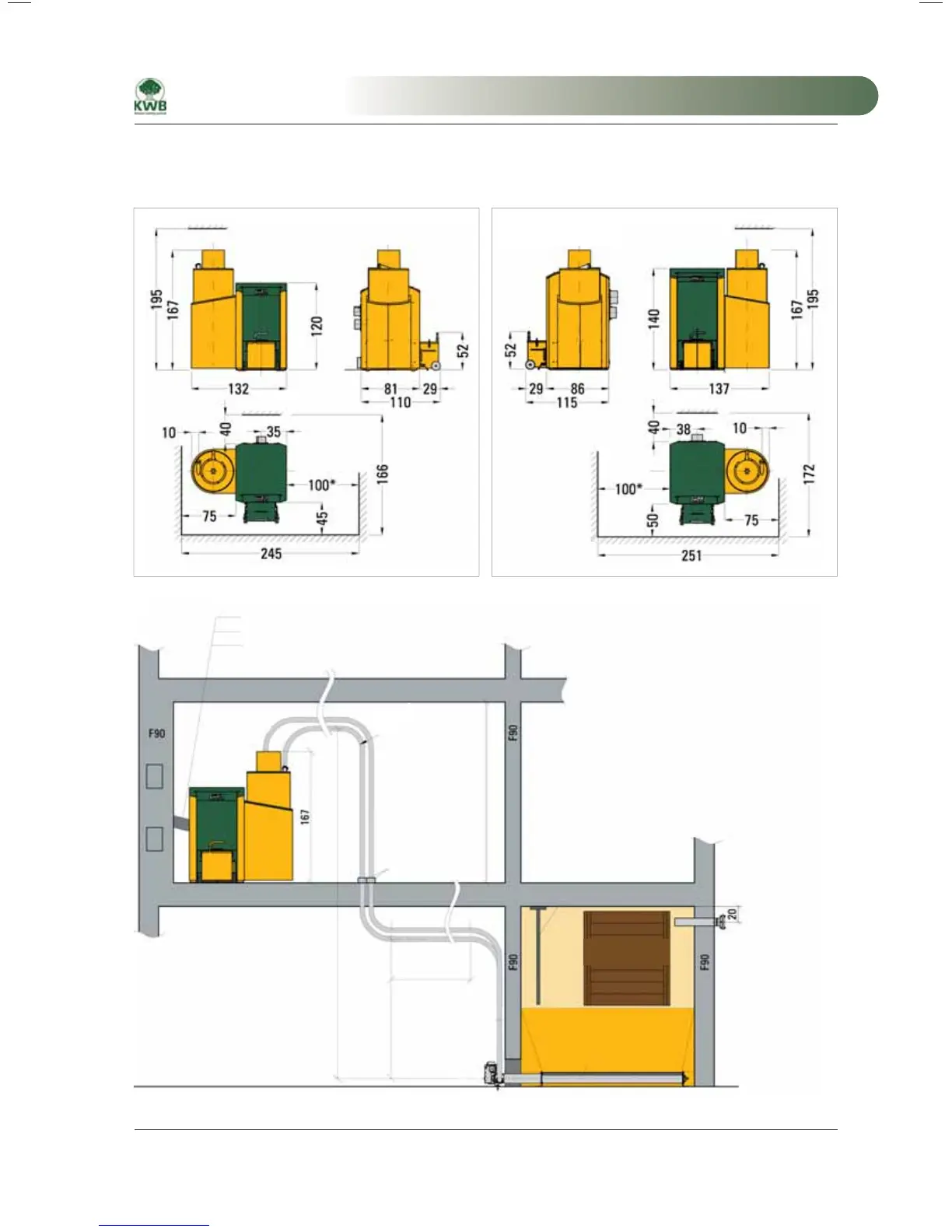

18.1 Dimension sheets
18.1 Dimension sheets
Fitting dimensions, KWB Easyfire GL, GS
with suction conveyor unit and worm
25 - 30 kW
GS, GL 25 - 30 kWGS, GL 10 - 20 kW
Min. 30
Boiler
Room
Solid ceiling F90
Ceiling opening ; 70 mm
Fire-safety collar
Solid ceiling F90
Solid ceiling F90
Min. RL 200
Ricochet protection mat
Conveyor Worm
Inclined floor
Wooden boards
Min. 100
per “step”
Total lift 5 m
without step max. 300
Pellet transport hose
max. length 25 m
Chimney diameter and smoke-pipe
execution in accordance with the
“Technical Data Table“ energy saving
damper ; 15 cm with explosion door
Hose Guide
• Max. total lift 5 m
• Max. total lift without step 3 m
• At the latest after 3 m height difference 1 m route horizontally
• All conveyor hose bend radii at least 30 cm.
MA-Easyfire 10.2008_EN.indd 159MA-Easyfire 10.2008_EN.indd 159 30.03.2009 13:31:59 Uhr30.03.2009 13:31:59 Uhr

KWB Easyfire Specifications

General

Fuel Type	Wood pellets
Cleaning System	Automatic heat exchanger cleaning
Emission Class	5
Nominal Heat Output	10 kW
Type	Pellet heating system
Ash Removal	Automatic
Heating capacity	10 kW
Hopper capacity	15 kg
Flue diameter	130 mm
