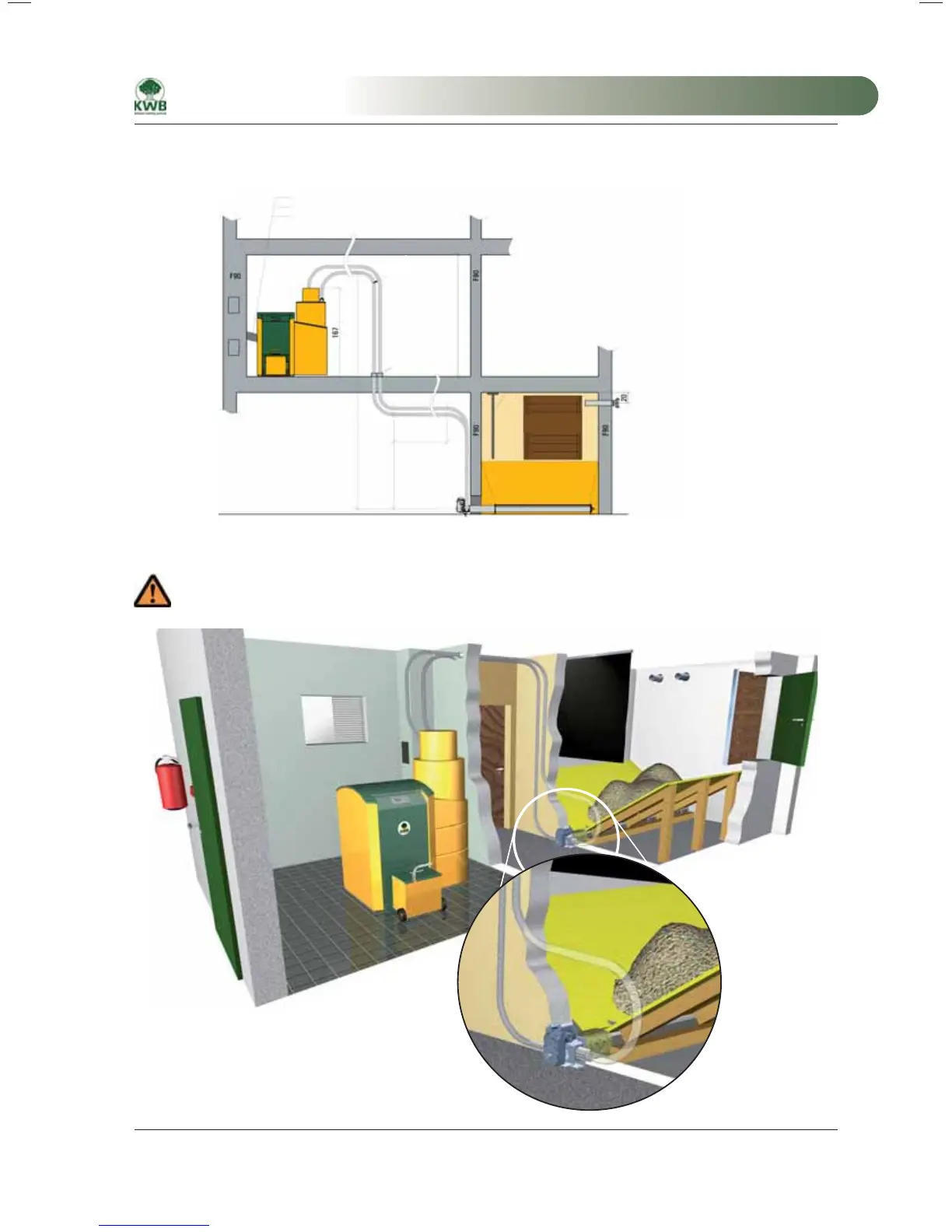

13 Suction conveyor
13 FE “GS” SUCTION CONVEYOR, PELLET WORM
Min. 30
Boiler
Room
Solid ceiling F90
Ceiling opening ; 70 mm
Fire-safety collar
Solid ceiling F90
Solid ceiling F90
Min. RL 200
Ricochet protection mat
Conveyor Worm
Inclined floor
Wooden boards
Min. 100
per “step”
Total lift 5 m
without step max. 300
Pellet transport hose
max. length 25 m
Chimney diameter and smoke-pipe
execution in accordance with the
“Technical Data Table“ energy saving
damper ; 15 cm with explosion door
Hose Guide
• Max. total lift 5 m
• Max. total lift without step 3 m
• At the latest after 3 m height difference 1 m route horizontally
• All conveyor hose bend radii at least 30 cm.
13.1 Requirements, pellet storage room (type GS fan, pellet worm, V-sloping floor)
Comply with the instructions in points 1.3 to 1.3.2 in the introduction!
Boiler room and storage room construction
MA-Easyfire 10.2008_EN.indd 125MA-Easyfire 10.2008_EN.indd 125 30.03.2009 13:31:13 Uhr30.03.2009 13:31:13 Uhr
