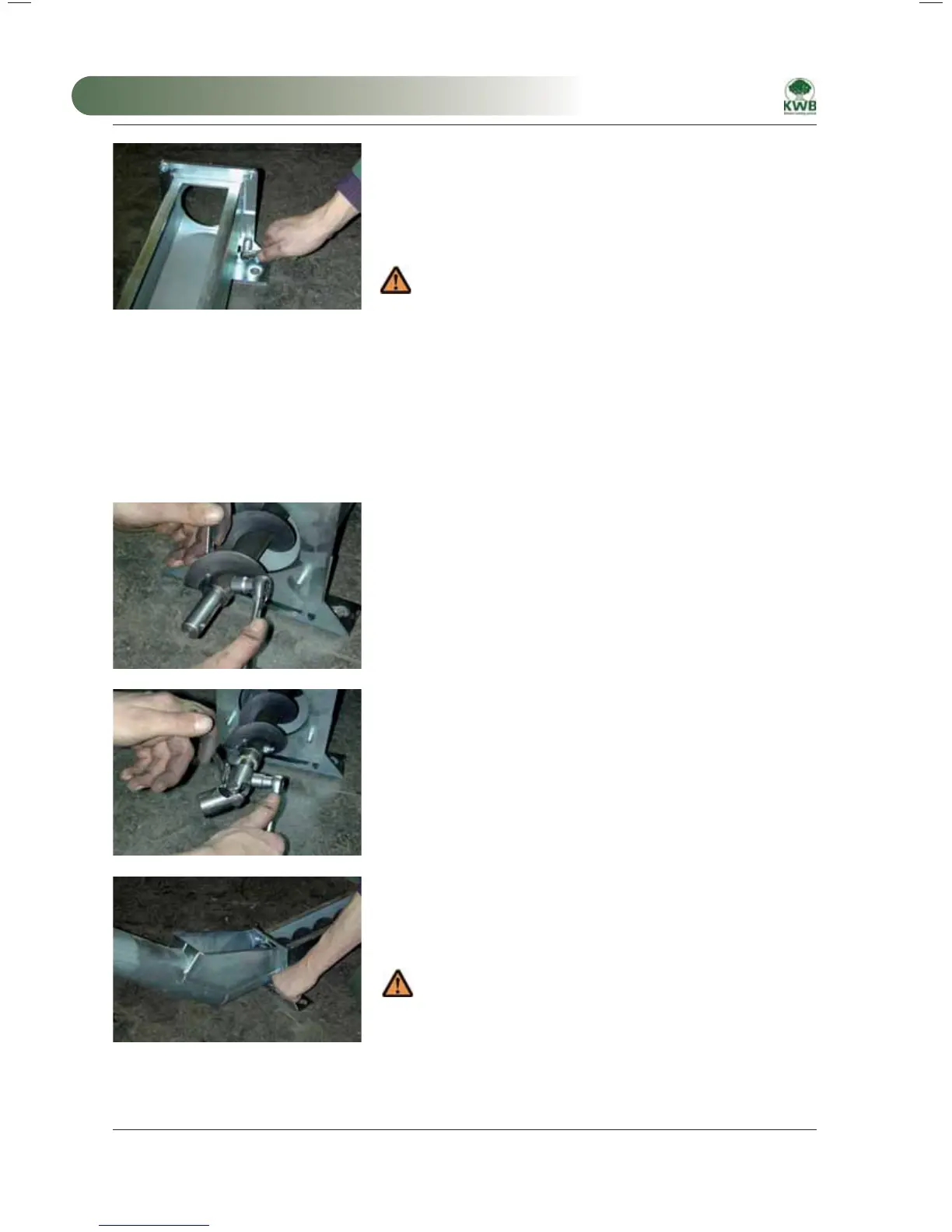

10 Fuel extractor, type S
11.) Install the intermediate flange and support bracket
Guide the intermediate flange that forms the transition from the square
to the round cross section at the end of the worm trough with its four
reduced-shank bolts into the trough flange.
A support bracket is provided starting from an extension of
1.2 m (see module drawing).
Guide the foot to the trough flange from the rear. Screw the foot onto
the bolts that protrude through the channel trough of the facing plate,
moderately tight. The support element must again be set-up at the final
installation position as part of the alignment of the fuel extractor.
When installing an elbow worm proceed with step 12.
When installing a worm with drop shaft proceed with step 18.
Install the support bracket
10.5 Installing the elbow worm
12.) Install the universal joint
Insert the connecting shaft into the hollow shaft end. Align the cross
hole so that it is flush. Insert the connecting bolt and tighten it.
Connecting shaft
Slide the intermediate bearing and the universal joint onto the connecting
shaft. Align the cross hole so that it is flush. Insert the connecting bolt
and tighten it.
Universal joint
13.) Installing the ascending trough
Join the ascending trough to the flange on the bolts of the facing plate.
Tighten the bolts but only tighten them moderately.
Only tighten the bolts completely when the entire fuel
extractor has been aligned and is in final install position.
Ascending trough
MA-Easyfire 10.2008_EN.indd 104MA-Easyfire 10.2008_EN.indd 104 30.03.2009 13:30:49 Uhr30.03.2009 13:30:49 Uhr
