KWB Easyfire - Base Module with Weather-Sensitive Control System, One Expansion Module and a Combination Buffer as Load Compensator

220 pages

To Next Page

To Previous Page

Page 174 IM Easyfire 10/2008 © KWB – Kraft und Wärme aus Biomasse GmbH

18.2 Hydraulic diagrams

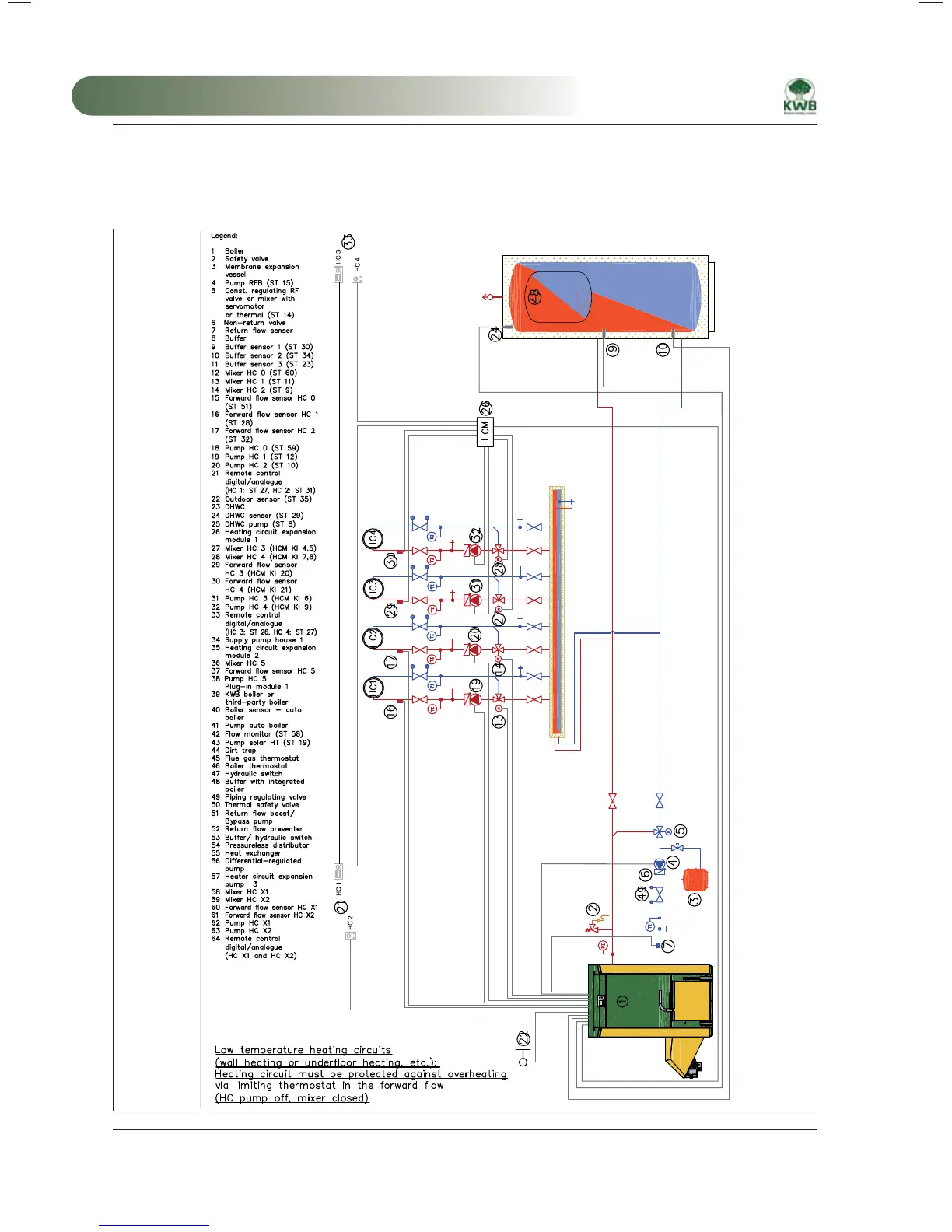

Base module with weather-sensitive control system,

one expansion module

and a combination buffer as load compensator

MBEH0007_b sheet 1/2
