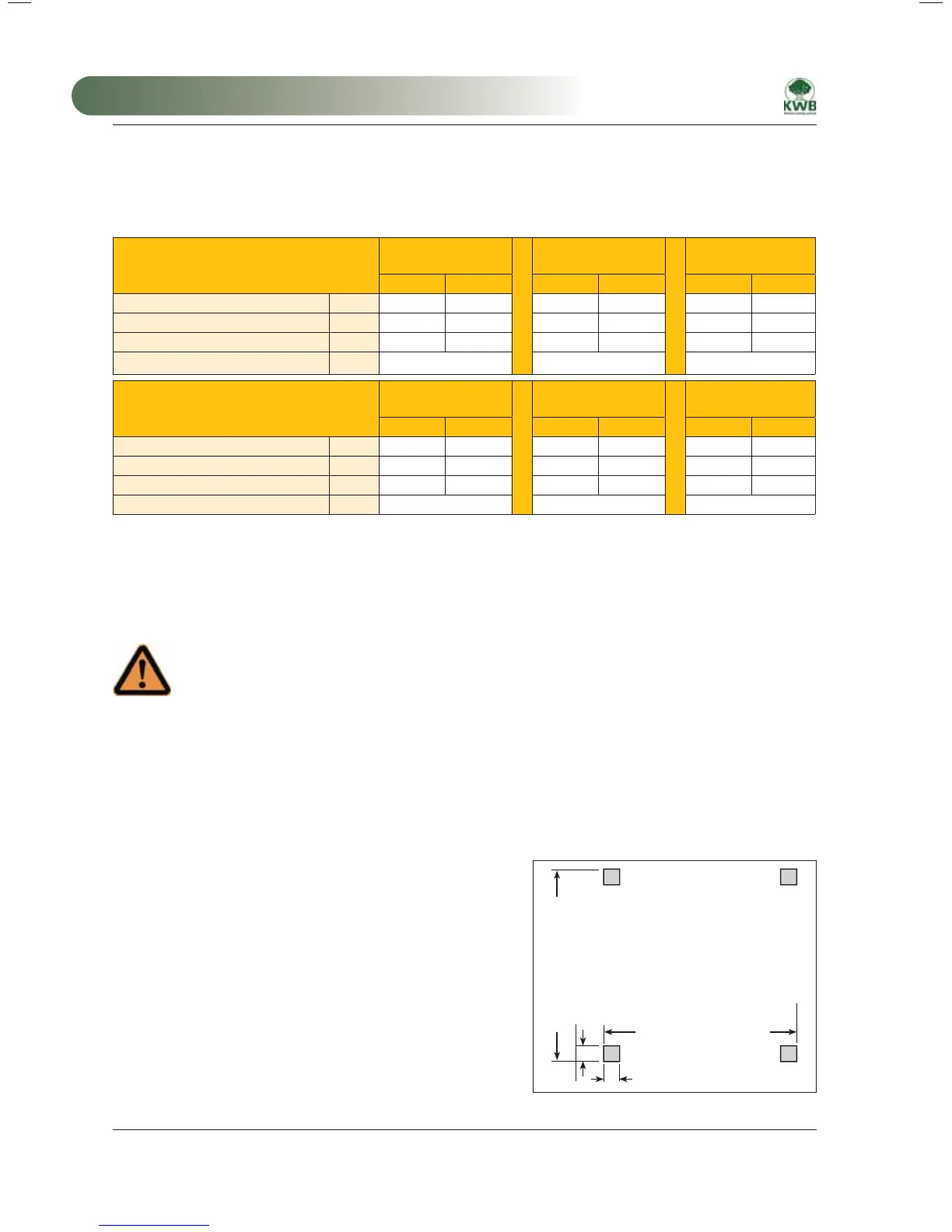

9 Fabric tank
9.3 Room size
The minimum required room size can be determined with information provided in the technical data sheet MBL-USP-
MBDK0007 or in the following table.
Minimum room height of 220 cm is strictly required!
Tank type– square Fabric tank
ZG 3000
Fabric tank
ZG 3500
Fabric tank
ZG 5000
Length Width Length Width Length Width
Minimum room dimensions [cm] 205 205 235 235 295 295
Fill side [cm] + 30 – + 30 – + 30 –
Minimum room size* [cm] 235 205 265 235 325 295
Fill quantity ** [t] 2,8 - 3,2 3,1 - 3,6 4,6 - 5,4
Tank type– rectangular Fabric tank
ZG 3400
Fabric tank
ZG 4000
Fabric tank
ZG 4800
Length Width Length Width Length Width
Minimum room dimensions [cm] 235 205 295 205 295 235
Fill side [cm] + 30 – + 30 – + 30 –
Minimum room size* [cm] 265 205 325 205 325 235
Fill quantity ** [t] 3,0 - 3,4 3,5 - 4,0 4,2 - 4,8
9 Tank dimensions
* On the sides of the room where the fill units are attached, the room width must be at least 30 cm greater than
the minimum dimension. After cleaning re-check the minimum room size .
** Minimum fill quantity at a room height of 220 cm
** Minimum fill quantity at a room height of 240 cm
Please re-check the room dimensions before you start with the set-up.
9.4 Room fixtures
Room fixtures, such as drain pipes, ceiling hooks, water pipes, must be removed before setting up the fabric tank,
if these elements impair installation. There should be no pointed or sharp objects in the area of the fabric tank. If you
cannot remove such objects you must cover them.
9.5 Room condition
The floor must be horizontal or unevenness must be corrected with
substrates. The bearing capacity of the floor must be suitable for a
point load per vertical support of at least 1500 kg.
Normal cellar-moist walls are not a problem – however condensation
should not occur.
Fabric tank – base plates
ZG3000: 196 cm, ZG3400: 196 cm
ZG3500: 226 cm, ZG4000: 196 cm
ZG5000: 286 cm, ZG4800: 226 cm
Fabric tank – base plates
Configuration, foundation:
at least 1500 kg per plate
18
ZG3000: 196 cm, ZG3400: 226 cm
ZG3500: 226 cm, ZG4000: 286 cm
ZG5000: 286 cm, ZG4800: 256 cm
18
MA-Easyfire 10.2008_EN.indd 86MA-Easyfire 10.2008_EN.indd 86 30.03.2009 13:30:15 Uhr30.03.2009 13:30:15 Uhr
