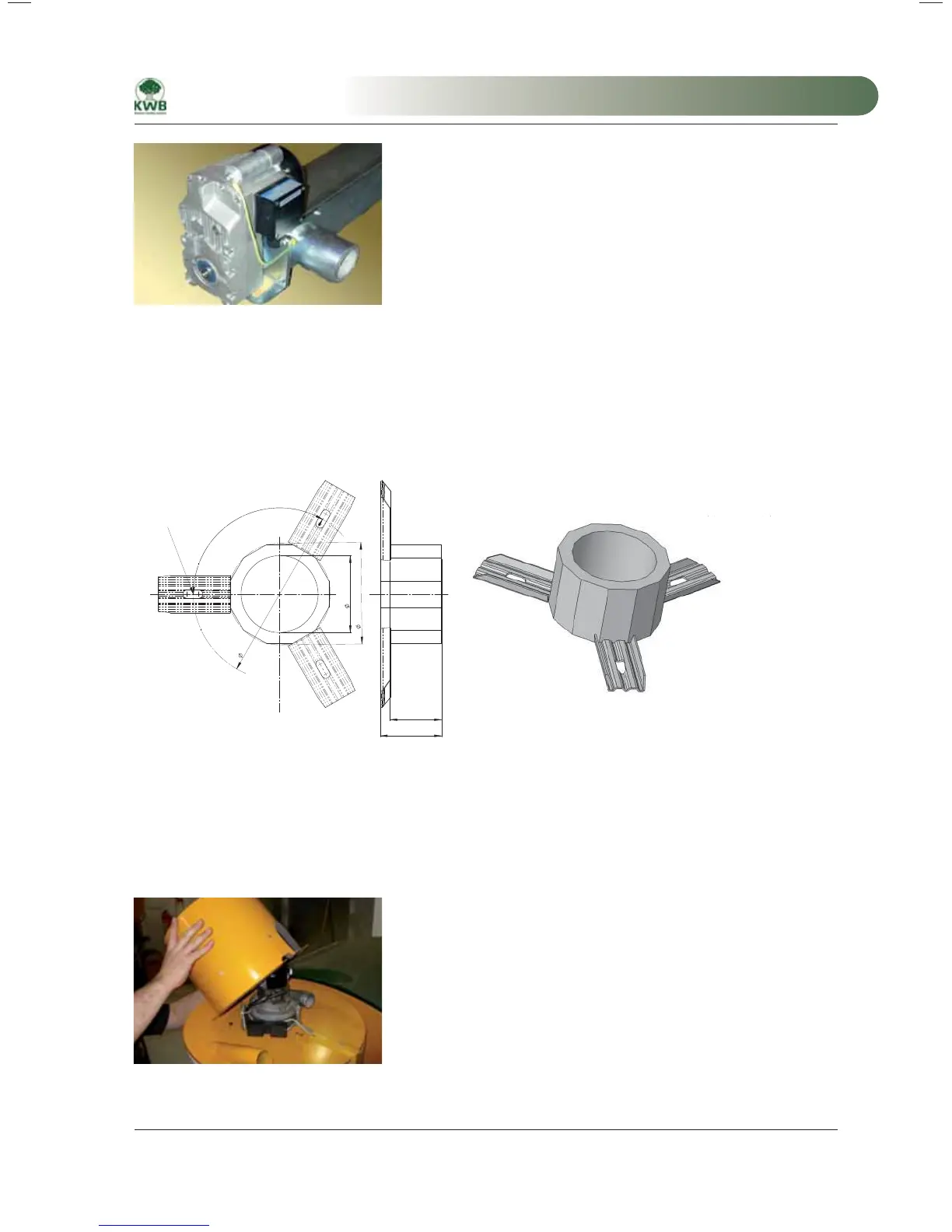

13 Suction conveyor
In order to reliably dissipate electrostatic charges of the conveyor
system you must connect the trough system of the fuel extractor and
the housing of the drive motor with an YM 10 mm² (yellow-green)
earthing cable in a manner that is electrically conductive.
13 Earthing cable
13.3.3 Fire safety
If hoses are routed through an adjacent room from the storage room to the heating room then a fire safety sleeve
(KWB special accessory) is required on the boiler room side of the hose passage.
All additional fire safety requirements naturally apply without limitation.
1
7
5
1
0
3
,
0
5
6Ø
3
-
7
Ø
5
1
2
0
°
62
52,20
Conveyor trough diameter: 63 mm – 75 mm
Install depth: 62 mm
KWB art. no.: 80302070
Incl. bolt set and plug set
Fastening with
M6 bolts
Fig. 71: Fire safety sleeve
13.3.4 Hose connection (boiler room)
The connection ducts are on the tank lid. They are configured for a 50 mm hose (inner diameter). The special
accessories (hose, wide clamp for the tank connection or fastening clamps, fire safety sleeves) are available from
KWB on request.
Dismount the suction turbine hood from the tank cover.
Take off the suction turbine hood.
MA-Easyfire 10.2008_EN.indd 129MA-Easyfire 10.2008_EN.indd 129 30.03.2009 13:31:19 Uhr30.03.2009 13:31:19 Uhr
