13 Suction conveyor
•
The hose is held on the wall or ceiling with acoustically insulated hose clamps.
Pay attention to heating pipes or flue gas pipes that are not insulated.
The hoses can be used for temperatures to + 65 °C.
Standard hose diameter Ø 50 mm (penetration for transport hose A Ø 60 mm).
•
Hoses should always be accessible – do not attach any cladding!
•
The hose material is only suitable for indoor application – it is not UV resistant.
•
Do not cut the transport hose into sections!
Connection directly from the suction tank to the worm or lance connection:
•
Fasten the hoses with hose clamps.
(Fig. “13 Hose connection on the tank” and “13 Hose connection”)
The transport hose must be fastened to the container connection nozzle with an overfit hose and
two hose clamps (Fig. 13 “Hose connection on the container“)
•
The hose system, incl. suction tank must be sealed.
The connection of third-party storage tank systems (buried, above-ground) must be
expressly approved by KWB. Comply with the required adaptations for hoses with
Ø 60 mm and adapter pieces for the container.

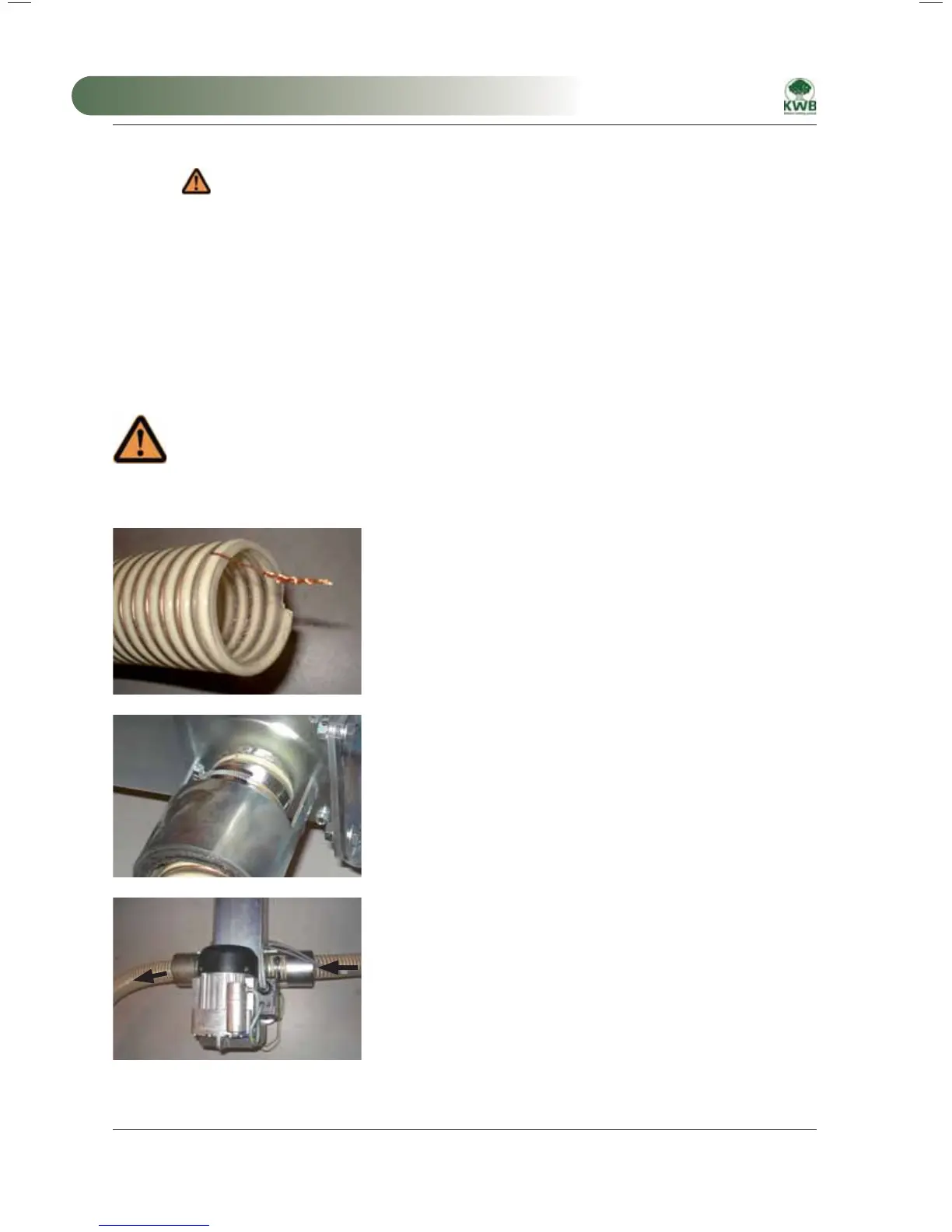

13.3.2 Hose connection and grounding (storage system)
Earth connection for the hoses
Strip the earth strand 5 cm.
Bend the earthing strand into the hose.
Earthing wire
Slide the hose clamp over the inner nozzle.
Slide the hose clamp completely over the inner nozzle.
The exposed earthing strand must be bent into the hose.
Tighten the hose clamps – the connection must be sealed and secured
so that it cannot be pulled off.
Hose connection
1
Connect the conveyor hose:
1 Return air hose (from the suction turbine)
2 Pellet hose (to the suction tank)
Hose arrangement
