4 Operation, specialist

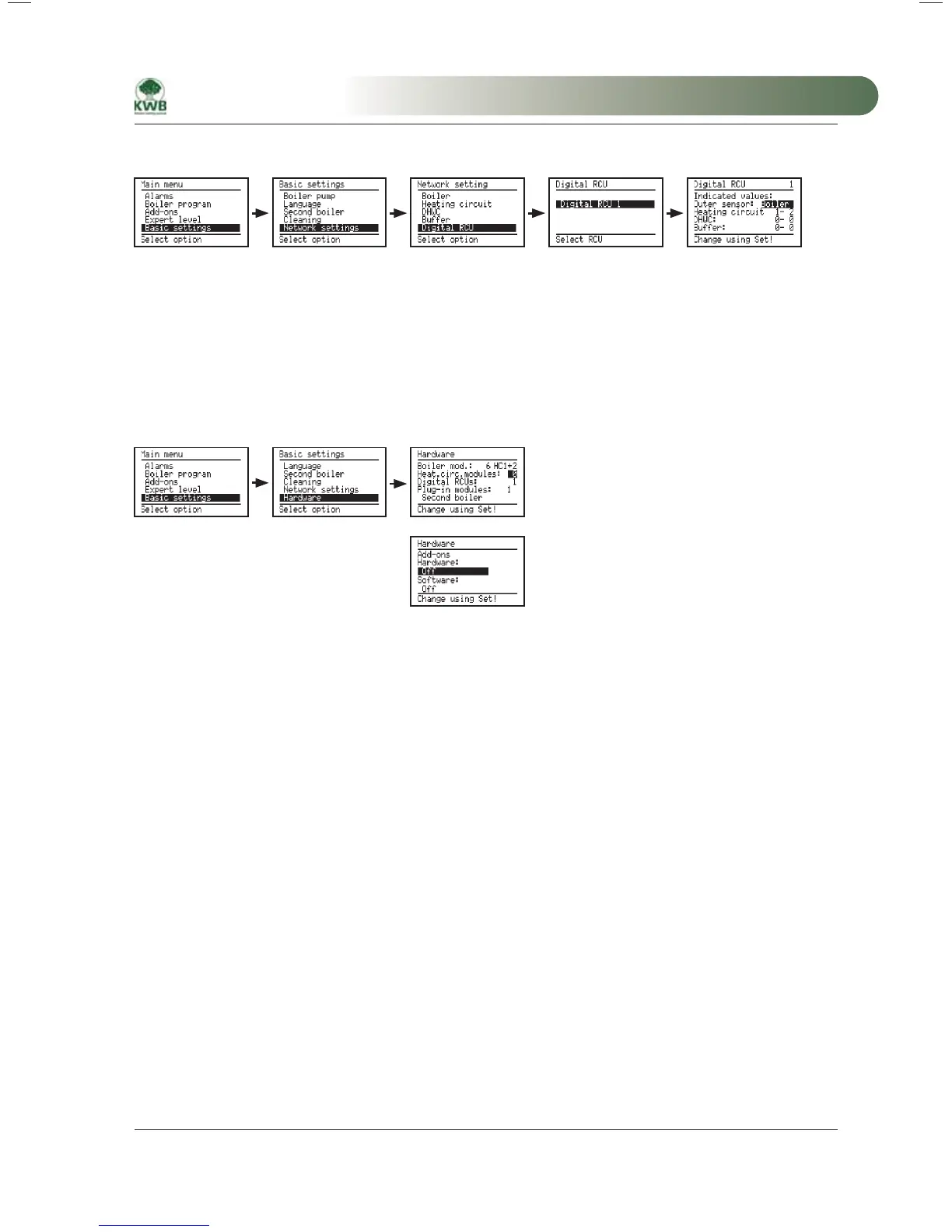

4.2.10.5 Digital remote control
Adjustment of the function units that are shown on the selected remote control unit, and that can be operated via
the selected remote control unit.
Outer sensor: Displayed outdoor temperature value (see point 4.2.10.2)
Heating circuit: Range of the heating circuits (closed number range). If no heating circuit should be displayed,
the setting “–” must be used. The number 0 is also available here. The same applies for
DHWC and buffer.
4.2.11 Hardware
Adjustment of the hardware modules that are available in the system:
Boiler module: Version number of the I/O module, configured heating circuits
Heating circuit
modules:
Set the number of heating circuit expansion modules (0 - 16). You must set a station number
on each module via the coding switch, starting with the number 1. The numbers must be
assigned in sequence without any gaps.
Dig. remote control
units:
Set the number of digital remote control units (0 - 34)
On each dig. remote control unit the station number must be set, starting with number 1.
The numbers must be assigned in sequence without any gaps. If the device is not detected
when it is inserted in the wall outlet ( supply voltage must be present), press the “Esc” button
5 times. Enter the access code “100” ( specialist level) to go to station number entry.
Plug-in modules: Some of the existing hardware components are detected automatically by the control unit
itself (plug-in module 1, heating circuit configuration on the boiler I/O module). The use of
the plug-in module can be set. Invalid entries are corrected automatically. Meaning of the
abbreviations:
Off Boiler I/O module without addition
HC 0 Single heating circuit (heating circuit 0) on plug-in module 1.
HC 0 – 2 Heating circuit 0 on plug-in module 1, heating circuit 1, 2 configured on the boiler I/O
module
HC 1 – 2 Heating circuits 1, 2 configured on the boiler I/O module, without plug-in module 1
SB Second boiler
Suction Suction conveyor unit
