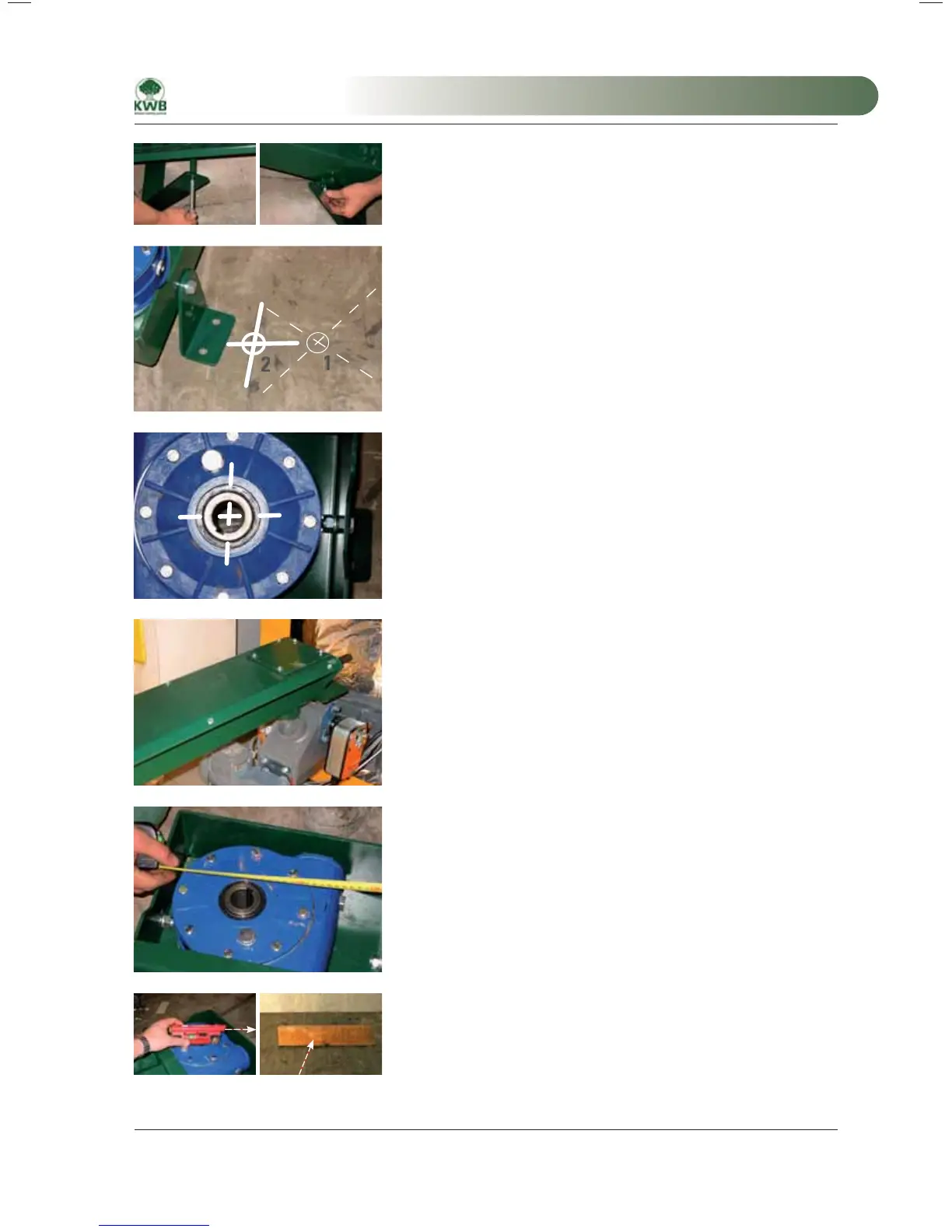

© KWB – Kraft und Wärme aus Biomasse GmbH IM Easyfire 10/2008 Page 139
17 Pellet stirrer
17 Pellet stirrer
3.) Install the trough support
Lift the worm tr
ough far enough that the distance between the drop shaft
and burner connection is approximately 8 - 10 cm. Slide the channel supports
under the worm trough, insert the threaded rod and bolt it on both ends.
Install the trough support
1
2
4.) Set up and fasten the stirrer
Lightly mark: Centre of the storage room (1)
Clearly mark: Target position, centre stirrer (2)
10 - 15 cm offset to the left
(Looking toward the boiler)
Info: The fuel is better conveyed to the FE trough due to the offset.
Fasten the stirrer
Align the hollow shaft to the target position, centre stirrer (2).
Align the stirrer
5.) System alignment
If, after aligning the worm trough, the drop shaft is no longer concentric
with the burner connector on the pellet boiler, you must either slide the
boiler or the worm trough far enough that the drop shaft and fill nozzle
are positioned one above the other.
Align the system
If the stirrer is shifted again for alignment then the distances to the
centre of the stirrer (mid-point of the hollow shaft in the worm gear unit)
must be re-measured and set up and arranged in the storage room.
Optimisation, stirrer position
To determine the optimal height of the worm trough, position the laser
flat on the worm gear unit. Set up a board at a distance of 150 cm from
the centre of the stirrer and lift the stirrer until the laser point at the
lowest position is approximately 3 cm away from the floor.
Positioning the stirrer height
