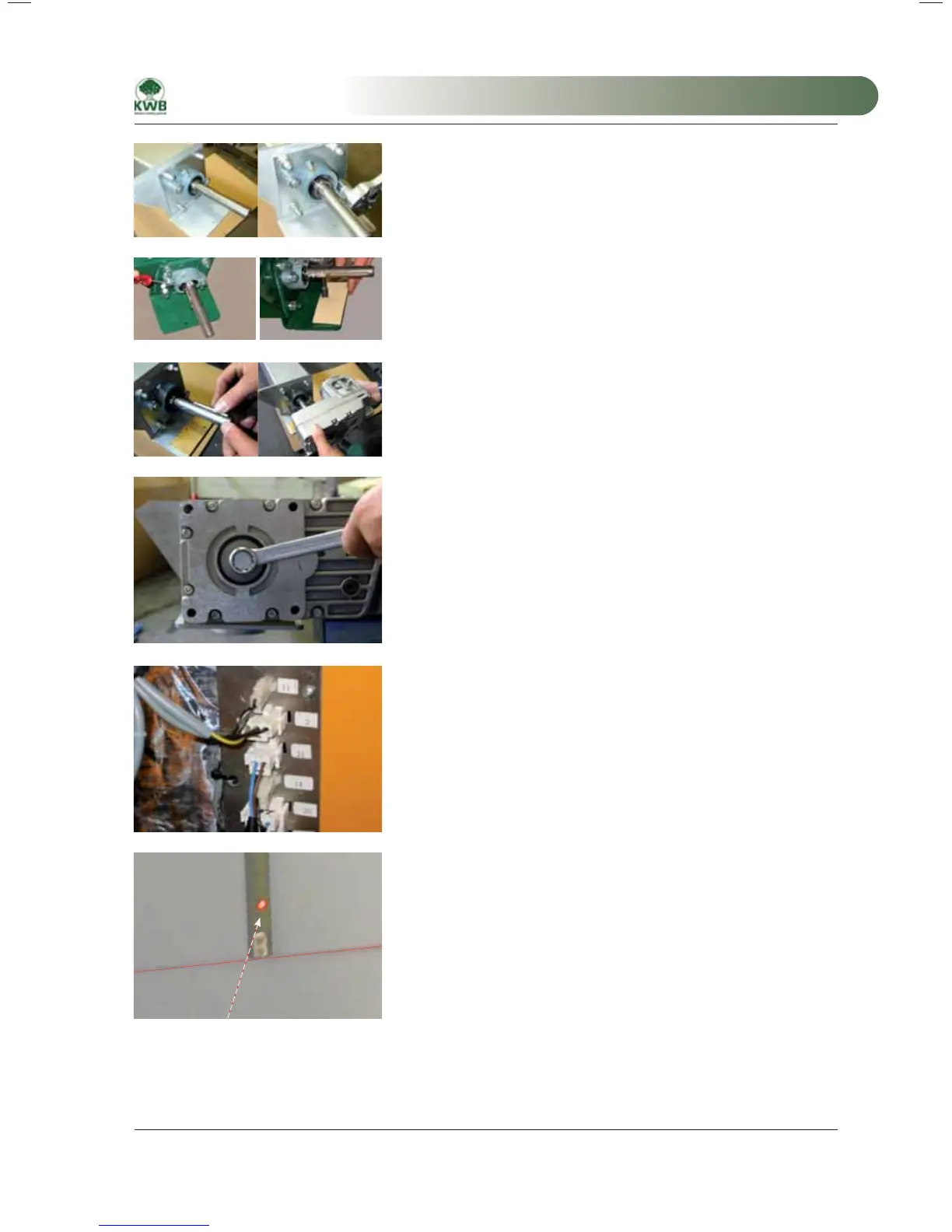

17 Pellet stirrer
Remove the feather keys and slide the pre-assembled bearing onto the
shaft. Bolt the facing side cover on the worm trough.
Install the bearing flange
Re-tighten the worm bolts so that the bearing is firmly connected to
the shaft.
Bond the insulating plate to the flange with silicon.
Preparation, motor installation
9.) Install the drive motor
Carefully knock the feather key into the shaft groove with a rubber
mallet. Slide the motor onto the shaft end, in this process ensure that
the direction of rotation is correct.
Install the drive motor
Use the bolt and large washer to fasten the motor. Tighten the
connection.
Fix in place axially
10.) Cable the fuel extractor
Connect the fuel extractor connector to the connector strip on the
boiler.
Connect the fuel extractor
11.) Mark the sloping floor
Position the laser on the worm gear unit in the direction of the boiler
and measure the distance from the point of the laser to the upper edge
of the worm trough.
Use the laser to mark two points on each storage room wall and apply
the previously measured distances downward at right angles to the
stirrer plane. Connect the points with a levelling rod or a chalk line.
Mark the sloping floor
