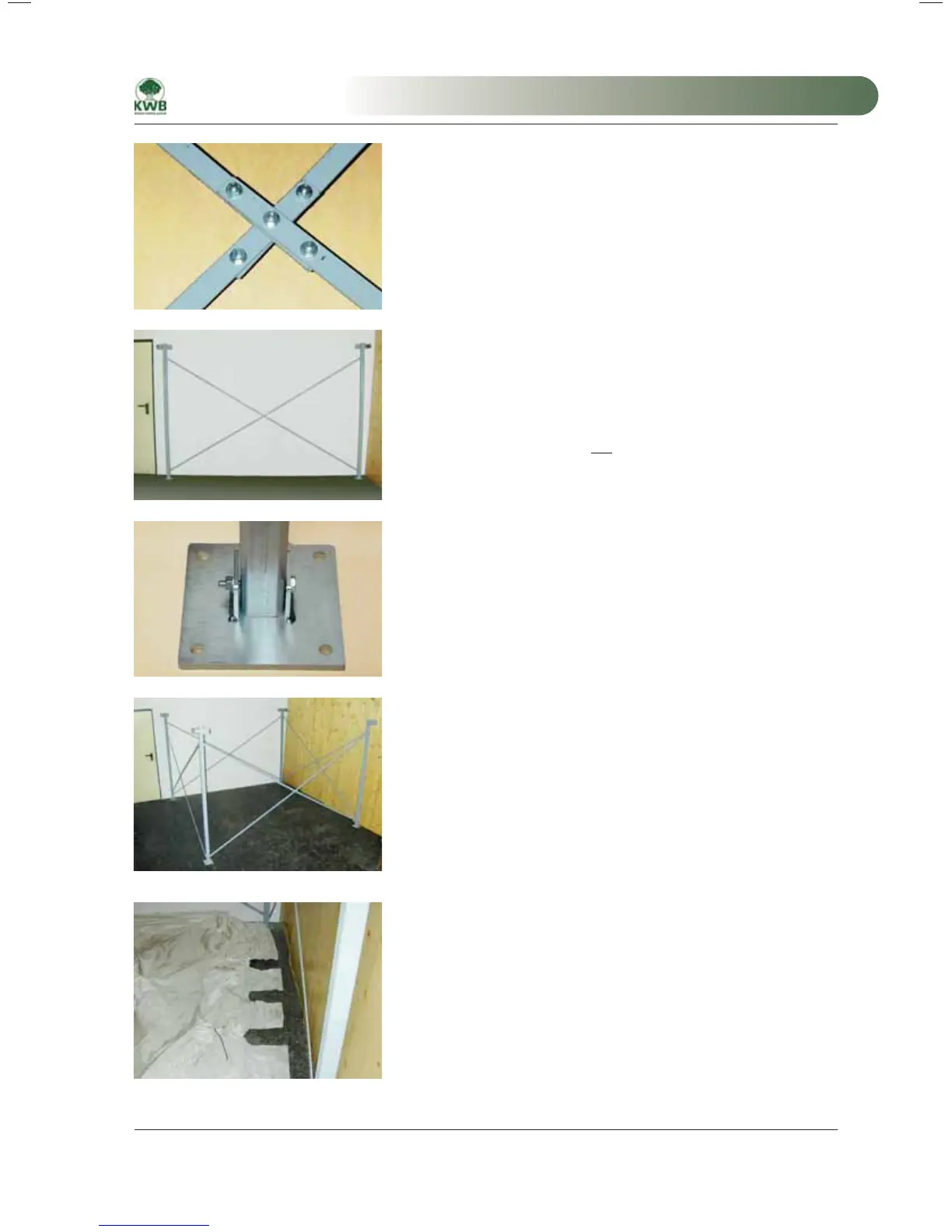

9 Fabric tank
Now you can bolt the two middle bores together. For this use
1 M10 x 35 bolt, 1 M10 washer and 1 M10 nut.
Cross-brace
3.) Connect the vertical support units
When all bolts have been firmly tightened stand up the first bolted
together vertical support unit and lean it against the wall.
Prepare the second vertical support unit in the same manner and place
it on the opposite end of the ro
om.
Connect the vertical support units
4.) Mount the saddles for the vertical supports
Slightly lift one vertical support of the fabric tank and place the saddle
with the plate facing down on the floor under the vertical support. Now
place the vertical support in the opening provided in the saddle. Slide
the M10 x 80 lock bolt through the bore and tightly bolt the saddle to
the vertical support with the M10 shim and M10 nut. Do the same for
all four vertical supports.
Install the base plate
Now bolt one finished vertical support unit together with a completed
brace top and bottom. To do this use one M10 x 35 bolt for each
connection.
Cross the two braces and bolt the loose ends to the second vertical
support unit . Here as well use 1 M10 x 35 screw for each connection.
Connect the crossed braces in the middle with 1 M10 x 35 screw,
1 M10 shim, and 1 M10 nut.
Repeat this process on the other side.
After bolting together, the vertical supports of the frame will stand on
their own. Anchor the vertical supports to the stable floor.
Frame
5.) Prepare the fabric tank
Place the fabric tank in the middle of the tank frame and turn the fabric
tank until the extractor nozzle (large central hole) points towards the
floor, and the loops for the horizontal supports are on top.
Turn the fabric tank 90° until the fill nozzle points to the location where
the filling system will be installed later.
Fabric tank preparation
MA-Easyfire 10.2008_EN.indd 93MA-Easyfire 10.2008_EN.indd 93 30.03.2009 13:30:17 Uhr30.03.2009 13:30:17 Uhr
