2NC/2NF/2NG/2NN/3P7/3P8/3P9
1-5-36

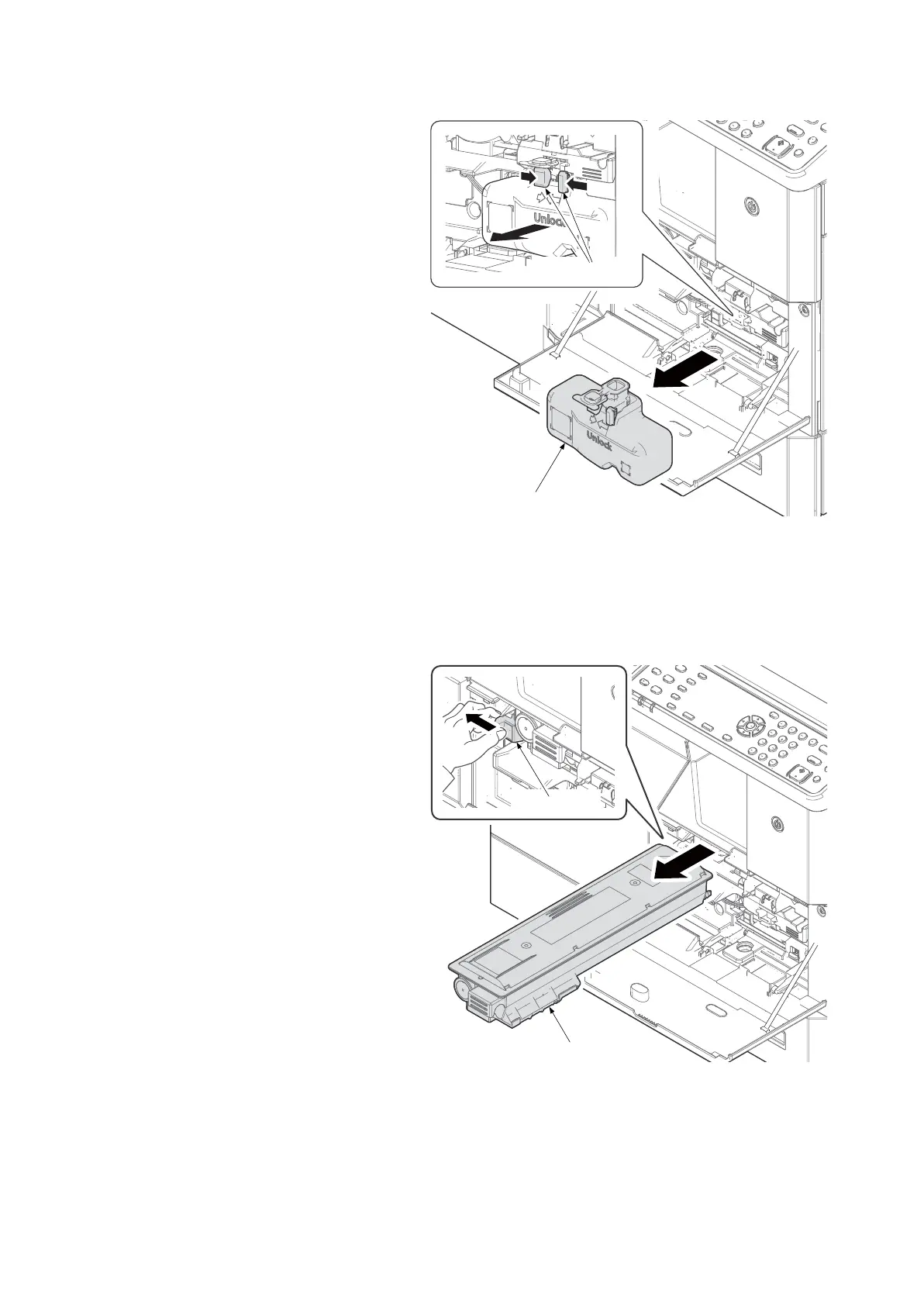

2. Release it by pinching the lock lever
and then remove the waste toner box
forward.
Figure 1-5-61
3. Release the lock lever by sliding to left
direction.
4. Pull out the toner container.
Figure 1-5-62
Waste toner box
Lock levers
Toner container
Lock lever
