Laborie NXT Pro Owner’s Manual LBL-00146, MAN2010 115
Table 13: UPP Puller NXT LED Signals
6.10 T-DOC Air-Charged Catheters
The T-DOC NXT Air-Charged Catheter series are part of the next-generation Laborie
systems designed for use during urodynamic studies (Figure 101).

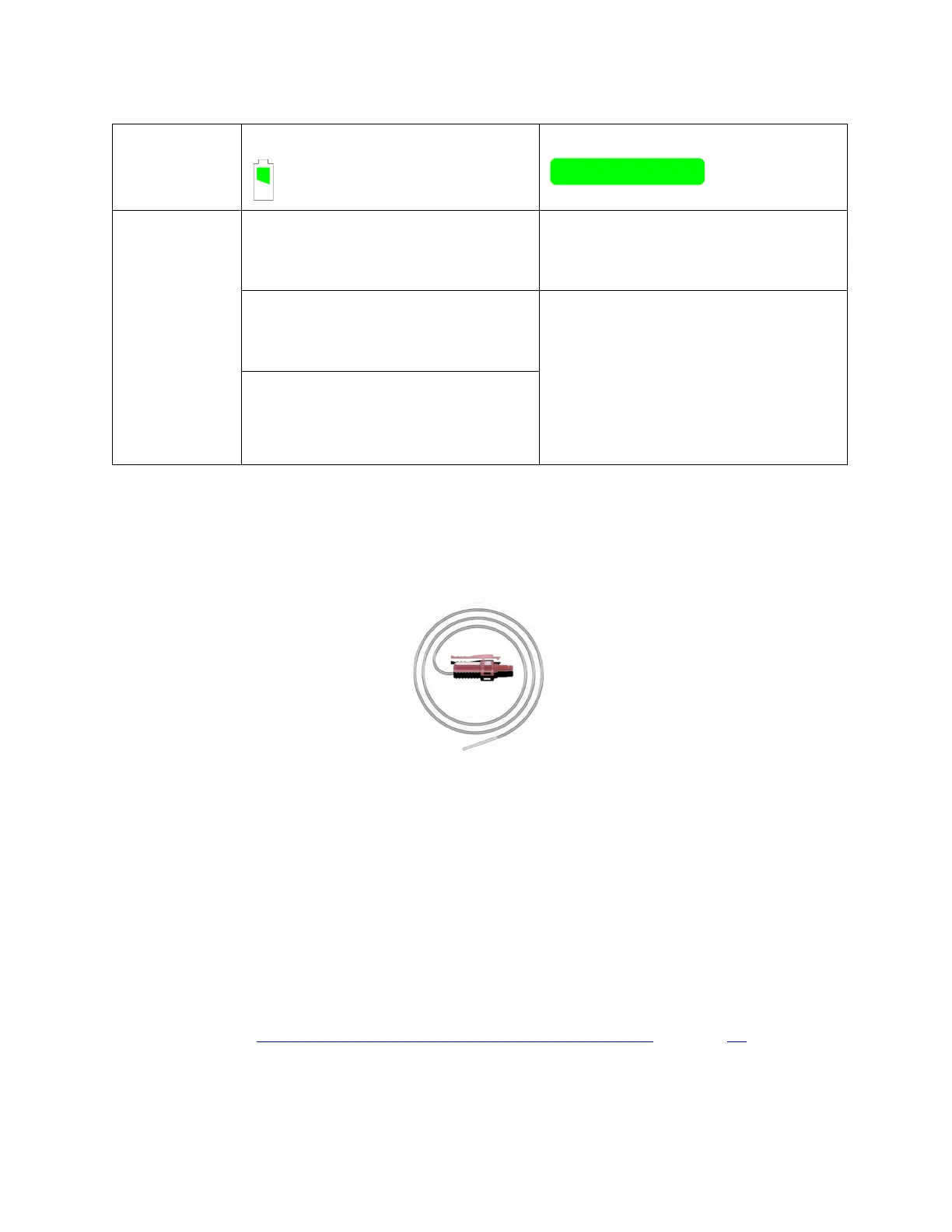

Figure 101: T-DOC NXT Air-Charged Catheter
• The T-DOC Air-Charged Catheters are single-use catheters intended for
urodynamic pressure monitoring. T-DOC Air-Charged Catheters are provided
sterile and must not be reused, reprocessed, or resterilized.
• The T-DOC Air-Charged Catheters feature a connector developed for use with the
PIM NXT.
• The connector is inserted into the charging cavity on the PIM NXT, and a small
amount of air is pumped through the catheter lumen(s) into the air balloon
located at the distal end of the catheter. A tactile click indicates that the
connector is securely locked in the PIM NXT.
• When external pressure is applied to the balloon, the pressure transducer
registers this pressure differential and sends the data to the Roam NXT. For
information on how to set up the T-DOC Air-Charged Catheters, refer to the
section Setting Up Consumables and Preparing the Patient on page 25
.
• To disconnect the catheter from the PIM NXT, press down on the thumb tab and
gently pull the connector from the PIM NXT.
Battery Status
UPP Puller NXT Status
UPP Puller
NXT
Breathing Green: Sufficiently charged or
charging.
Breathing Green: Ready
Breathing Green - Fast: Sampling or
actuator is in motion.
Breathing Amber: Battery is low (less
than 60 minutes of operation).
Breathing Amber: Puller is not ready for
sampling or motion.
Breathing Blue: Firmware upgrade is in
progress.
Solid Red: Fault
Lack of illumination: Puller is sleeping or
shut off.
Lack of illumination: Empty/Sleep mode
(No declared battery capacity)
